1963 to 1966 GM Trucks Dual 12 inch Fan Shroud for ColdCase GMT555A Raw Aluminum or Powder Coated

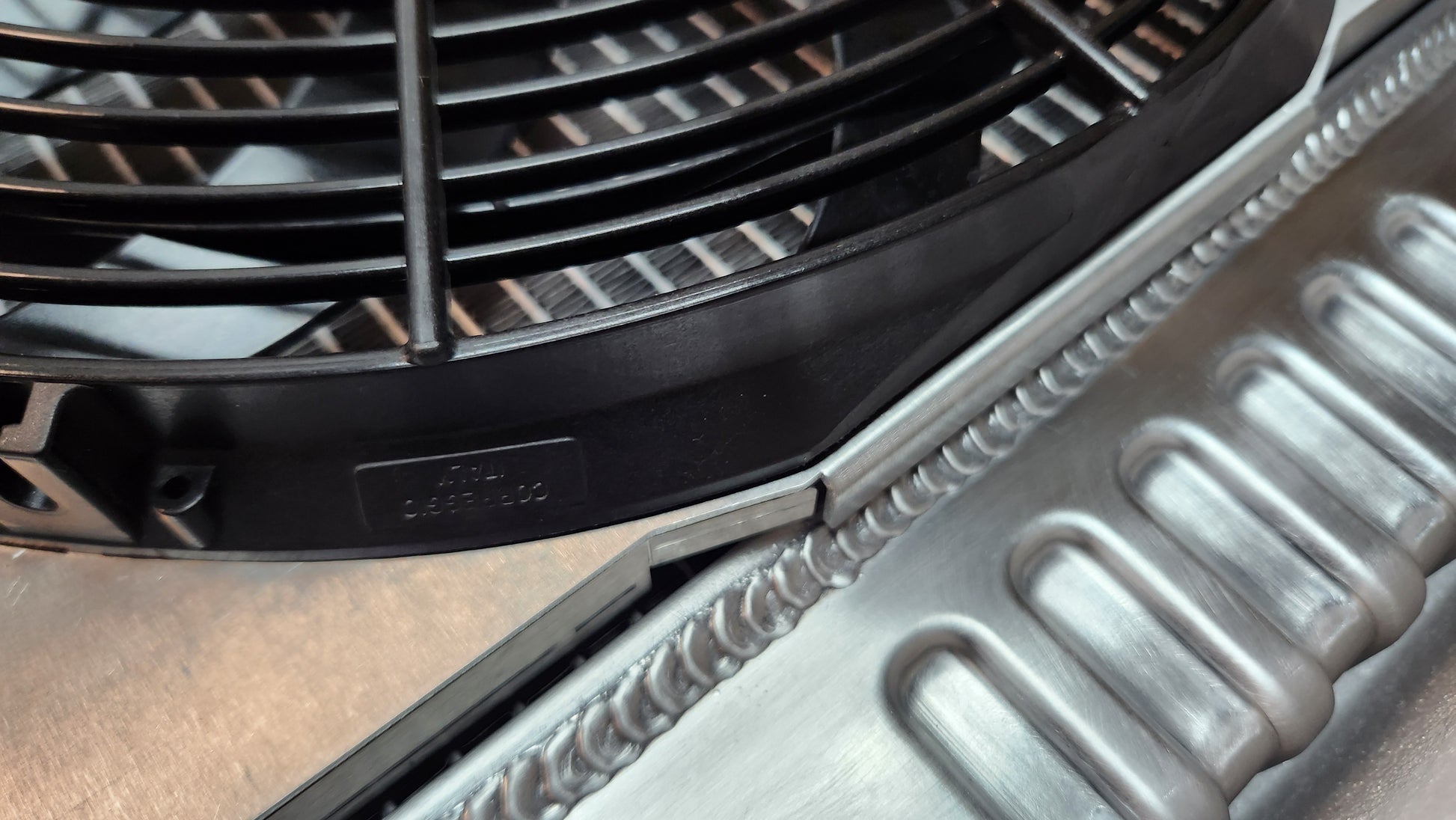

Designed for 1963 to 1966 GM Trucks with ColdCase Radiator GMT555A to mount Dual 12" fans, either Spal Part # 30102029 or Proform 12" Brushless fan part #67034 (featuring Soft Start) and SIX Rubber flap doors, Spal part #30130012. Custom Designed by Monty, manufactured and drop shipped with a raw finish or powder coated, by SendCutSend.  All versions are made to order.

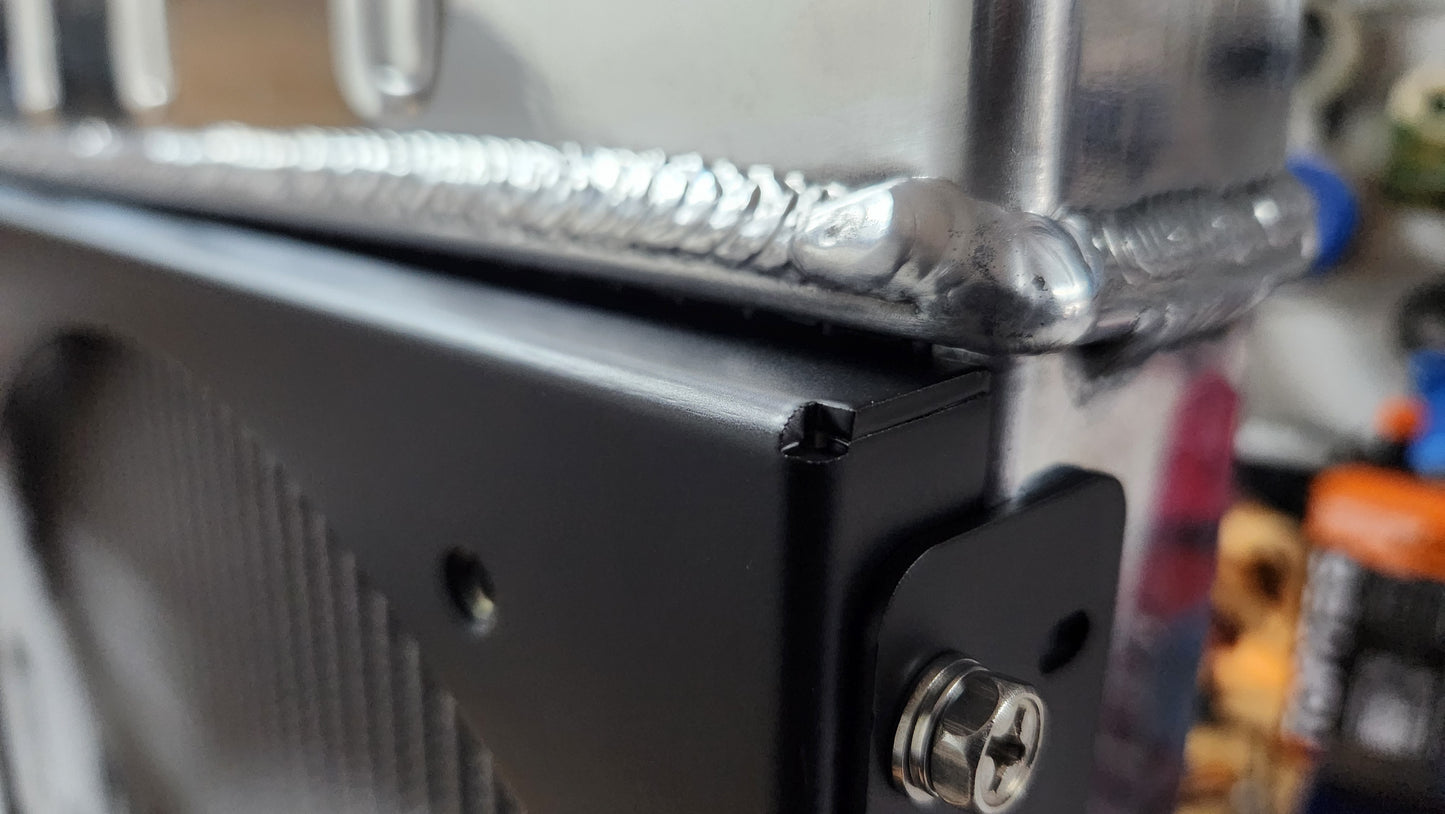

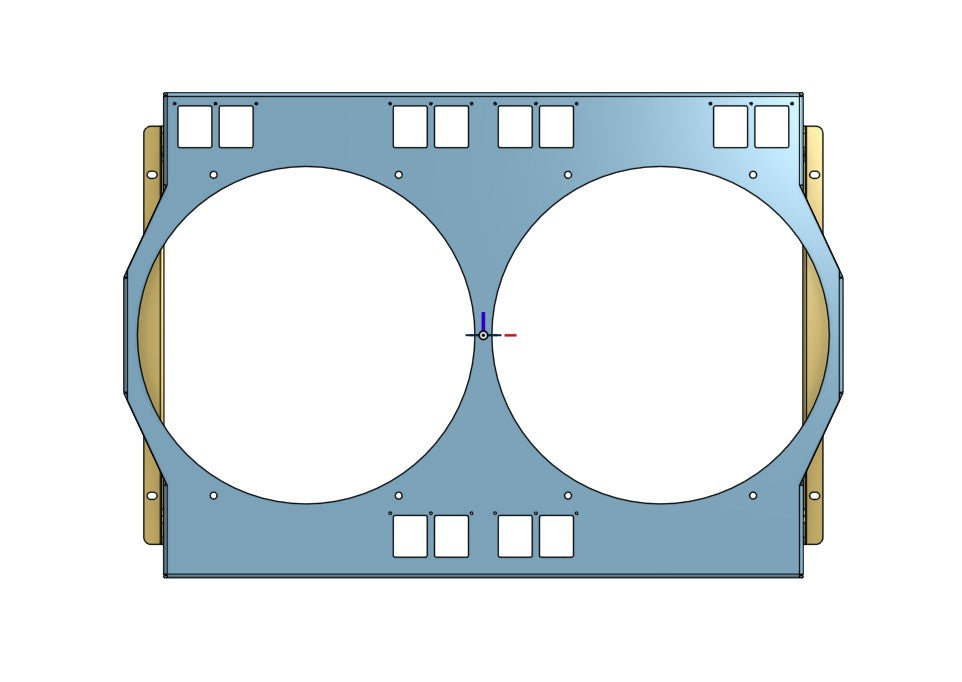

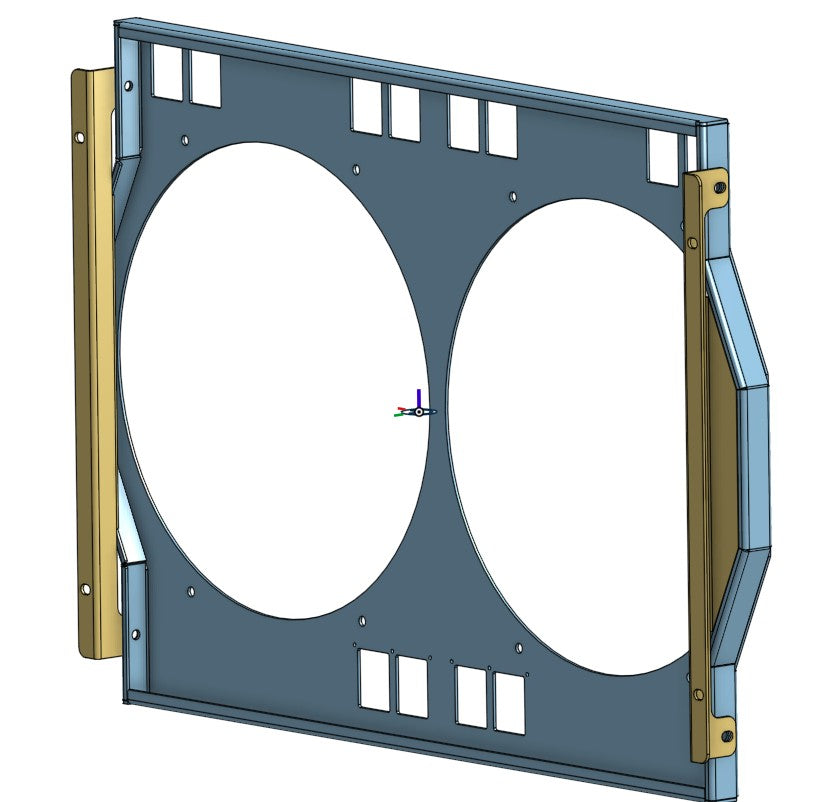

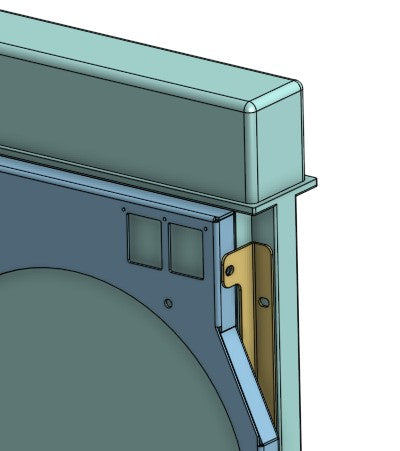

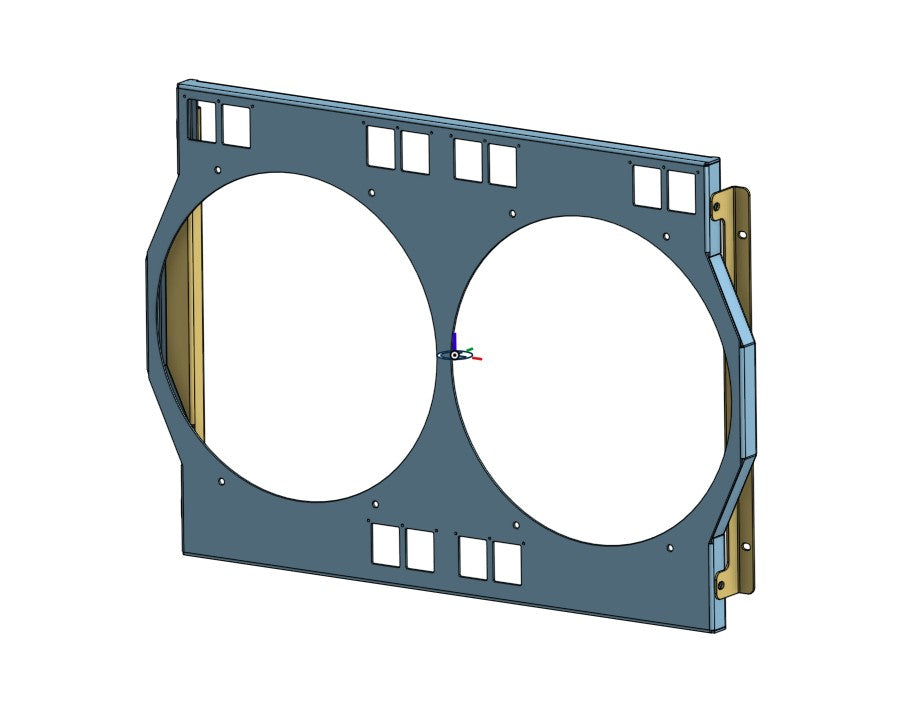

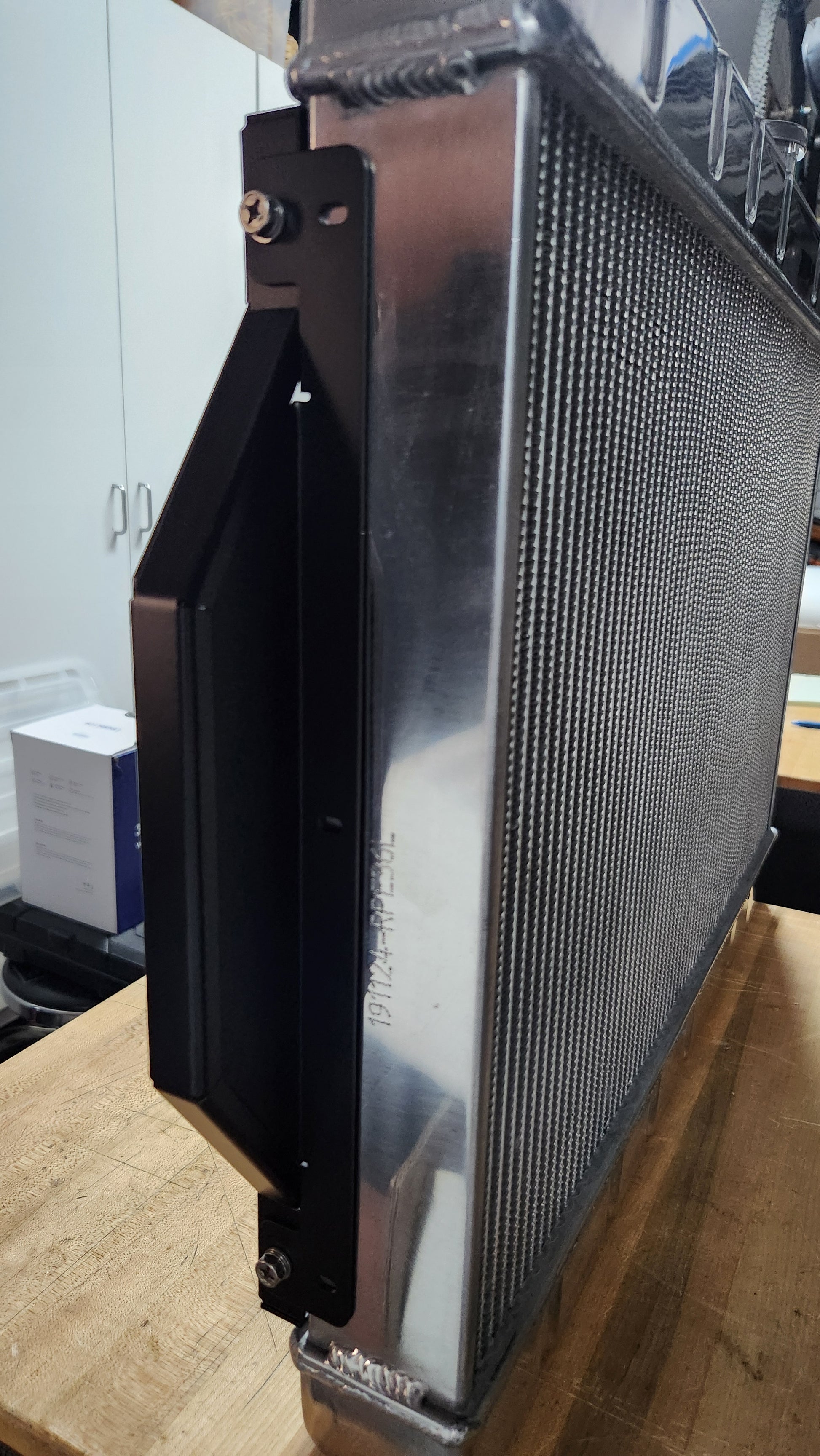

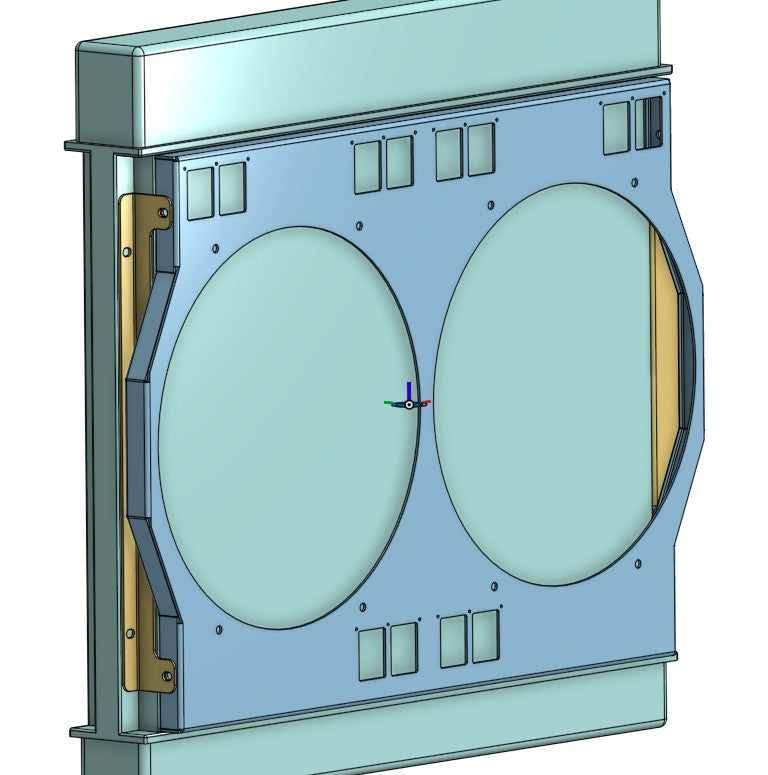

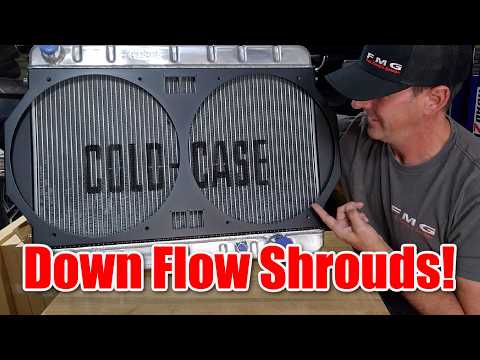

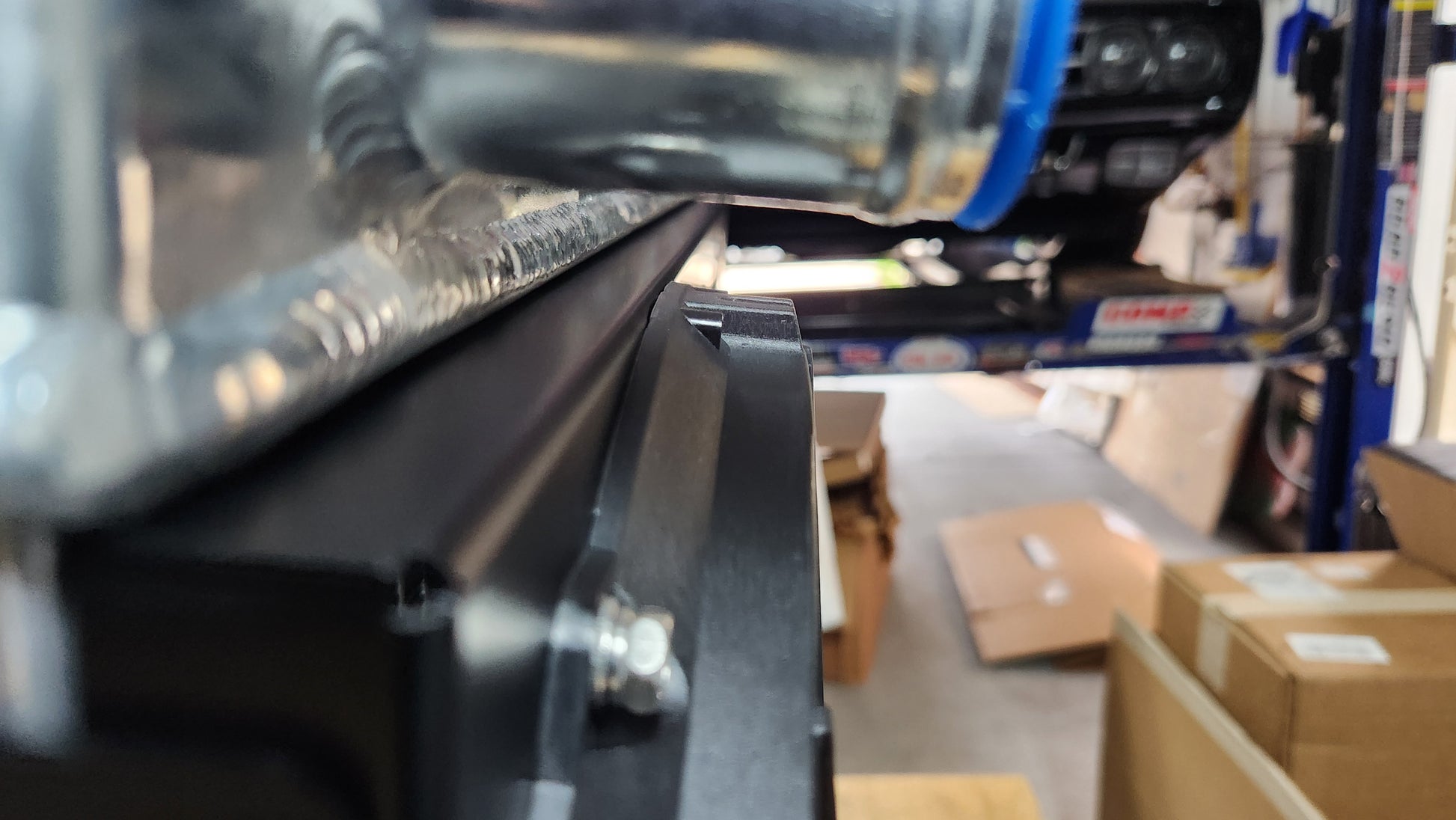

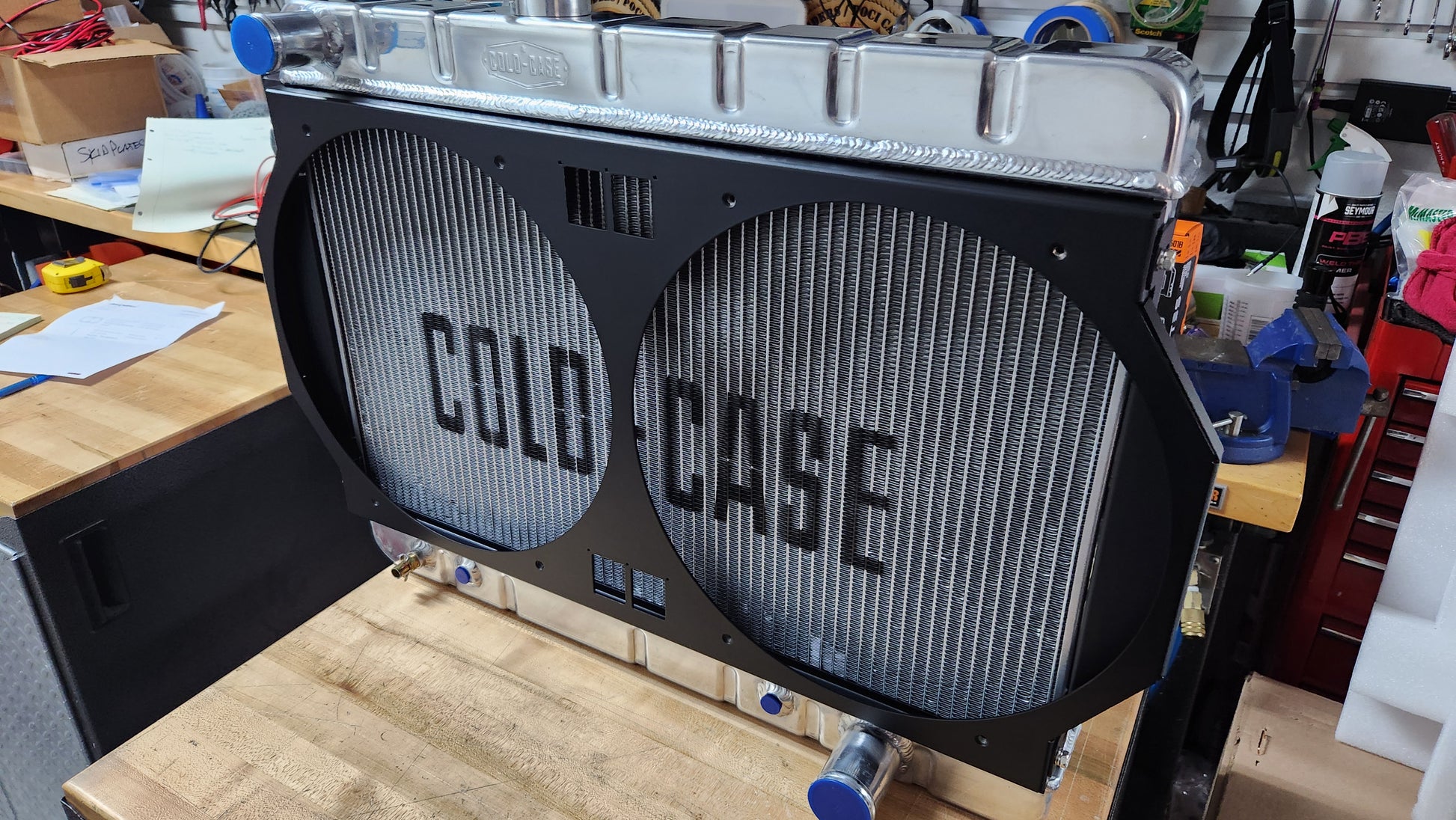

This shroud is a three piece design due to the "Down Flow" style radiator.  This particular shroud design is depicted as CAD Renderings.  The pictures shown are a similar design Matte Black Powder Coated Shroud for 67 GTO's that show the fastener locations on the sides of the shroud, but with a different mounting bracket.  There are a total of 12 threaded holes, 8 for the fans, and four for the side brackets.  All are M6x1.  I highly recommend using 6x1 Rivnuts in the radiator uprights to mount the brackets.

Fans, flap doors, and fasteners are NOT included.  Please do an internet search for the flap door part number, pricing will range from $1.49 to $4.00 each.  The fastener is a M6x1, 16mm long.

Raw Aluminum lead time is around 1 week to ship, where Powder Coated lead time is around 2 weeks to ship.  Both are dropped shipped directly from SendCutSend.  All drop shipped sales are final.

The Raw Aluminum version will have witness marks, as pictured near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.
