1966 to 1967 Chevrolet Chevelle - Dual 14 inch Fan Shroud - For ColdCase CHE542 Raw Aluminum or Powder Coat

Custom Dual 14" Fan Shroud for 1966–1967 Chevrolet Chevelle | Cold Case CHE542

Keep your classic Chevelle running cool with this precision-engineered fan shroud — custom designed by Monty and manufactured by SendCutSend. Built specifically for the Cold Case Radiator CHE542, this shroud mounts dual 14" fans for maximum airflow and cooling performance.

Note: If you have the original Big Block with stock pulleys, you will most likely need a lower profile fan on the Driver's side, with a 2.5" mounting height, like the Spal Medium height fan 30101509 — Buy here

While the standard Cold Case shroud is a solid choice, our design takes cooling performance to the next level—ideal for high-performance builds, hot climates, or anyone who demands the absolute best from their cooling system.

Compatible Radiator Models

Fits Cold Case Radiator models: CHE542, CHE542B, CHE542A, CHE542AB

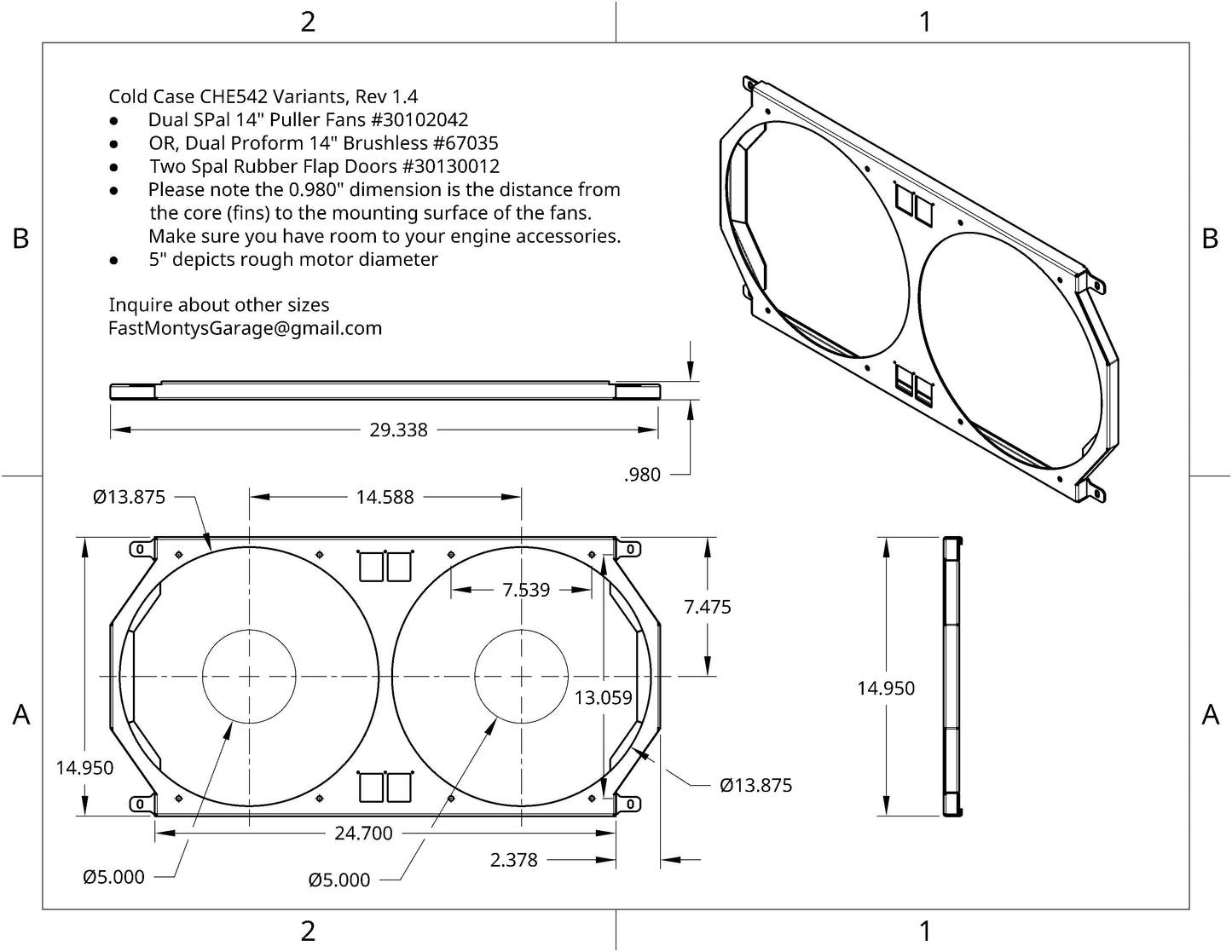

⚠️ Important Fit Note: There are two CHE542 flange variants — Slotted and Non-Slotted. This shroud fits the newer Non-Slotted version only. Check the detail drawings before ordering. The fan mounting surface sits 0.980" from the radiator core.

Need fans too? Save around 5% on the entire kit.
Choose your shroud and fans together with our Shroud & Fan Kit Builder — Build your kit here.

Fan Compatibility

• Spal 14" Puller Fan — Part #30102042 — Buy here
• SPAL 14" Medium-Profile Puller Fan — Part #30101509 — Buy here. Lower-profile option for driver's-side clearance on original Big Block engines with stock pulleys; see the clearance note above.
  • SPAL 2-Pin AMP Jumper Wire Harness / Pigtail (FR-PT-PKG) — Buy here

• Maradyne M142K (14" Brushed High Performance Puller) — Buy here
• Proform 14" Brushless Fan — Part #67035 (features Soft Start — lowest profile around the motor)

Not sure which fan to choose? Check out Monty's independent fan CFM test results for real-world performance data.

Finish Options

• Matte Black — In stock and ready to ship. Includes twelve M6x1 fasteners. Lowest-cost powder coated option.
• Raw Aluminum — Made to order (~1 week lead time). Ships directly from SendCutSend. May have minor witness marks near bends — easily cleaned with a Magic Eraser or scuffed with Red Scotch Brite for a uniform look. Painting is also an option.
• Custom Color — Made to order (~2 weeks lead time). After ordering, Monty will email you to confirm your color selection.

What's Included / Not Included

• ✅ Fan shroud
• ✅ Twelve M6x1 (16mm) fasteners (Matte Black Powder Coated version only)
• ❌ Fans, flap doors, and fasteners are NOT included for other variants
  • TWO Rubber Flap Doors, Spal part #30130012
    • Ordering a Raw or Custom Powder Coated shroud? SPAL Rubber Flap Door 30130012 — Buy here


Shipping & Lead Times

• Matte Black: When In stock — ships promptly
• Raw Aluminum: ~1 week lead time — drop shipped from SendCutSend
• Powder Coated / Custom Color: ~2 weeks lead time — drop shipped from SendCutSend

Note: This is an aftermarket shroud designed to work with the Cold Case CHE542 radiator. It is not manufactured by Cold Case Radiators. Fans and installation accessories sold separately. Lead time for Raw Aluminum is around one week. If Powder Coated, lead time is around two weeks.

Looking for a deal? Check out Monty's Discounted Parts & Blems for working shrouds with minor cosmetic blemishes at a reduced price.

See our Radiator Fan Shroud Installation Guide for step-by-step instructions.
