1966-67 Pontiac A-Body Dual Spal BRUSHLESS 14 inch Fan Shroud for ColdCase GPG34AS

Keep your Pontiac running cool with this precision-engineered fan shroud for GPG34AS models only.

Upgrade your cooling system with our custom-designed shroud for the Cold Case GPG34AS radiator and Spal Brushless 14" 'drop-in" fans that delivers measurably better cooling efficiency than the standard Cold Case shroud design. Through optimized fan sizing and precision-engineered airflow channels, this shroud maximizes the contact between your fan and radiator surface—ensuring every CFM of airflow does its job.

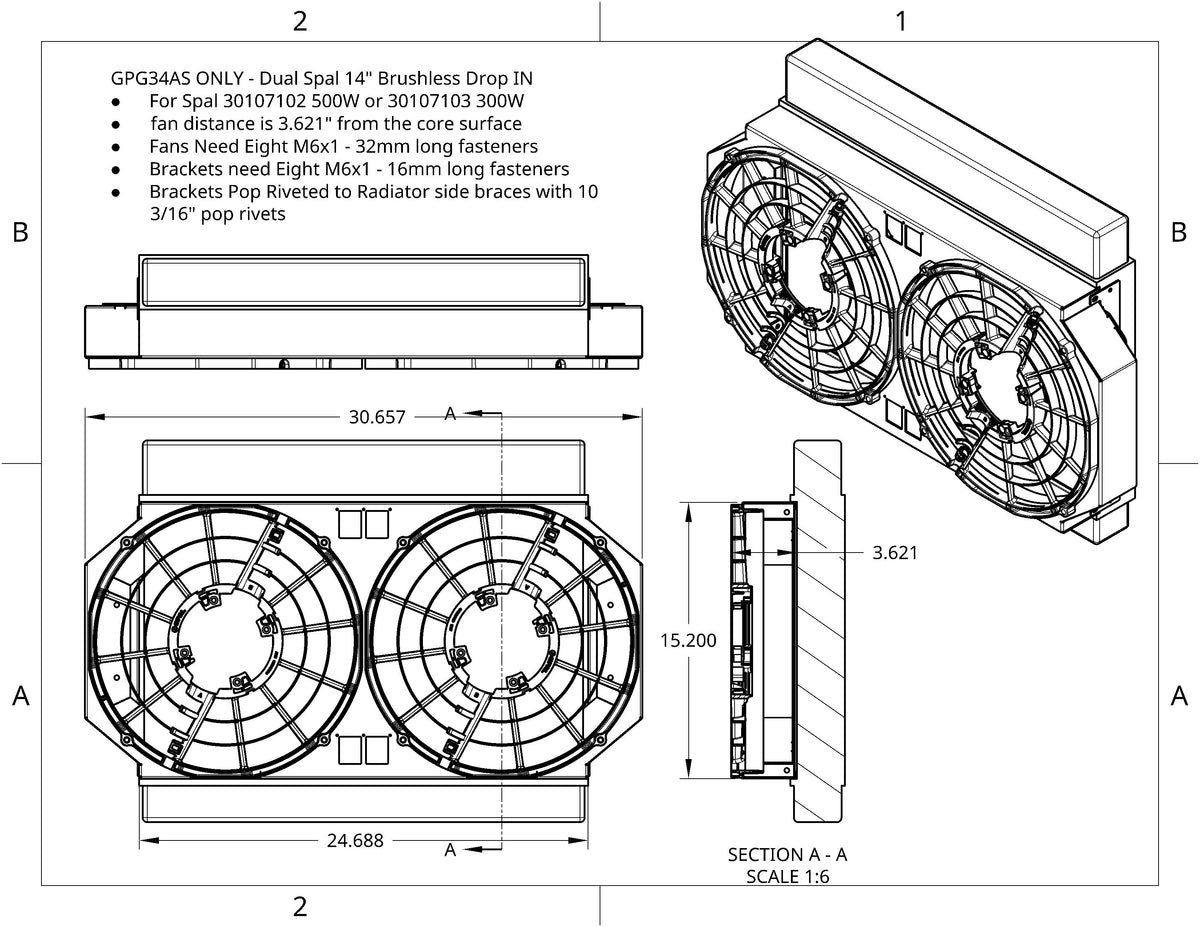

NOTE: This does NOT fit the standard GPG34A models. Please compare your radiator dimensions with the attached diagram. If your radiator is wider, please see the standard GPG34 Standard Listing

While the standard Cold Case shroud is a solid choice, our design takes cooling performance to the next level—ideal for high-performance builds, hot climates, or anyone who demands the absolute best from their cooling system.

Key Performance Advantages:

• Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.
• Optimized Fan Size: Direct fit "drop in" Spal Brushless 14" fans
• Not sure which fans to use? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.
• Better Fitment: Custom-contoured to the Cold Case Radiator for a truly integrated three piece cooling solution, overlapping the side brackets, accommodating larger fans.

Compatible Fan Part Numbers (14" Fans):

• Spal 30107102 Brushless (500 watt "drop in" style) VA116-ABL505/105A (Includes Harness)
• Spal 30107103 Brushless (300 watt "drop in" style) VA116-ABL324P/N-105A (Includeds Harness)


Necessary Accessories for Installation (Not Included):

• Fan mounting hardware - Eight M6x1 - 32mm long

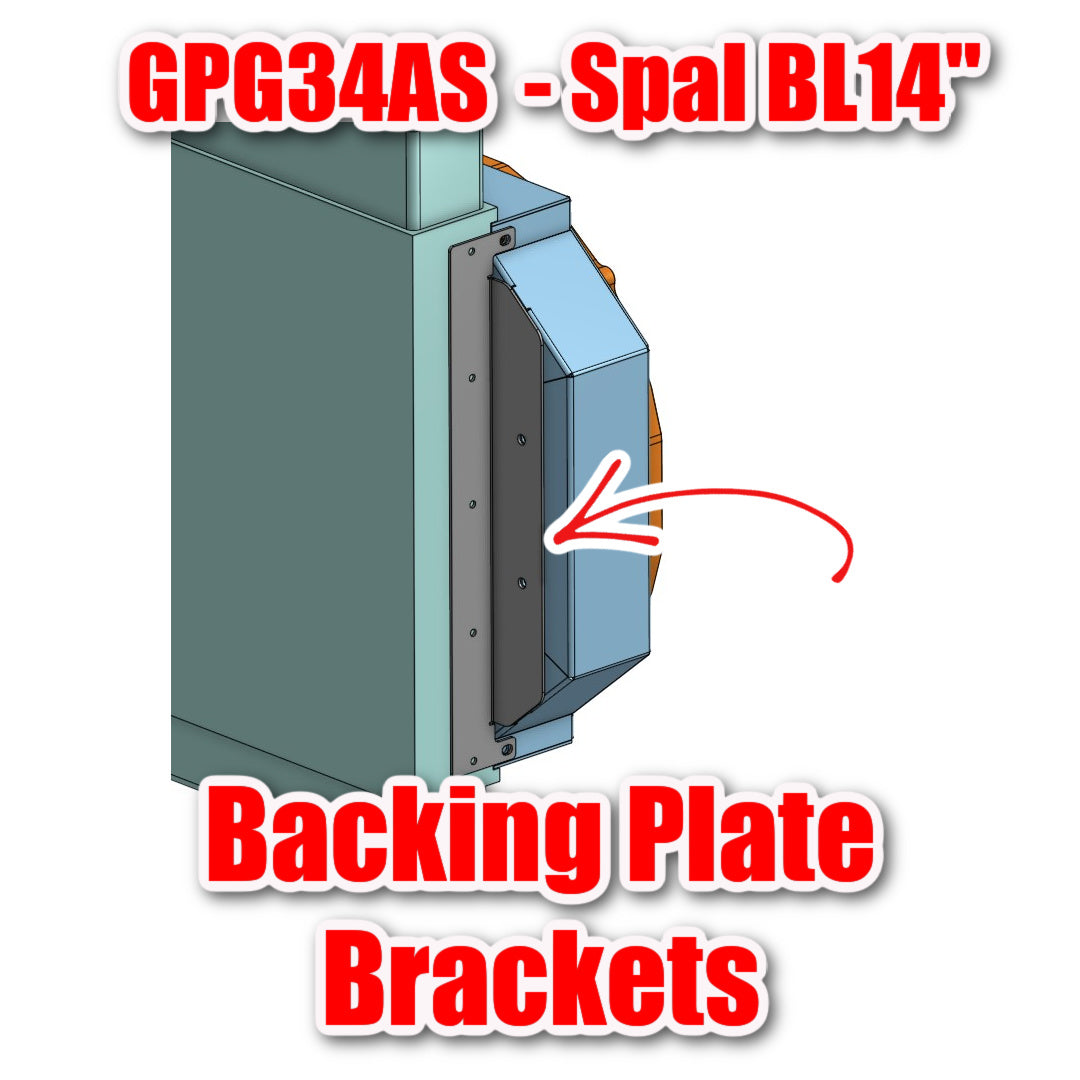

• Side Brackets - Eight M6x1 - 16mm long
• Ten 3/16" pop rivets to secure side brackets to the radiator
• Two Rubber Flap Doors, Spal part #30130012 (Included with Matte Black Powder Coated Shrouds)
  • Ordering a Raw shroud? Flap doors are here; Link to Rubber Flap Door part Number 30130012

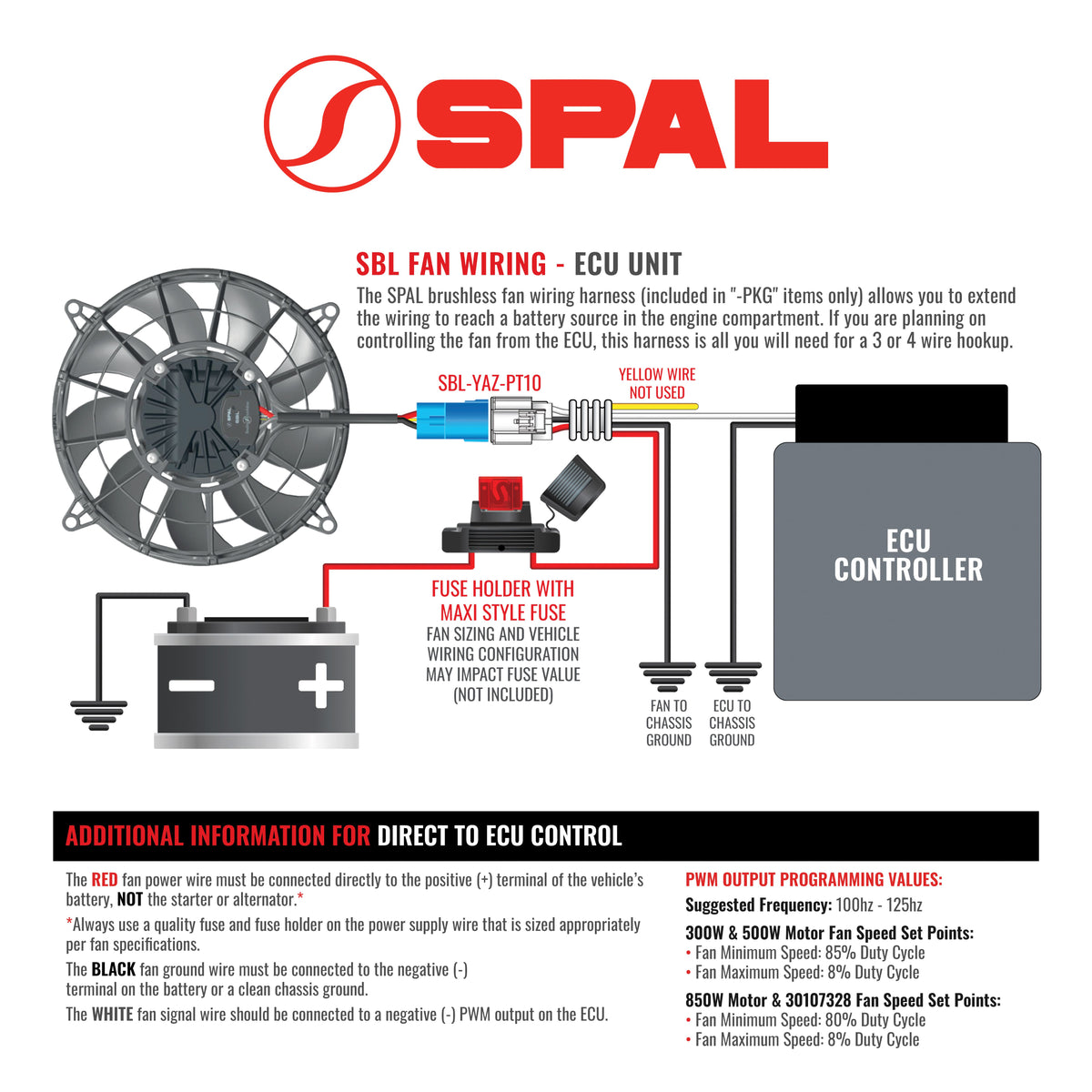

• Spal Fan Wiring Harness
• PWM Control or Spal Thermostatic switch and harness here;
• See the "Down Flow Shrouds" video for installation tips.

Specifications:

• Fits 1966 to 1967 Pontiac Tempest, Lemans, and GTO,
• Designed specifically for Cold Case radiator model GPG34AS "Wide Tube" NON Air Conditioned cars.
• Please double check your radiator dimensions with the attached radiator dimension sheet. If yours does not match, let us know!
• Accommodates 14" Spal Brushless "Drop In" fans, inquire for different fans not listed

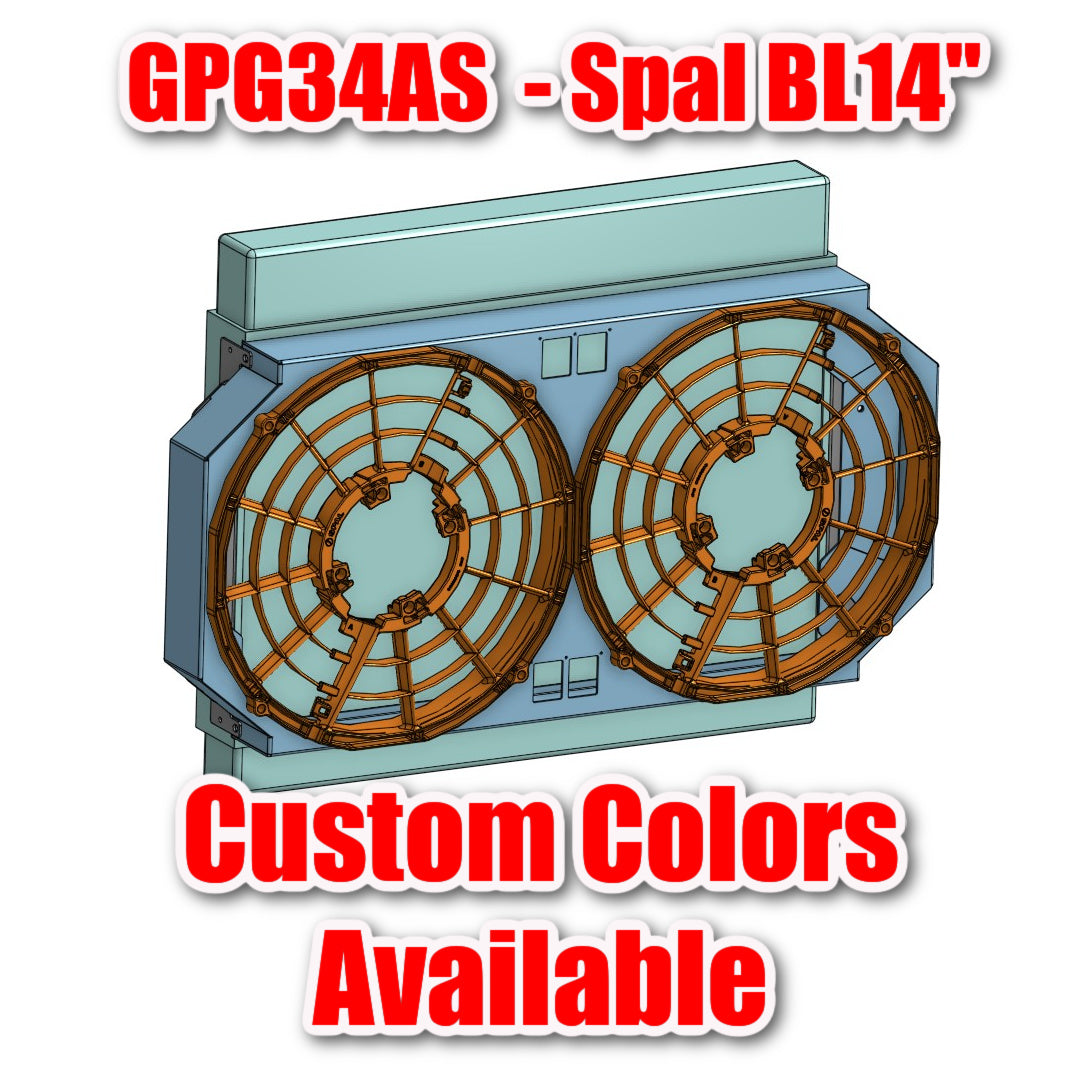

• Available in powder coated black or raw aluminum finish

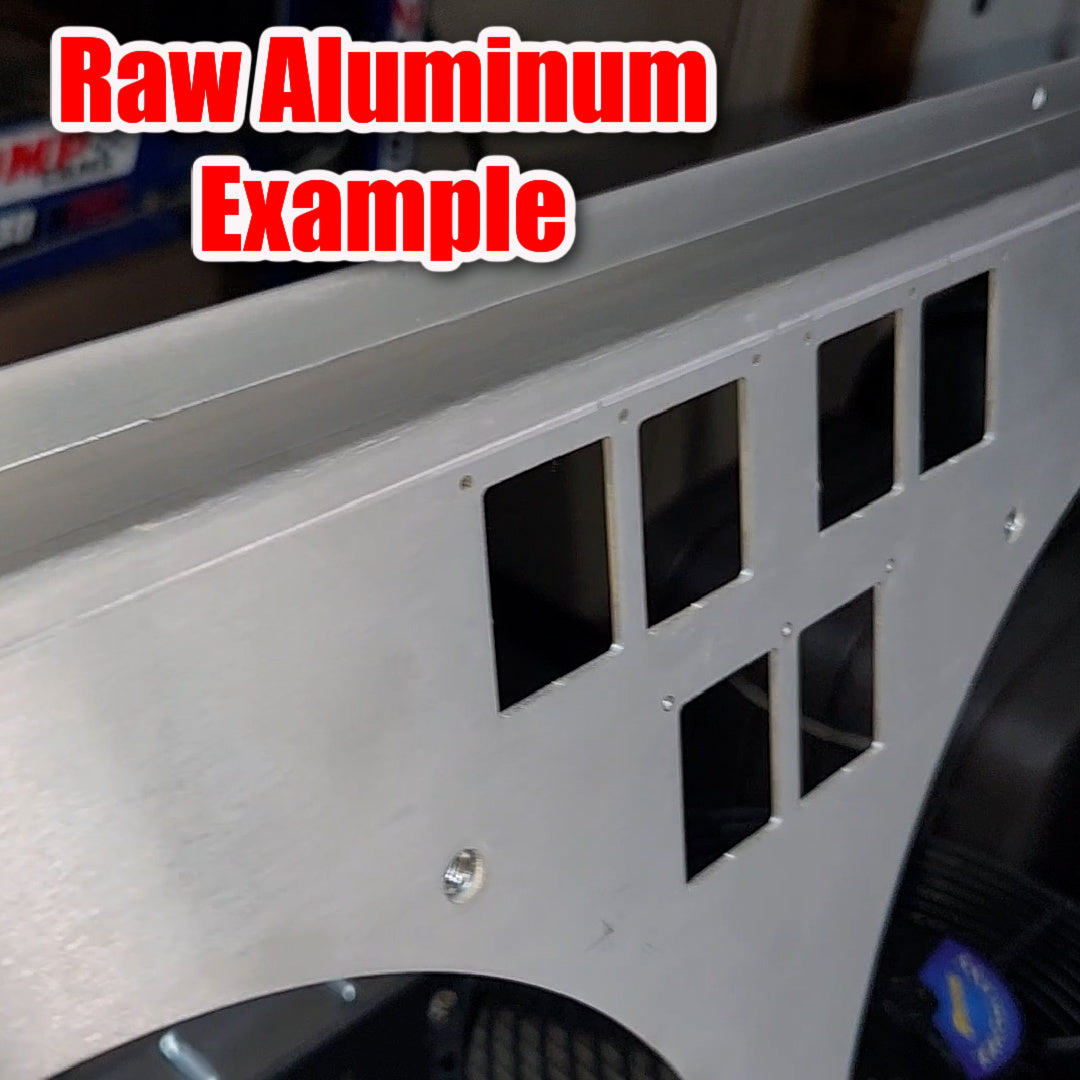

  • Raw Aluminum does have witness marks that can be cleaned with Scotch Brite, or a Magic Eraser
• Precision CNC-cut from aircraft-grade aluminum
• Welded Seams for strength
• Made in the USA

Note: This is an aftermarket shroud designed to work with the Cold Case GPG34AS radiator. It is not manufactured by Cold Case Radiators. Fans and installation accessories sold separately. Lead time for Raw Aluminum is around one week. If Powder Coated is out of stock, please order, as we do not replace stock without an existing order, lead time is two weeks.

Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.

See our Radiator Fan Shroud Installation Guide for step-by-step instructions.
