1966 to 1974 Mopar A, B, C, E Body's Dual 12 inch Fan Shroud for ColdCase MOP750 Raw Aluminum or Powder Coated

1966–1974 Mopar Dual 12-Inch Fan Shroud for Cold Case MOP750

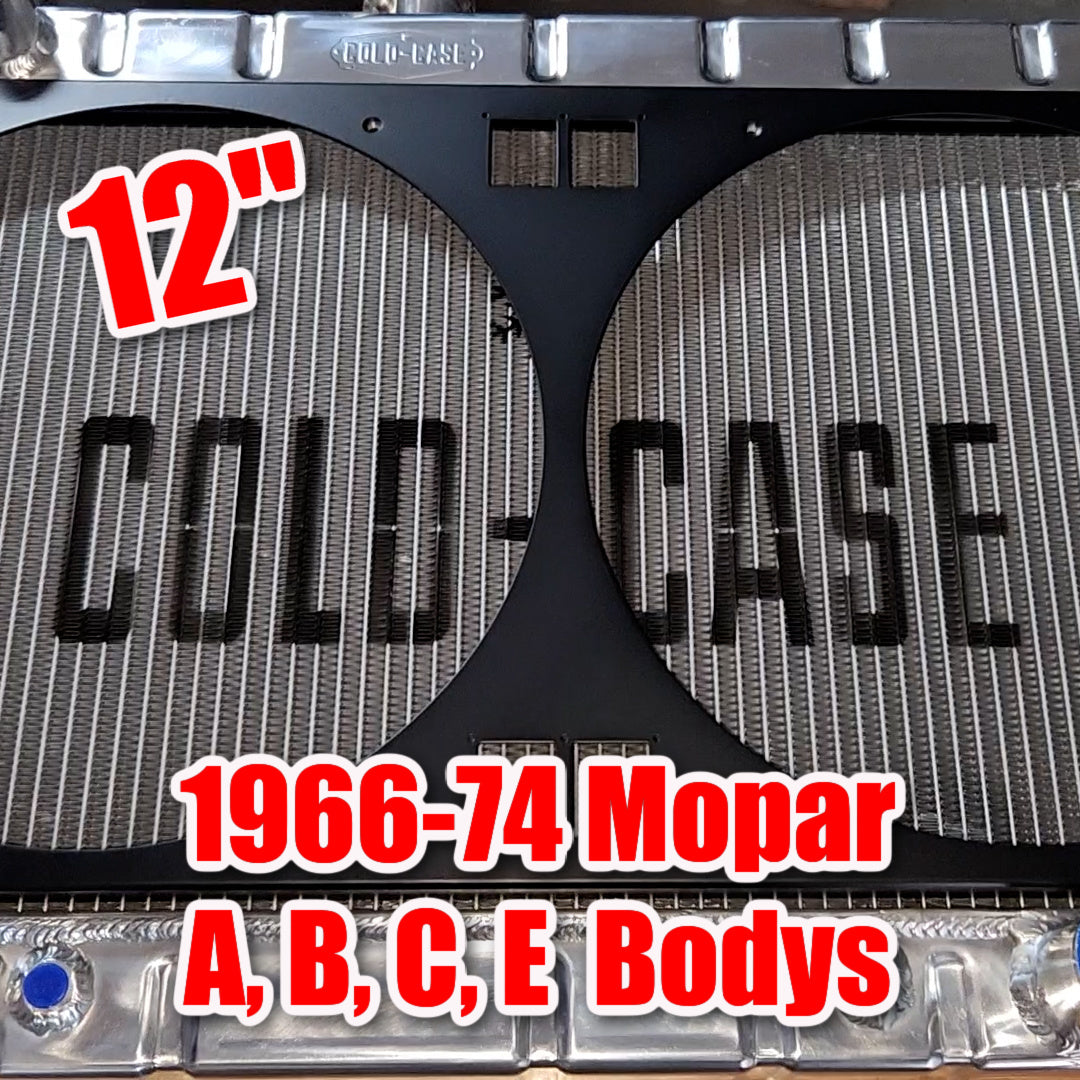

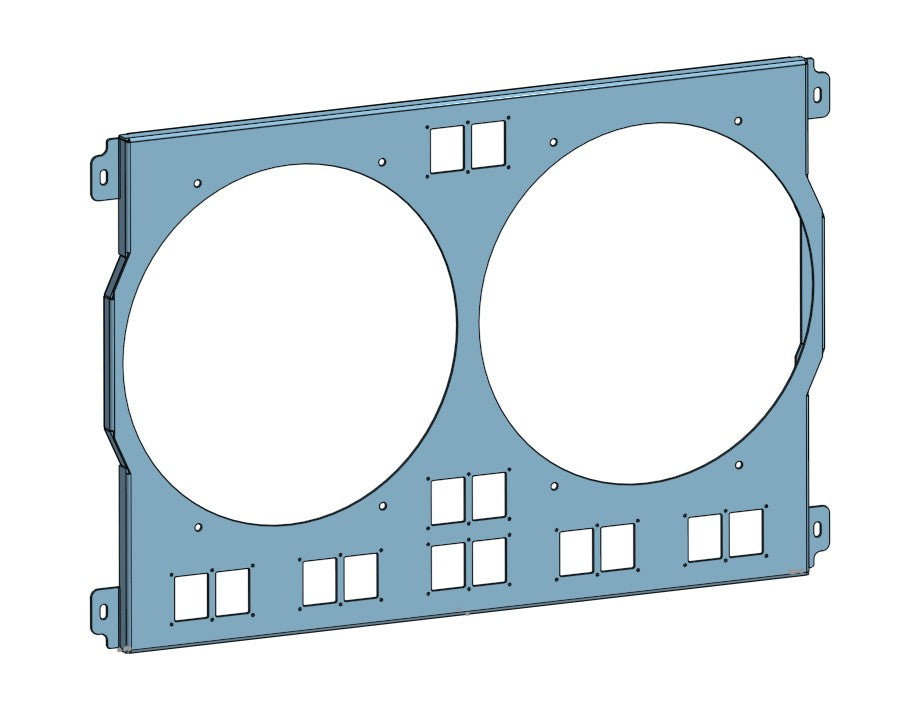

Build your Mopar's cooling setup around a custom-contoured shroud for your Cold Case MOP750 radiator. Precision CNC-cut from aircraft-grade aluminum and made in the USA, the design overlaps the radiator side brackets and uses seven rubber flap doors to allow pass-through airflow at road speed.

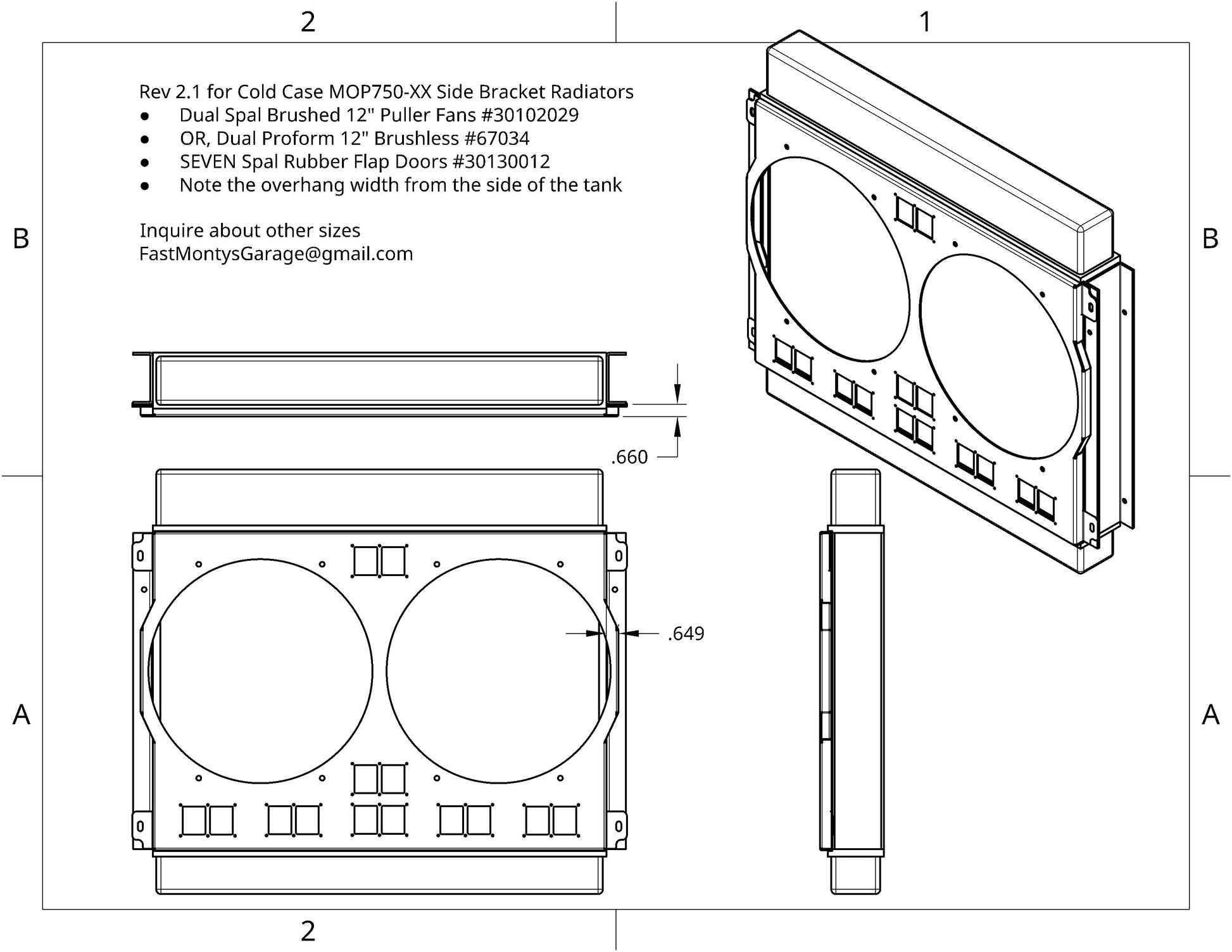

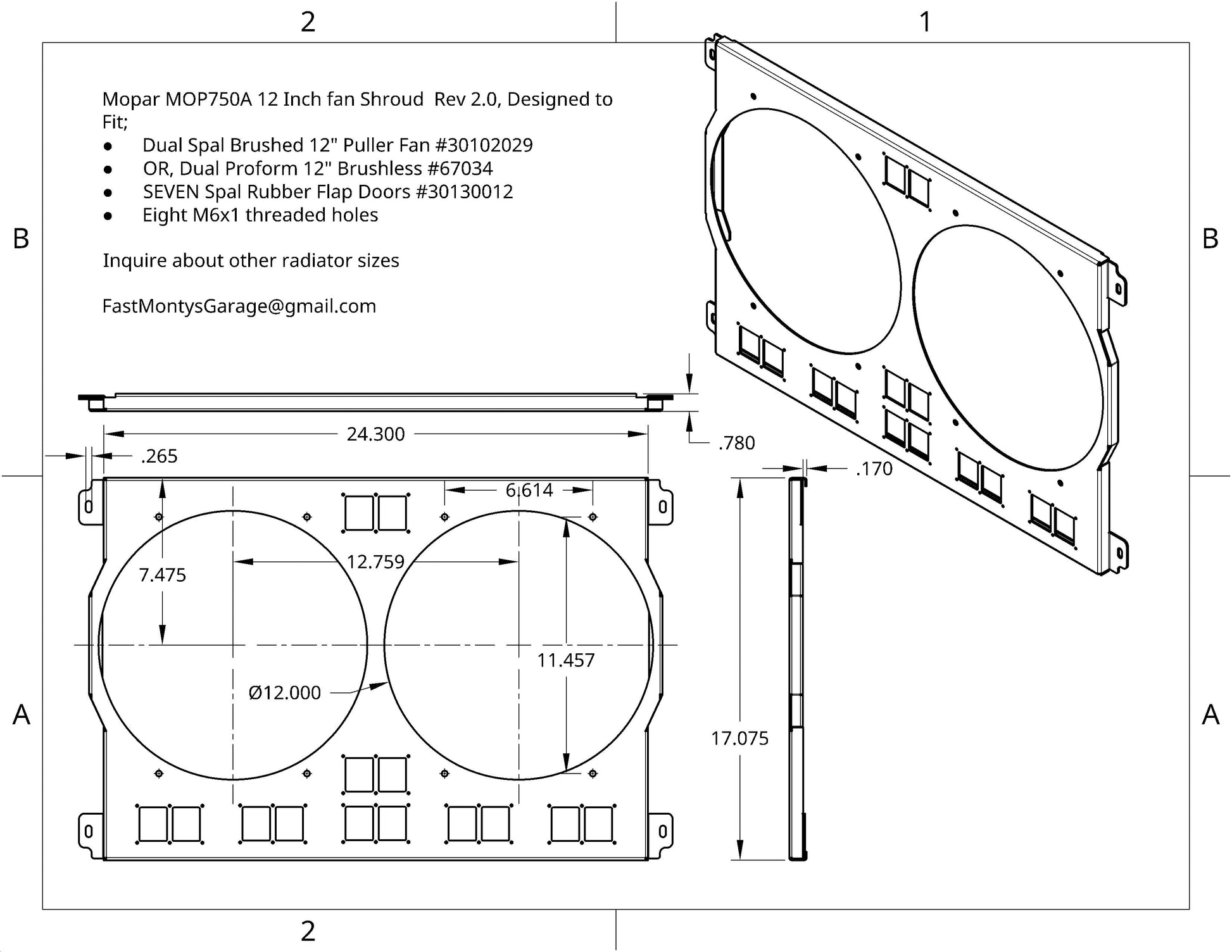

Check clearance before ordering: Compare the dimensions on the attached specification sheet with your engine accessories and available space. Confirm clearance for both the shroud and your selected fans.

Vehicle and Radiator Fitment

• 1970–1973 Barracuda
• 1970 Belvedere
• 1966–1973 Charger
• 1970–1974 Challenger
• 1966–1973 Coronet
• 1966–1972 GTX
• 1966–1973 Road Runner
• 1966–1973 Satellite
• Designed specifically for Cold Case MOP750, MOP750A, MOP750AB, and Hemi-swap MOP750-5 radiators.
• Accommodates the dual 12-inch fan models listed below. Contact us about fans not listed, and double-check available space.

Compatible 12-Inch Fans

• SPAL 30102029: 12-inch brushed high-performance puller fan. Buy here.
• Proform 67034 and 67038: 12-inch low-profile brushless fans.

Compare options using Monty's independent fan CFM test results.

Need fans too? Save around 5% on the entire kit. Shroud & Fan Kit Builder — Build your kit here.

Installation Hardware and Accessories

• Fan mounting hardware: M6x1 fasteners, 16mm long, sold separately.
• Seven rubber flap doors: SPAL 30130012, sold separately. Buy here.
• Fan relay and wiring harness: Needed if not already installed. Each relay should be rated for 30–40 amps. Options include SPAL, Painless Performance, Derale, Ron Davis, and American Autowire.
• Adjustable thermostat switch: Recommended for automatic operation and typically included with most fan-relay harnesses. Monty's personal Painless Performance setup switches on at 195°F and off at 185°F.

See the “Down Flow Shrouds” video for installation tips, and follow our Radiator Fan Shroud Installation Guide.

Finishes and What's Included

• Choose raw aluminum or custom color from the available finish options.
• Raw aluminum may have witness marks that can be cleaned with Scotch-Brite or a Magic Eraser.
• Fans and installation accessories are sold separately.

Lead Times and Additional Information

• Raw aluminum: Around one week.
• Powder coated: Around two weeks.

This is an aftermarket shroud designed to work with the Cold Case MOP750 radiator. It is not manufactured by Cold Case Radiators.

Check Monty's Discounted Parts and Blems for working shrouds with minor blemishes.
