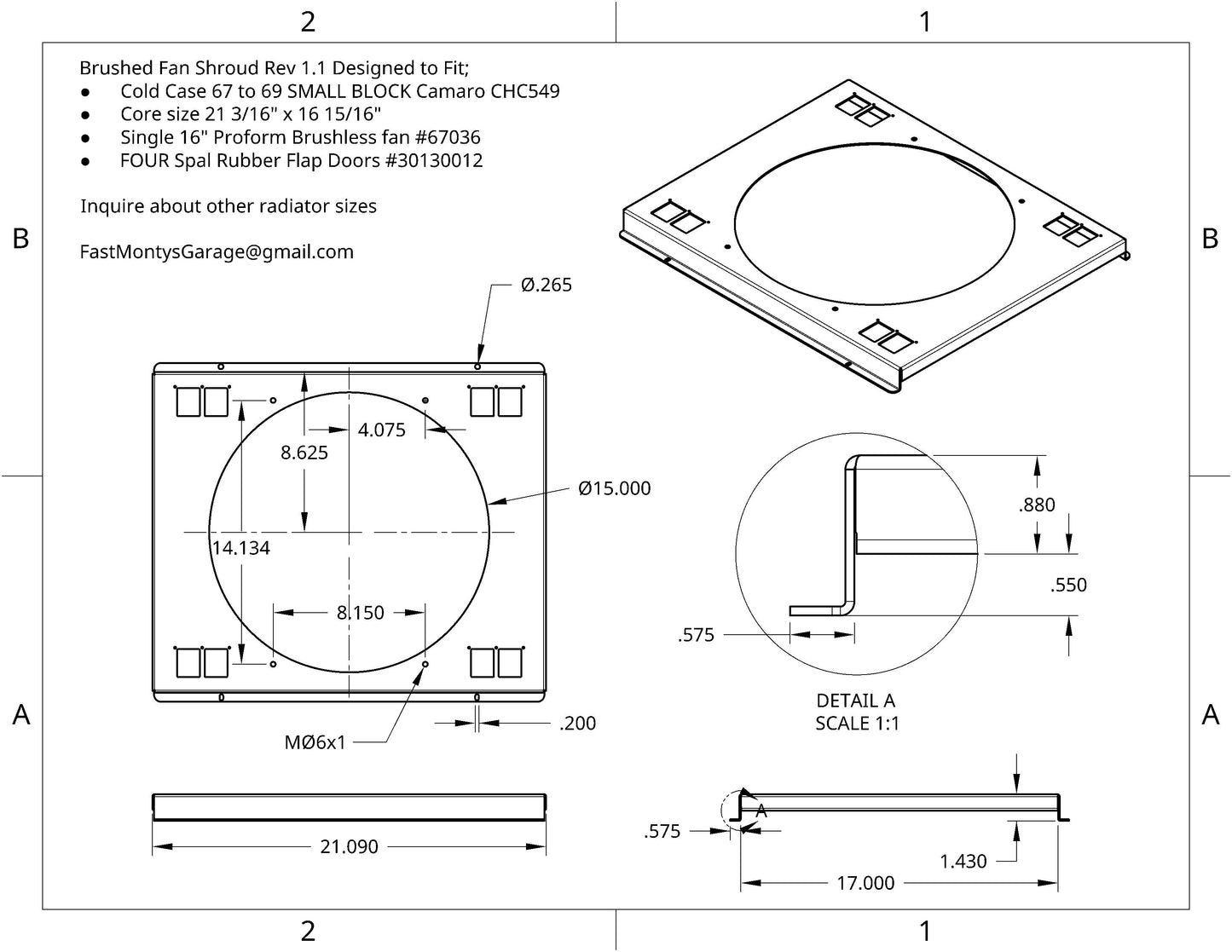

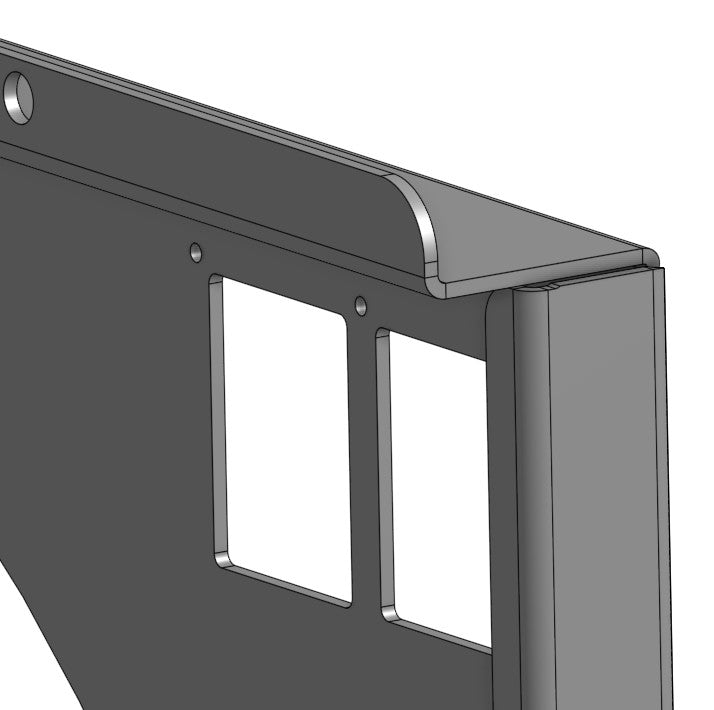

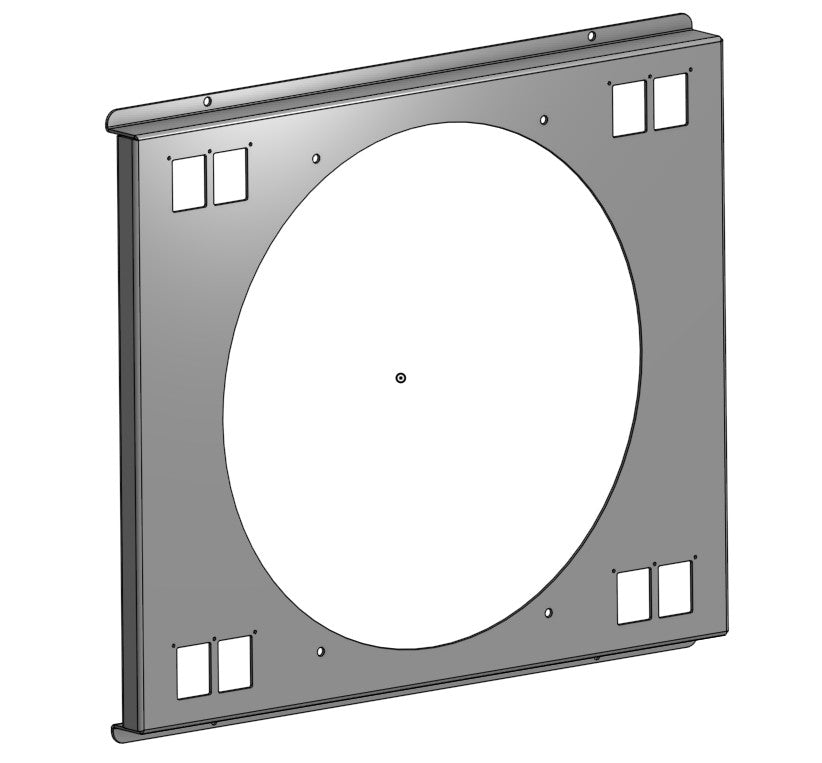

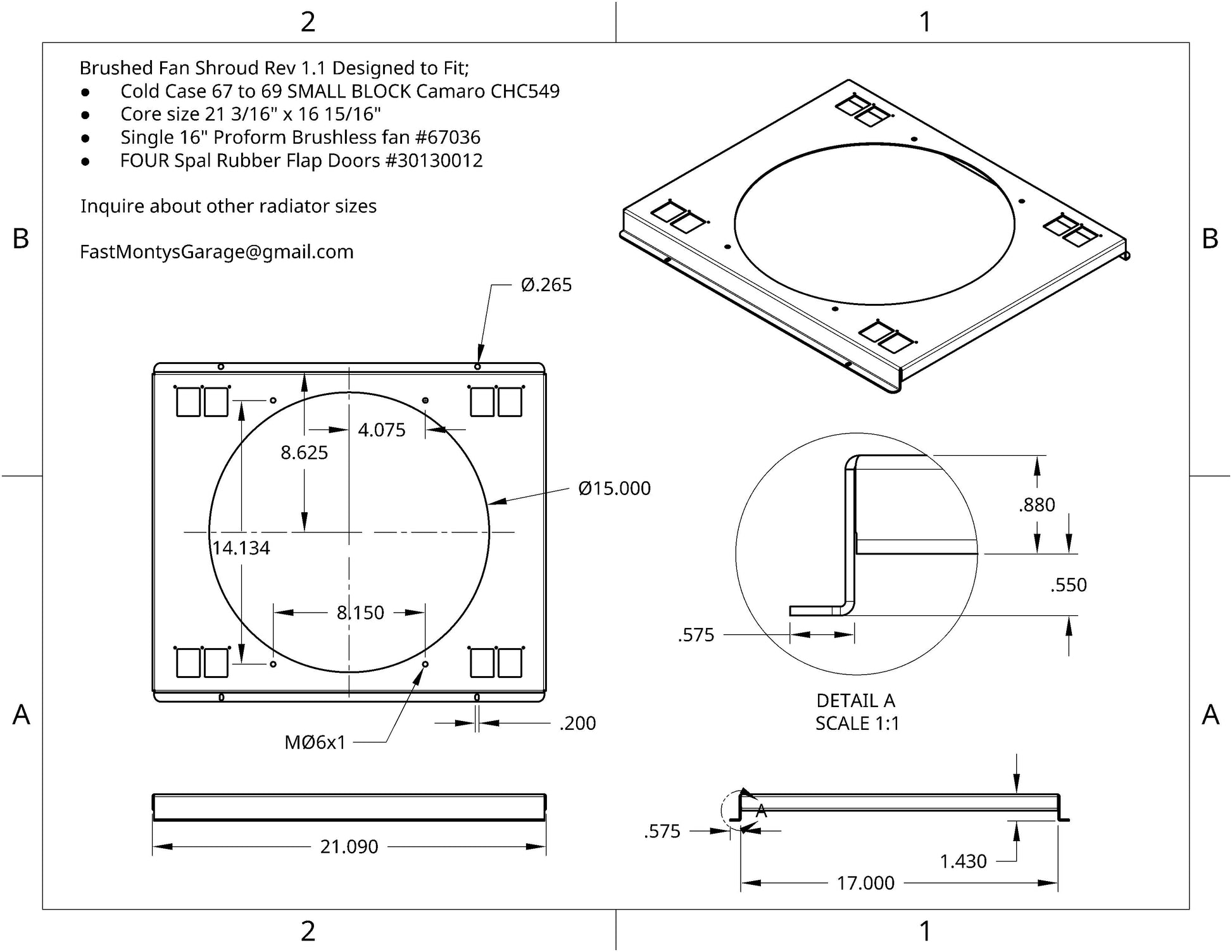

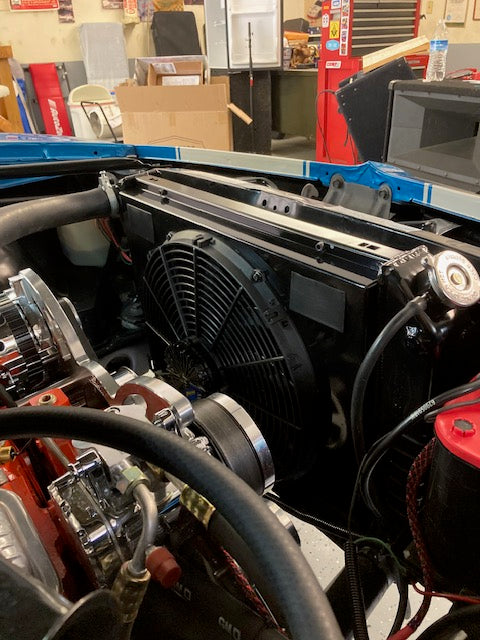

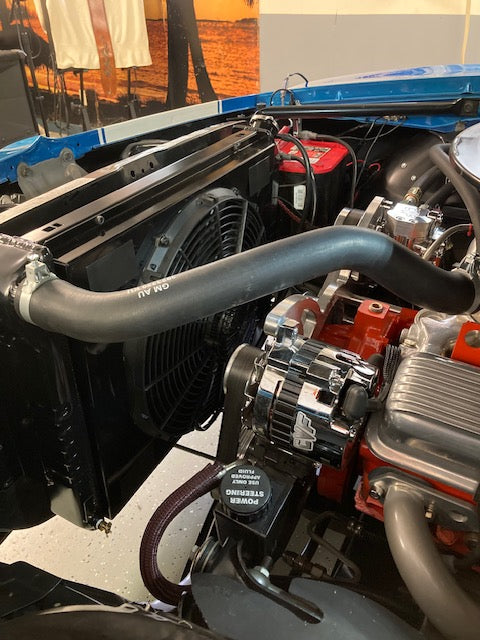

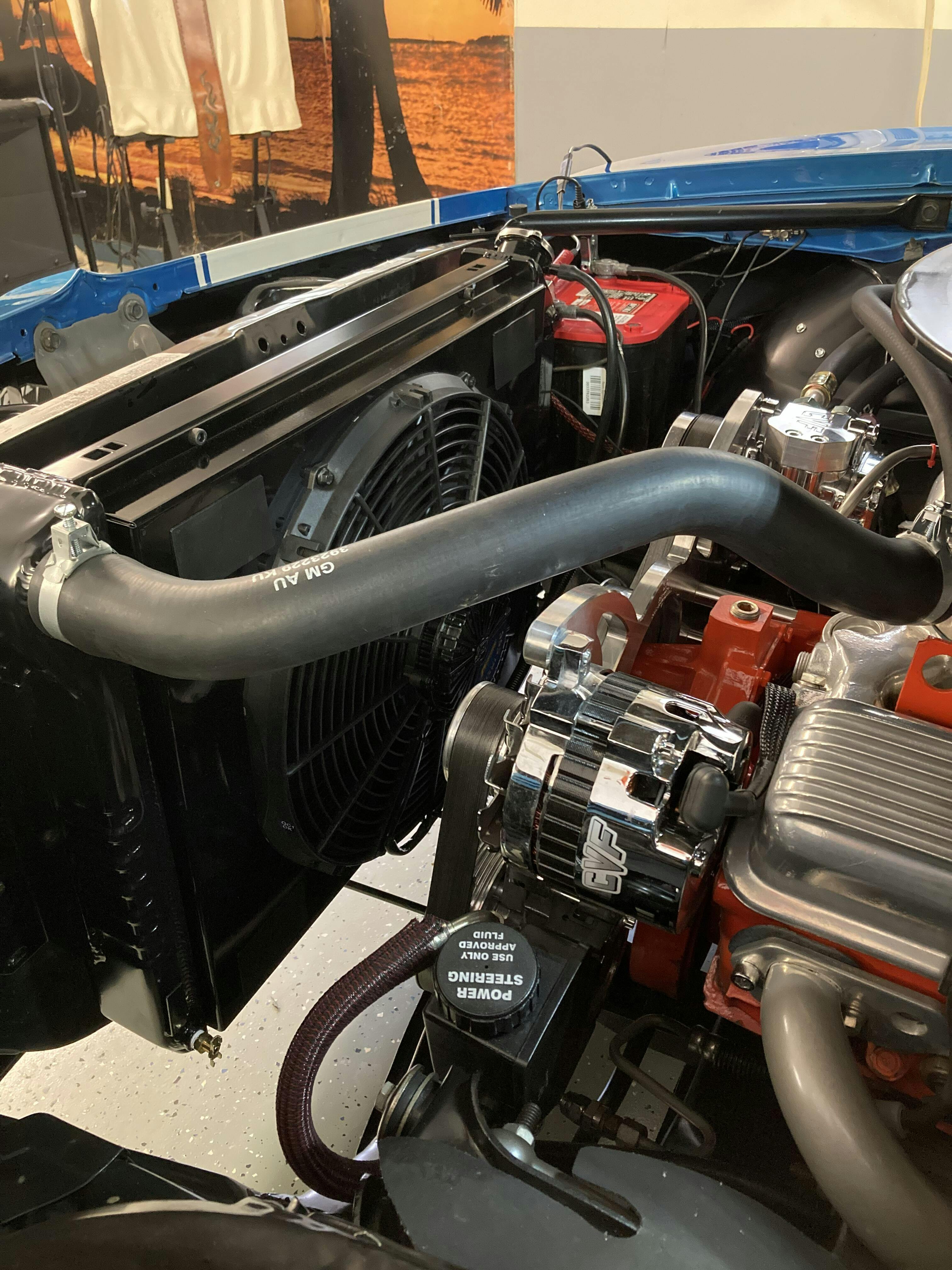

Designed for 1967 to 1969 Camaro SMALL BLOCK Cold Case radiator, CHC549 to mount a Proform 16" Brushless fan part #67036 (Straight Blade) or #67037 (S Blade) and Four Rubber flap doors, Spal part #30130012. Custom Designed by Monty, manufactured, shipped with a raw finish or powder coated, by SendCutSend.
Designed to fit Cold Case Radiator part #'s; CHC549, CHC549A, CHC549AB
Fan, Fasteners, and Flap Doors are NOT Included. Please do an internet search for the flap door part number, pricing will range from $1.49 to $4.00 each. The recommended fan fastener is a M6x1, 16mm long.

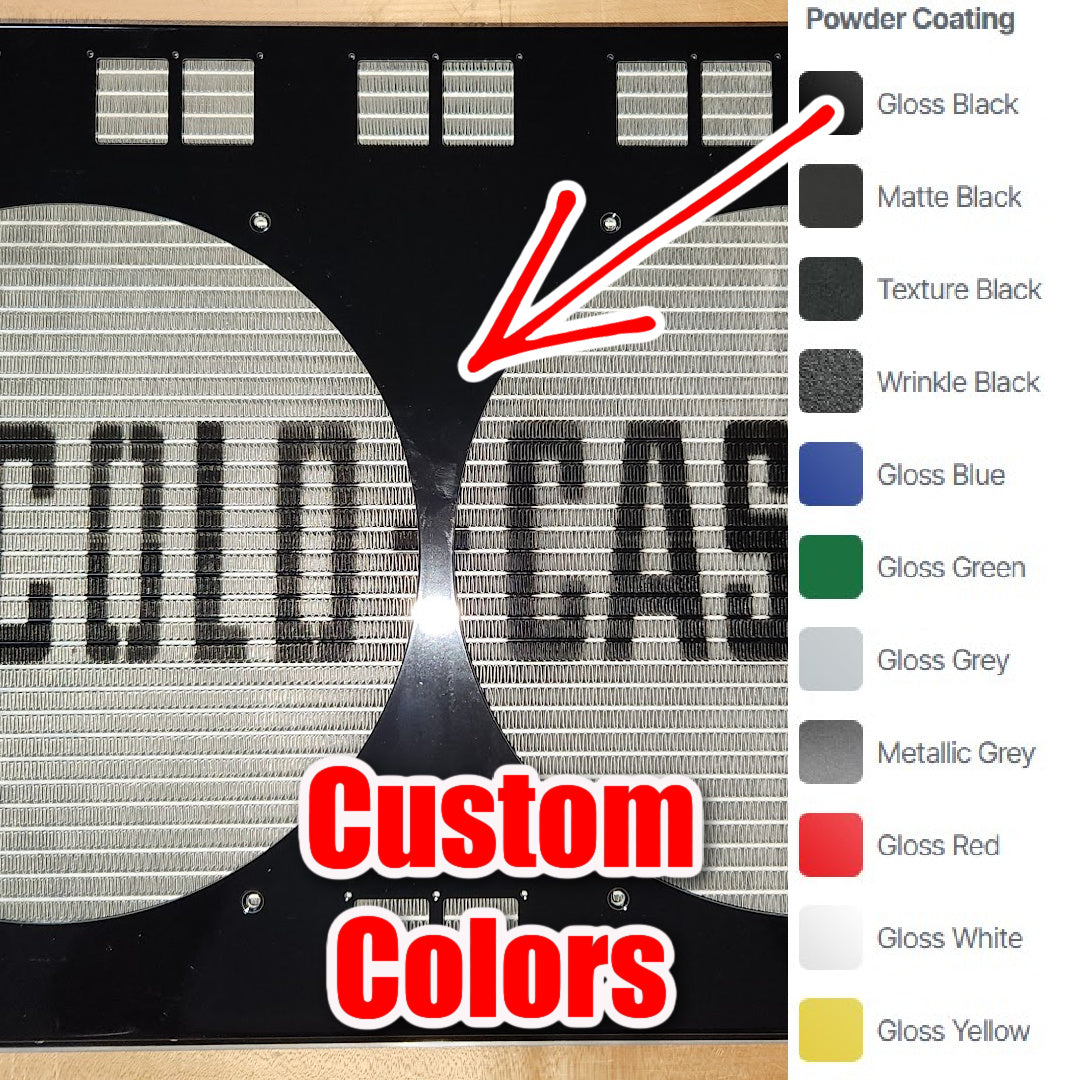

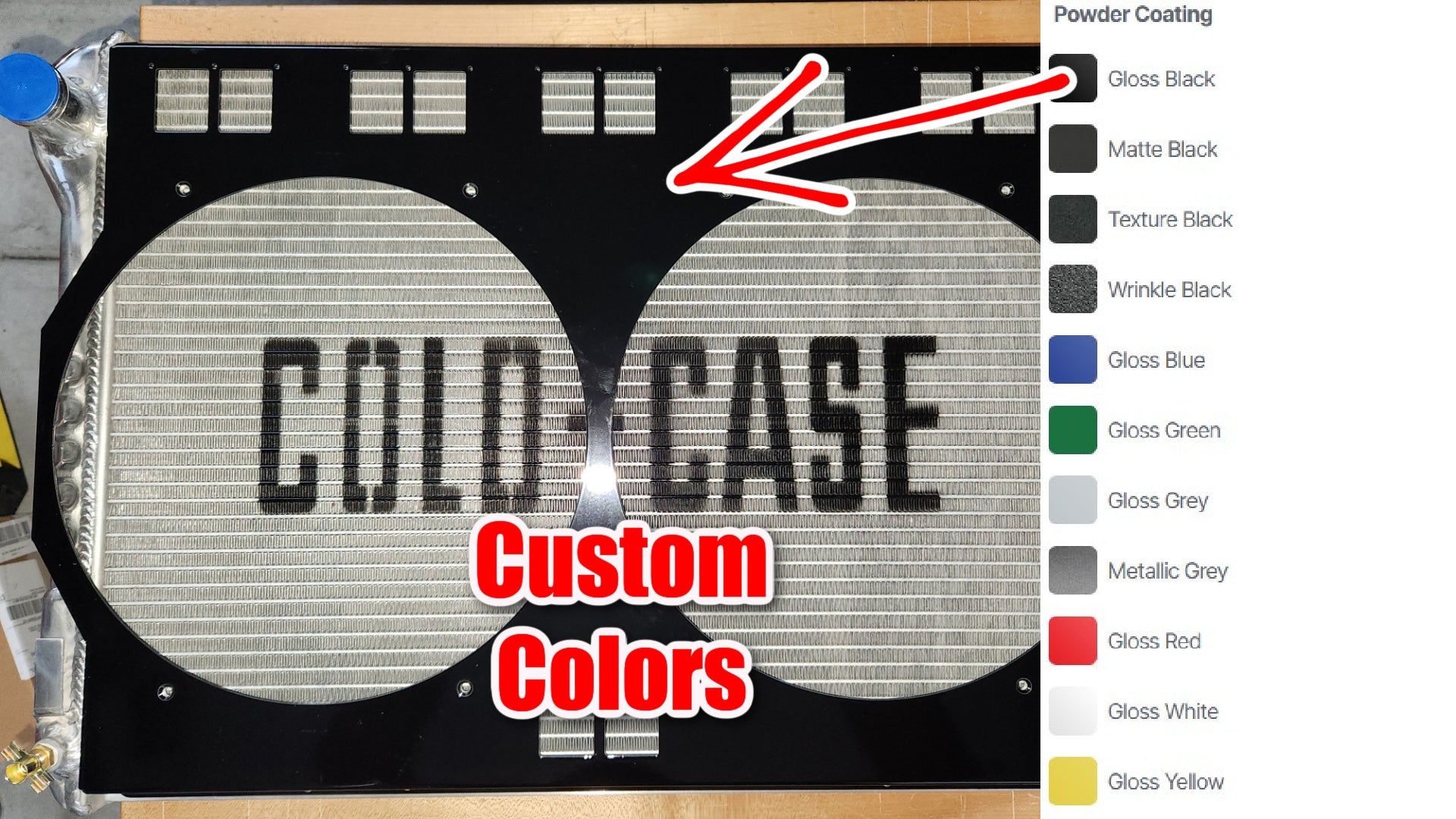

Powder Coated lead time is around 2 weeks to ship and is dropped shipped directly from SendCutSend, if you select Custom Color at check out, we will email you for your preferred color.

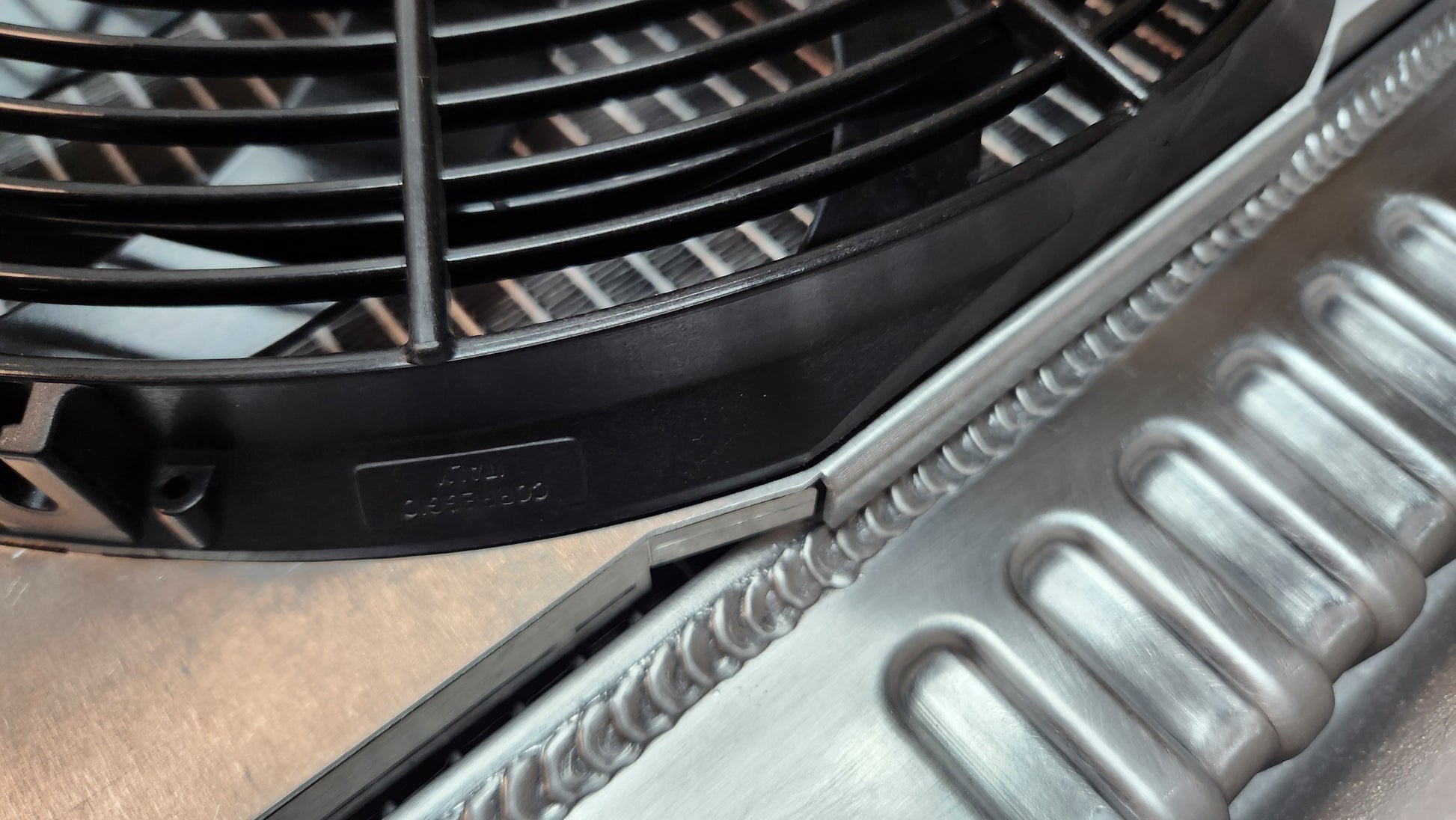

The Raw Aluminum version is also manufactured and drop shipped from SendCutSend, it will have witness marks near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.
All Drop Shipped Sales are Final.
Not sure which fans to use? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.
Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.
