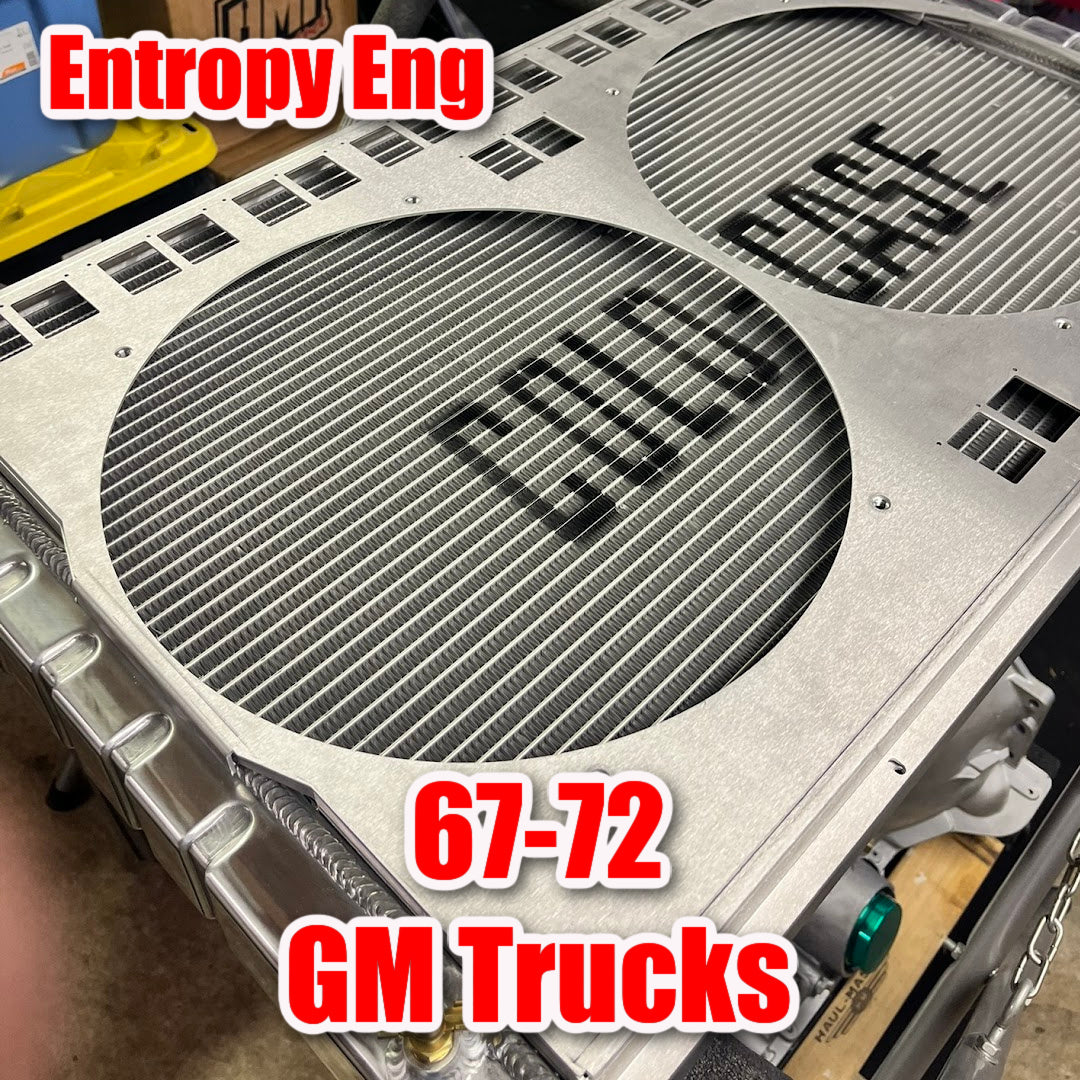

1967 to 1972 GM Trucks - Dual 14 inch fan Shroud - For Entropy Engineering Radiators

Keep your GM or GMC Truck running cool with this precision-engineered fan shroud

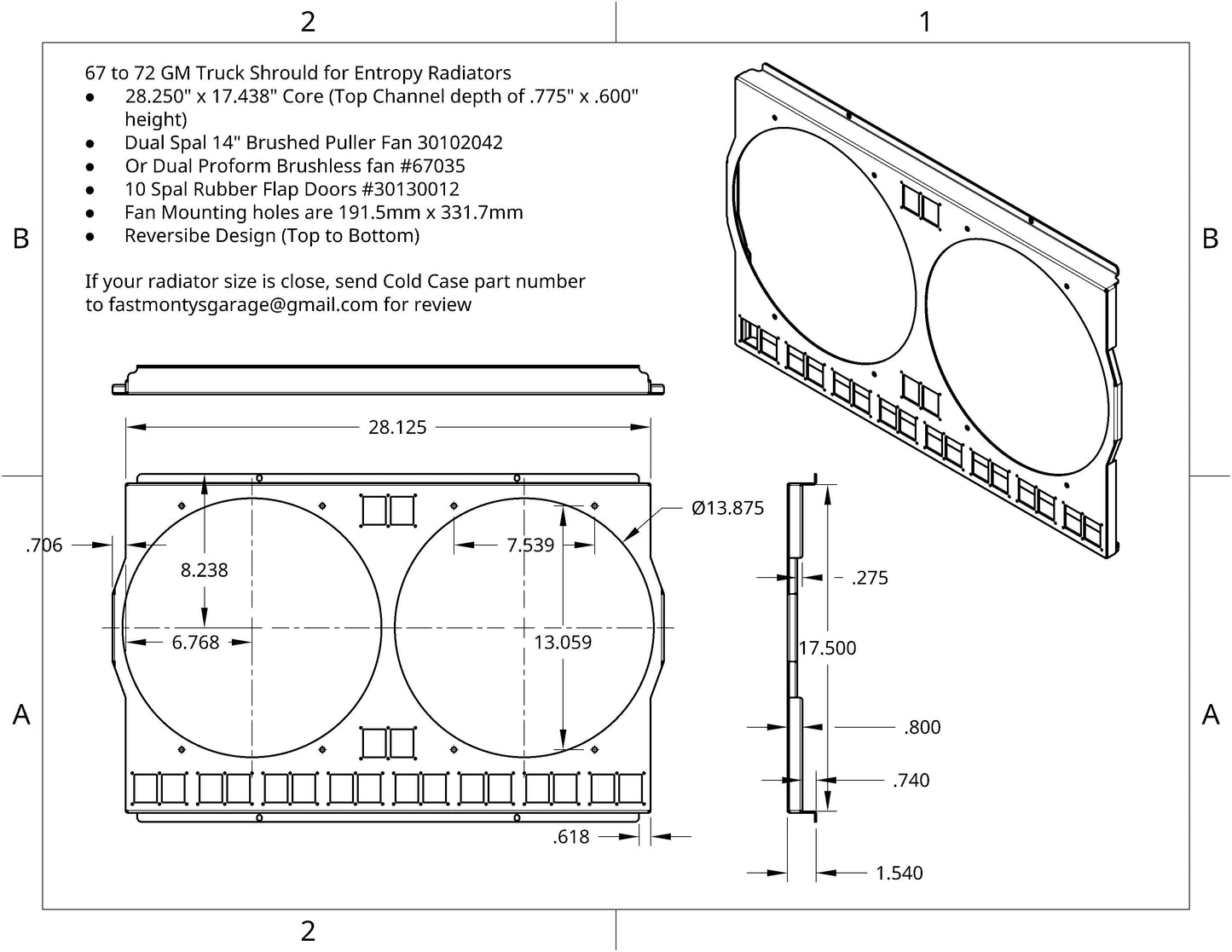

Upgrade your cooling system with our custom-designed shroud for the 67 to 72 Entropy Engineering radiator with a core size of 28.25 x 17.438  See attached print to verify your radiator size.  Through optimized fan sizing and precision-engineered airflow channels, this shroud maximizes the contact between your fan and radiator surface—ensuring every CFM of airflow does its job.

Key Performance Advantages:

• Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.
• Optimized Fan Size: Direct fit 14" fans were selected by Monty

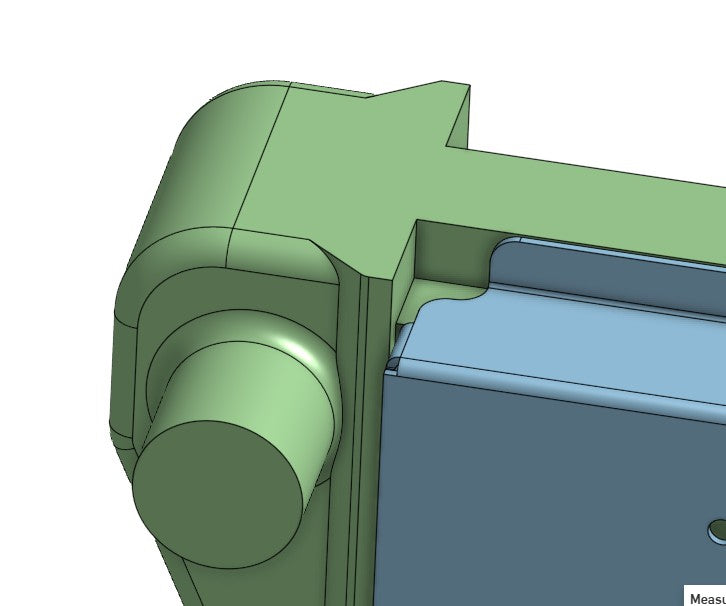

• Upper and Lower Mount Provision: Upper and lower flanges are recessed to allow removal of the shroud without removing the mounts.
• Not sure which fans to use? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.

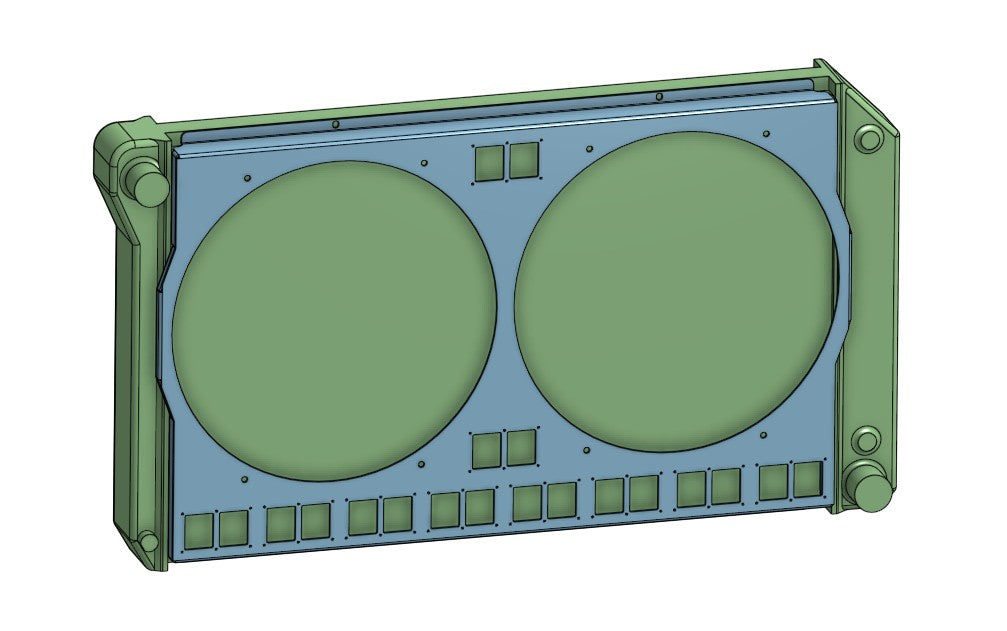

• Better Fitment: Custom-contoured to the Entropy Engineering Radiator for a truly integrated cooling solution, overlapping the side tanks, accommodating larger fans, and providing provisions for your radiator brackets.

Compatible Fan Part Numbers (14" Fans):

• Spal 30102042 (14" Brushed High Performance Puller)
• Proform 67035 (14" Low Profile BRUSHLESS)


Necessary Accessories for Installation (Not Included):

• Fan mounting hardware M6x1 - 16mm long
• TEN Rubber Flap Doors, Spal part #30130012
  • Ordering a Raw shroud? Flap doors are here; Link to Rubber Flap Door part Number 30130012
• Fan relay and wiring harness (if not already installed)
• Make sure each relay is rated for 30 to 40 amps. Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
• Adjustable thermostat switch (recommended for automatic operation) typically included with most Fan Relay harnesses.
• See the "Twin Spals" video for installation tips.

Specifications:

• Fits 1967-1972 GM Trucks (C10, K10, C15, K15, GMC, Jimmy, Sprint, K25, C25, C35, Suburban, please check the Entropy Engineering website for exact fit

• Accommodates 14" fans, inquire for different fans not listed
• Available in Raw Aluminum (Powder Coat upon request, as it'll be a one off custom)
  • Raw Aluminum does have witness marks that can be cleaned with Scotch Brite, or a Magic Eraser
• Precision CNC-cut from aircraft-grade aluminum
• Made in the USA

Note: This is an aftermarket shroud designed to work with the Entropy Engineering radiator. It is not manufactured by Entropy Engineering. Fans and installation accessories sold separately. Lead time for Raw Aluminum is around one week.

Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.
