1968 to 1977 GM A-Body Shroud for Frostbite FB304 fits 14 inch Spal Brushless fans Powder Coated or Raw Aluminum

Keep your GM A-Body running cool with this precision-engineered fan shroud

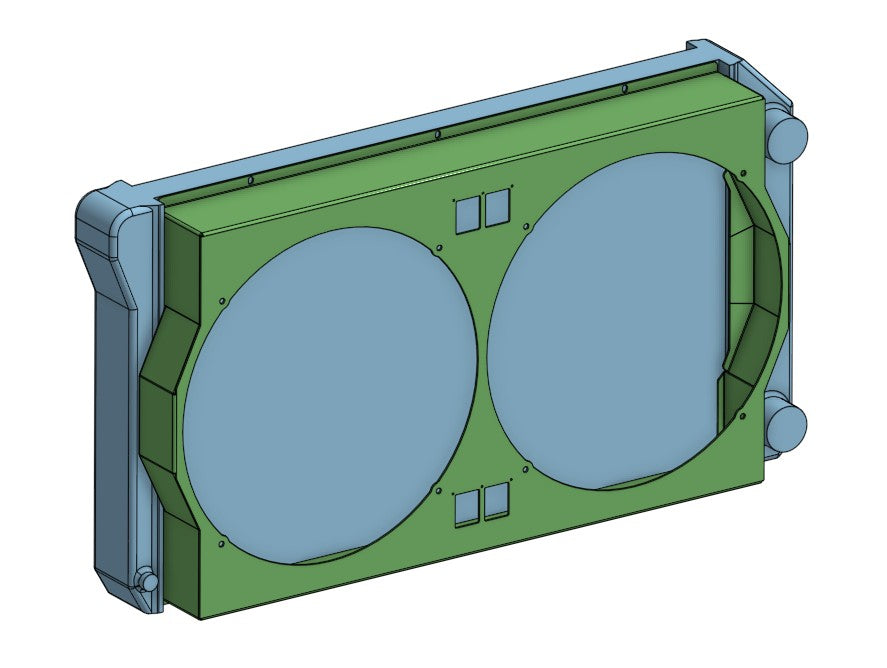

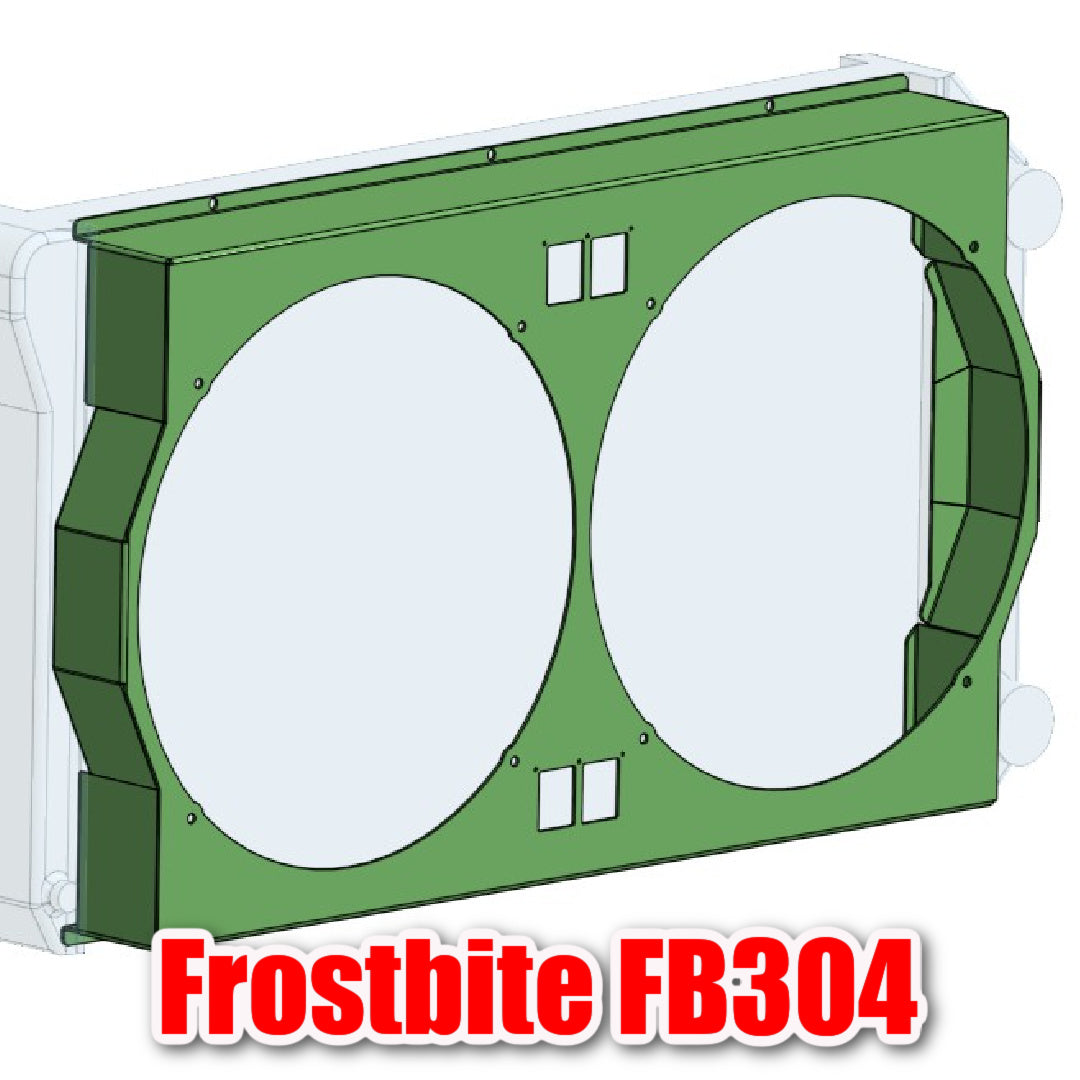

Upgrade your cooling system with our custom-designed shroud for the Frost Bite FB304 radiator that delivers massive cooling ability utilizing Spal Brushless technology.  Through optimized fan sizing and precision-engineered airflow channels, this shroud maximizes the contact between your fan and radiator surface—ensuring every CFM of airflow does its job.

Key Performance Advantages:

• Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.
• Optimized Fan Size: Direct fit for drop in 14 inch Spal Brushless fans
• How do Spal Brushless fans perform? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.
• Better Fitment: Custom-contoured to the Frost Bite Radiator for a truly integrated cooling solution, overlapping the side tanks, accommodating larger fans.

Compatible Fan Part Numbers (14" Fans):

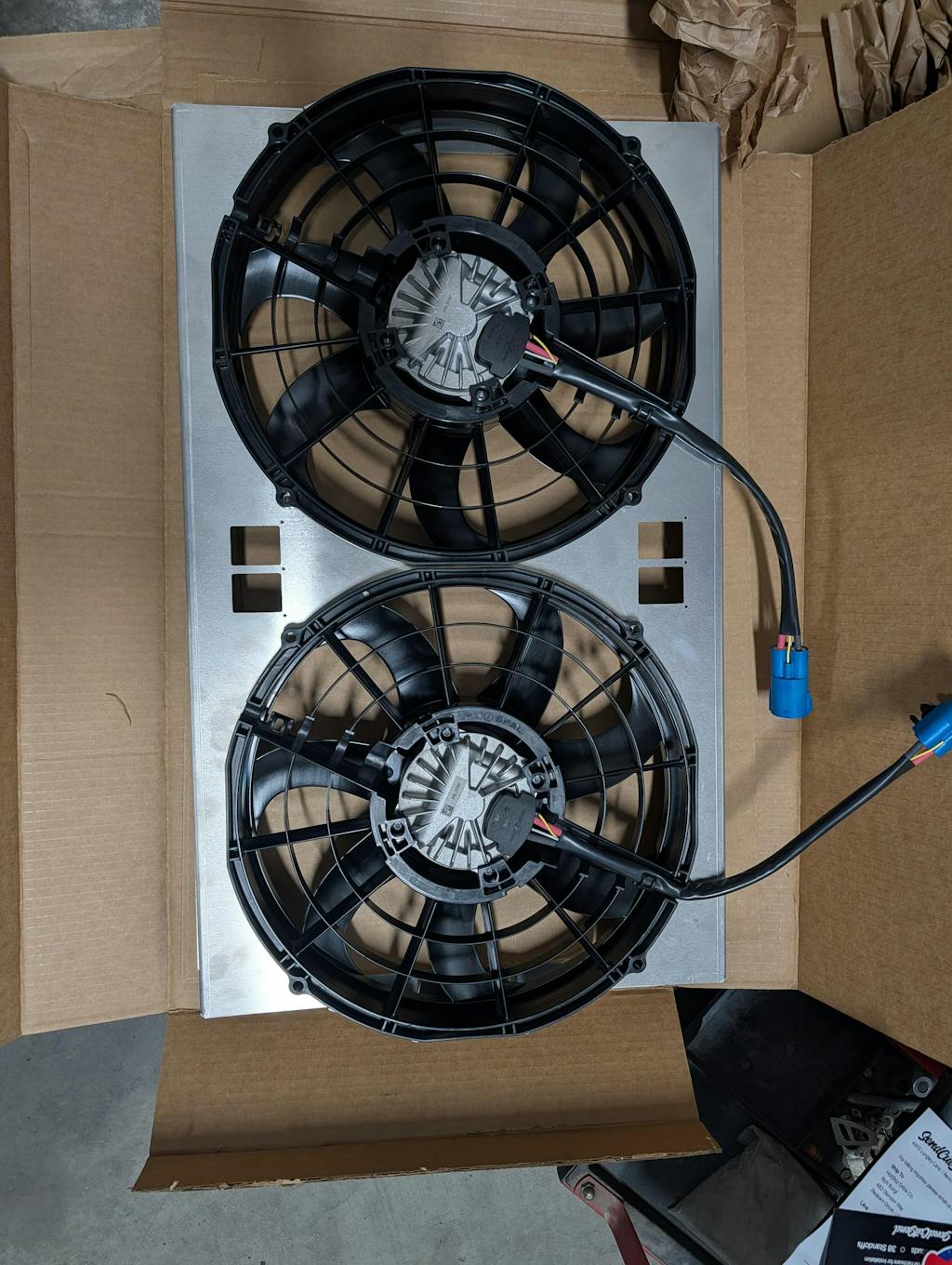

• Spal 30107102 Brushless (500 watt "drop in" style) VA116-ABL505/105A
• Spal 30107103 Brushless (300 watt "drop in" style) VA116-ABL324P/N-105A


Necessary Accessories for Installation (Not Included):

• Fan mounting hardware M6x1 - 30mm long
• Two Rubber Flap Doors, Spal part #30130012
• Fan relay and wiring harness (if not already installed)
• Make sure each relay is rated for your fan, the 500 watt version pulls a massive 40 amps!  Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
• Adjustable thermostat switch (recommended for automatic operation) typically included with most Fan Relay harnesses.
• See the "Twin Spals" video for installation tips.

Specifications:

• Fits 1968-1977 GM A-Body (Chevelle, Malibu, GTO, Lemans, 442, Cutlass, El Camino, Monte Carlo)
• Designed specifically for Frostbite FB304 Radiator
• Accommodates 14" Spal Brushless "Drop in" fans, inquire for different fans not listed

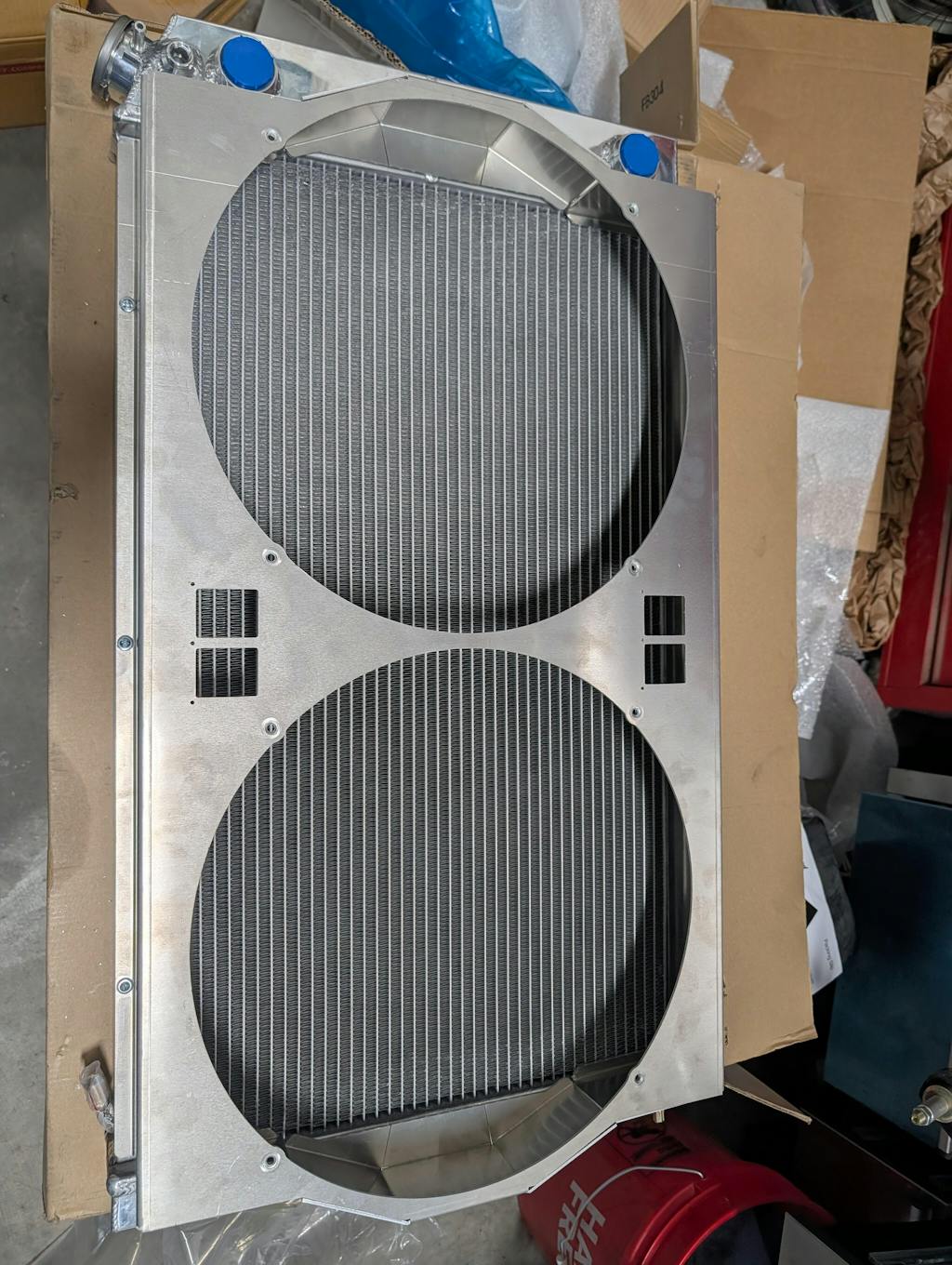

• Available in powder coated black or raw aluminum finish
  • Raw Aluminum does have witness marks that can be cleaned with Scotch Brite, or a Magic Eraser

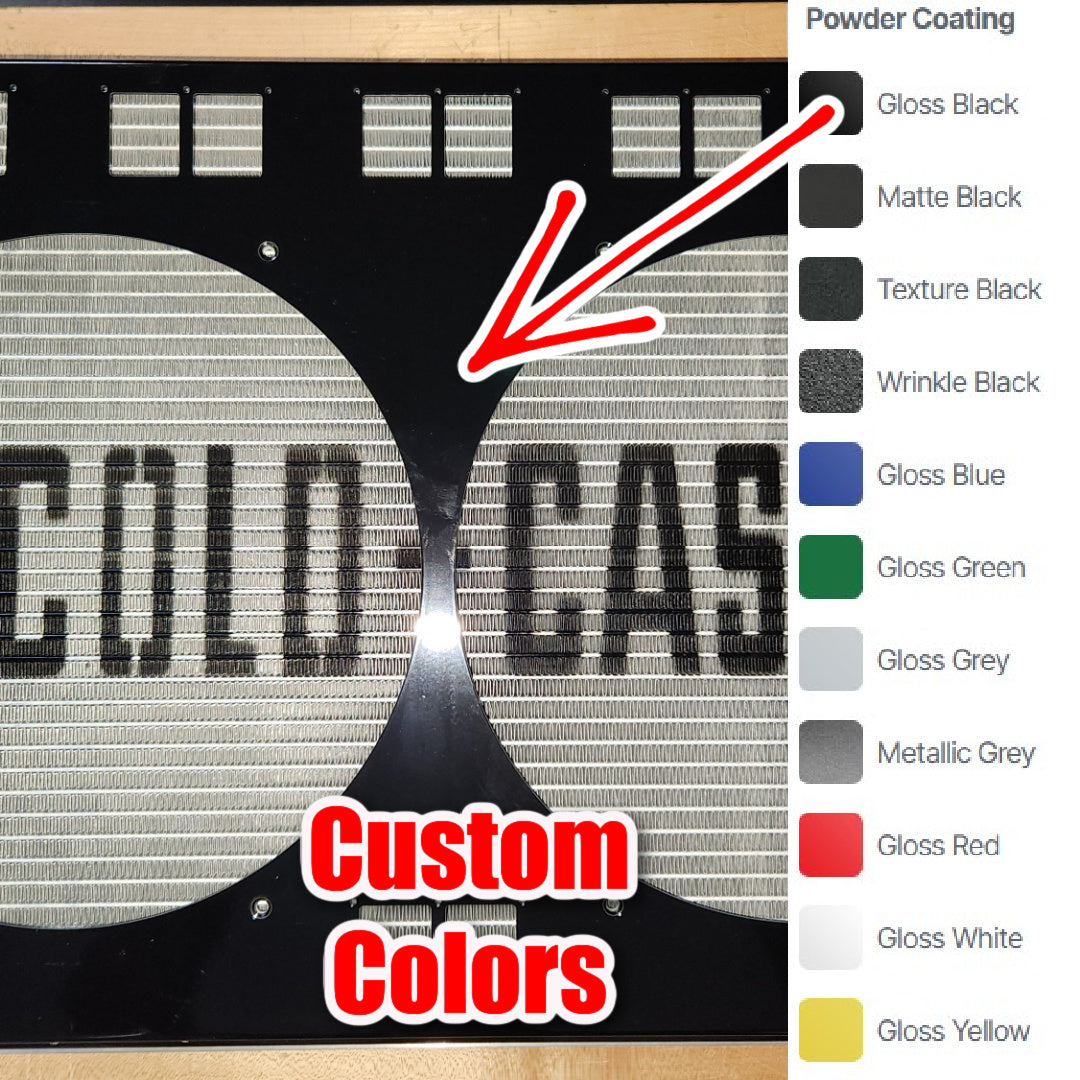

  • If you order "custom color" we will email you after your order is processed for your color selection
• Precision CNC-cut from aircraft-grade aluminum
• Made in the USA

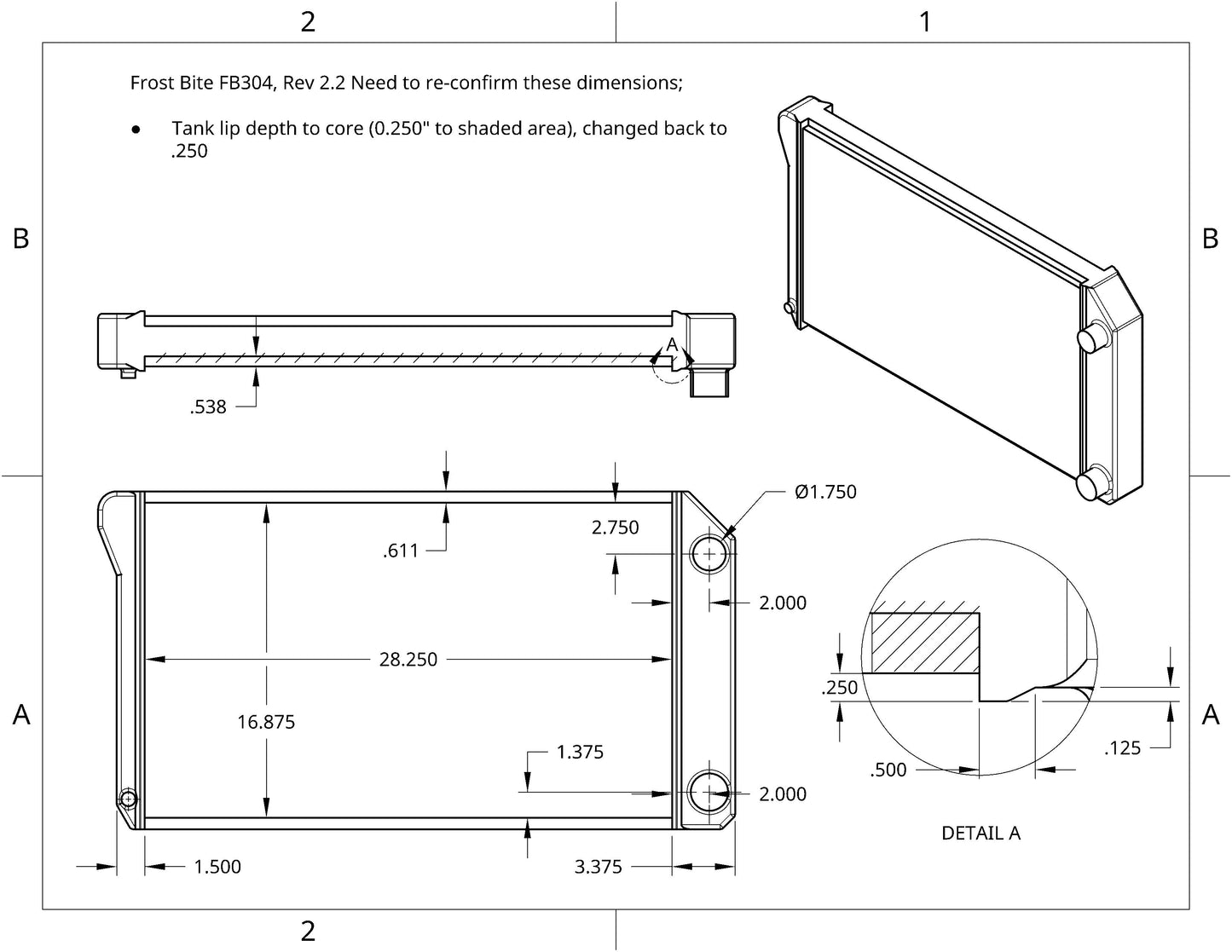

Note: This is an aftermarket shroud designed to work with the Frostbite FB304 radiator. It is not manufactured by Holley.  Fans and installation accessories sold separately. No open box returns.  Double check all dimensions on the below spec sheet and allow an extra 15mm of clearance for the fan frame. Lead time for Raw Aluminum is around one week. If Powder Coated is out of stock, please order, as we do not replace stock without an existing order, lead time is two weeks.

Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.
