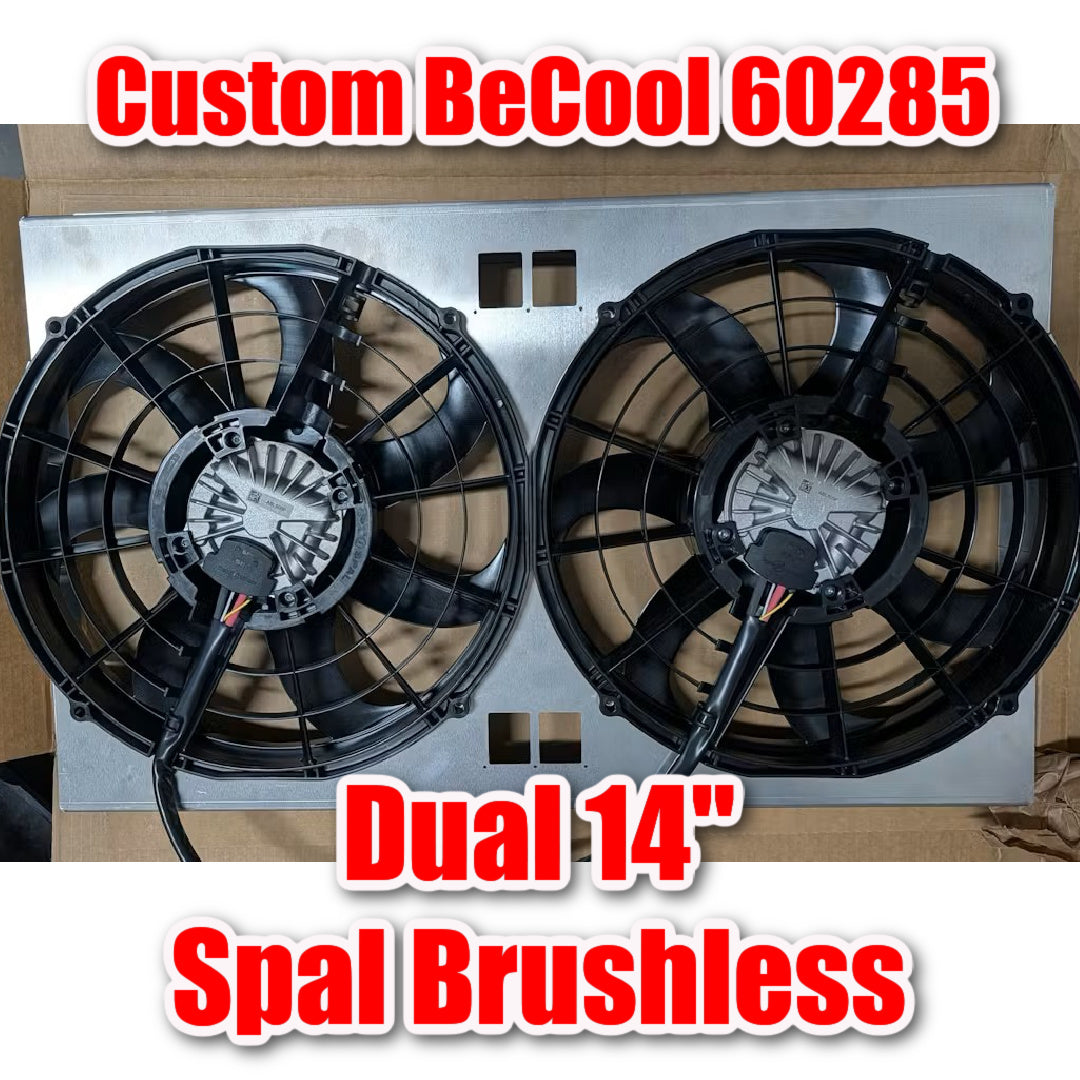

1965 Impala CUSTOM BeCool 60285 for Spal Brushless 14inch

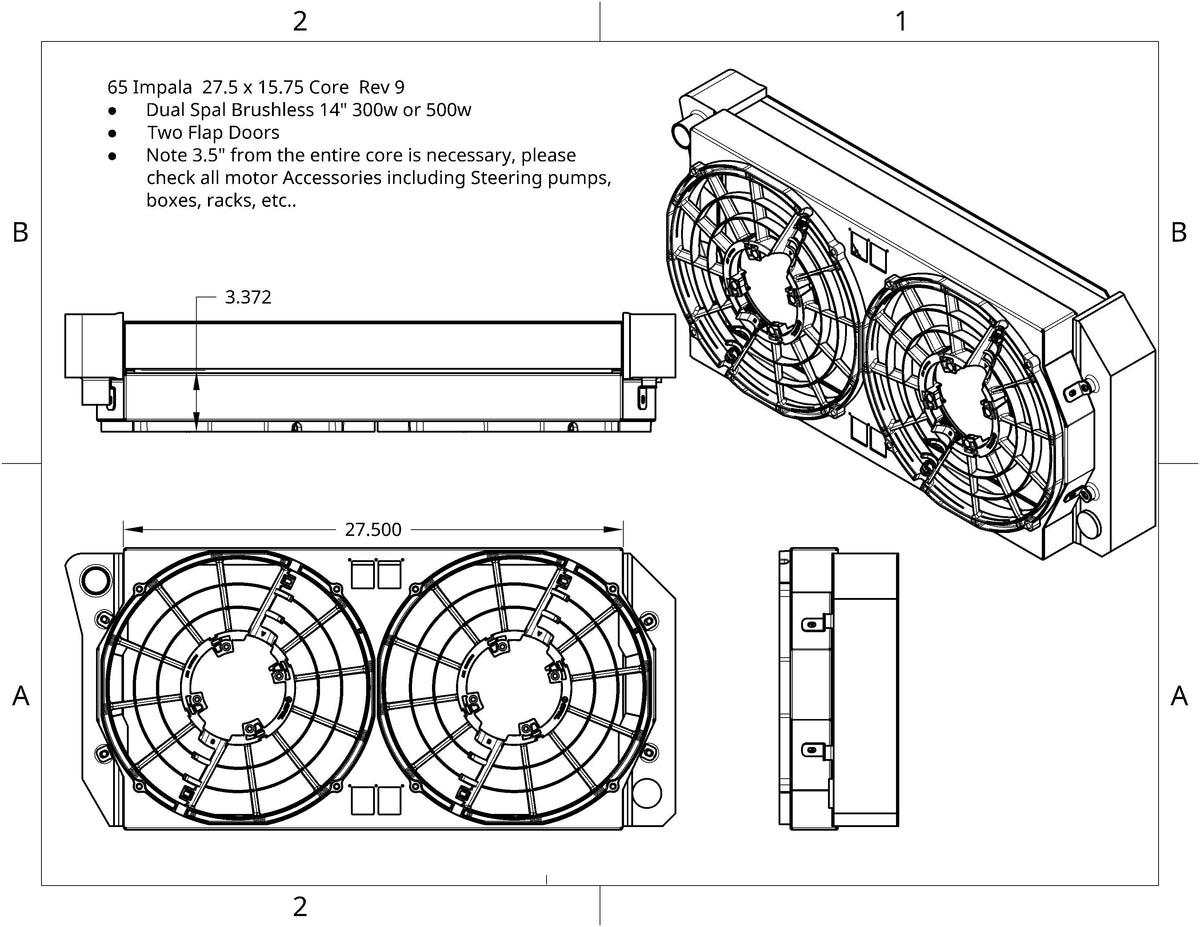

This is a CUSTOM Dual Spal Brusless fan shroud for a BeCool 60285 that has welded bungs.  If you need something close to this size, contact us.  NO RETURNS FOR CUSTOM.  Double check all dimensions!

Key Performance Advantages:

• Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.
• Optimized Fan Size: Direct fit 14" SPAL BRUSHLESS fans were selected by Monty
• Not sure which fans to use? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.

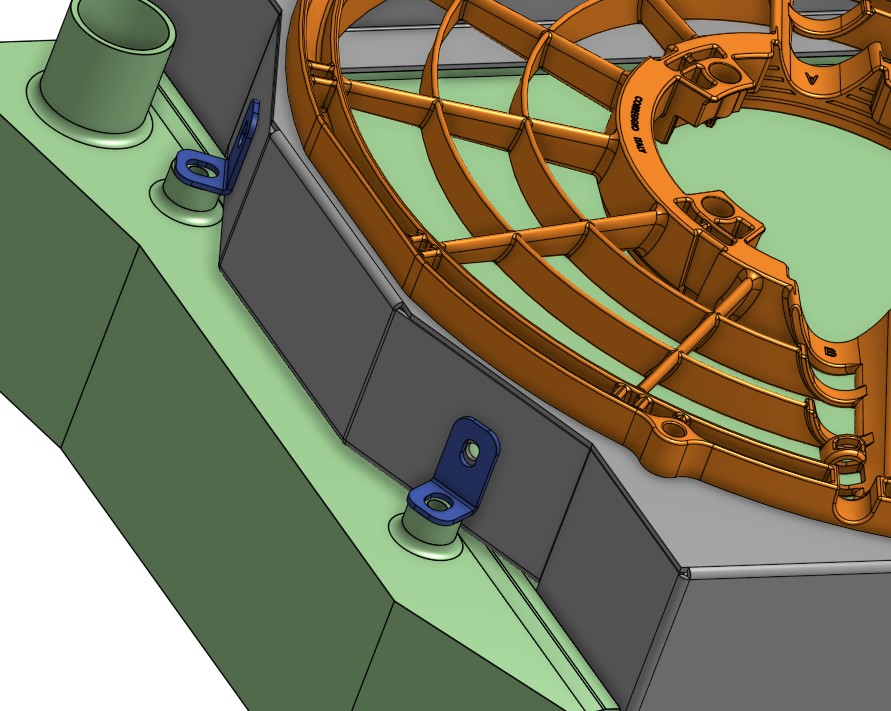

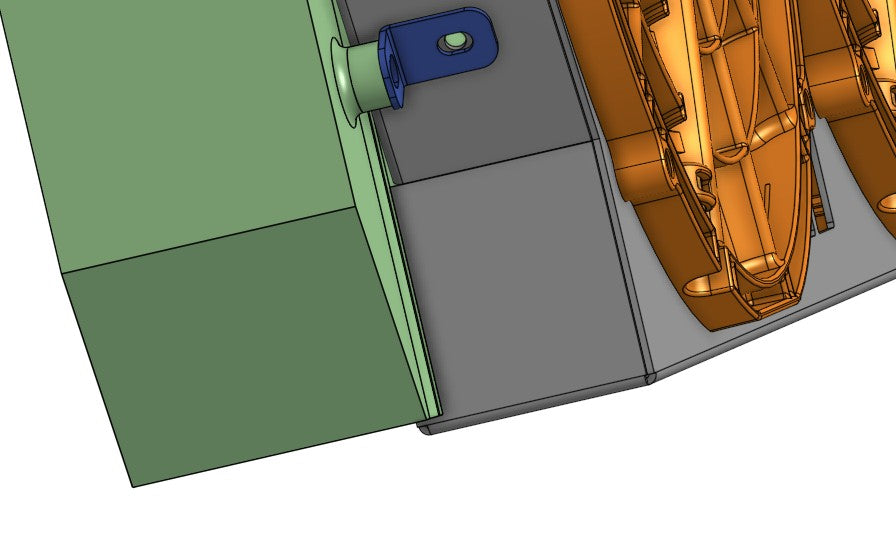

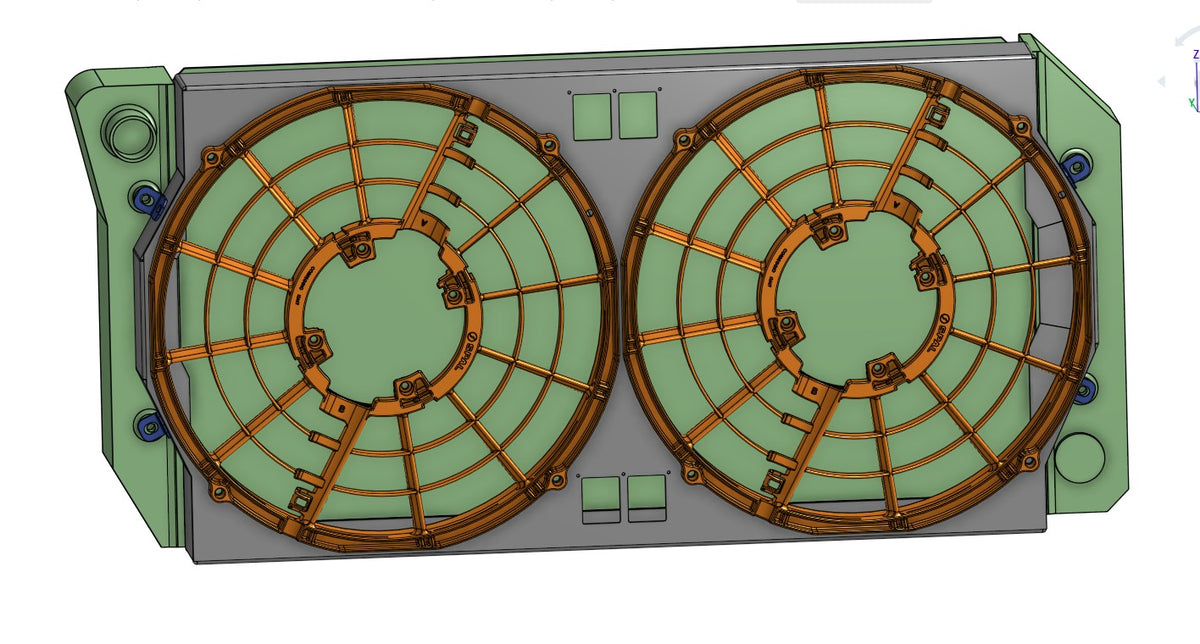

• Better Fitment: Custom-contoured to the Cold Case Radiator for a truly integrated cooling solution, overlapping the side tanks, accommodating larger fans.

Compatible 14" Fan Part Numbers (Not Included):

• Spal 30107102 Brushless (500 watt "drop in" style) VA116-ABL505/105A
• Spal 30107103 Brushless (300 watt "drop in" style) VA116-ABL324P/N-105A

Necessary Accessories for Installation (Not Included):

• Brushless Fan Controller (optional)
• Fan mounting hardware Eight M6x1 - 32mm long, Four M6x2 - 14mm long for side brackets
• Two Rubber Flap Doors - Spal part number 30130012

  • Flap doors are here; Link to Rubber Flap Door part Number 30130012
• Fan relay and wiring harness (if not already installed)
• It is highly recommended to use a PWM controller for these fans, including the SPAL temp sensor SBL-TS165P, 175P, 185P, Lingenfelter, and even some fuel injection systems such as the Holley Sniper.
• Alternatively, these fans can be operated like a brushed on/off fan.


See our Radiator Fan Shroud Installation Guide for step-by-step instructions.
