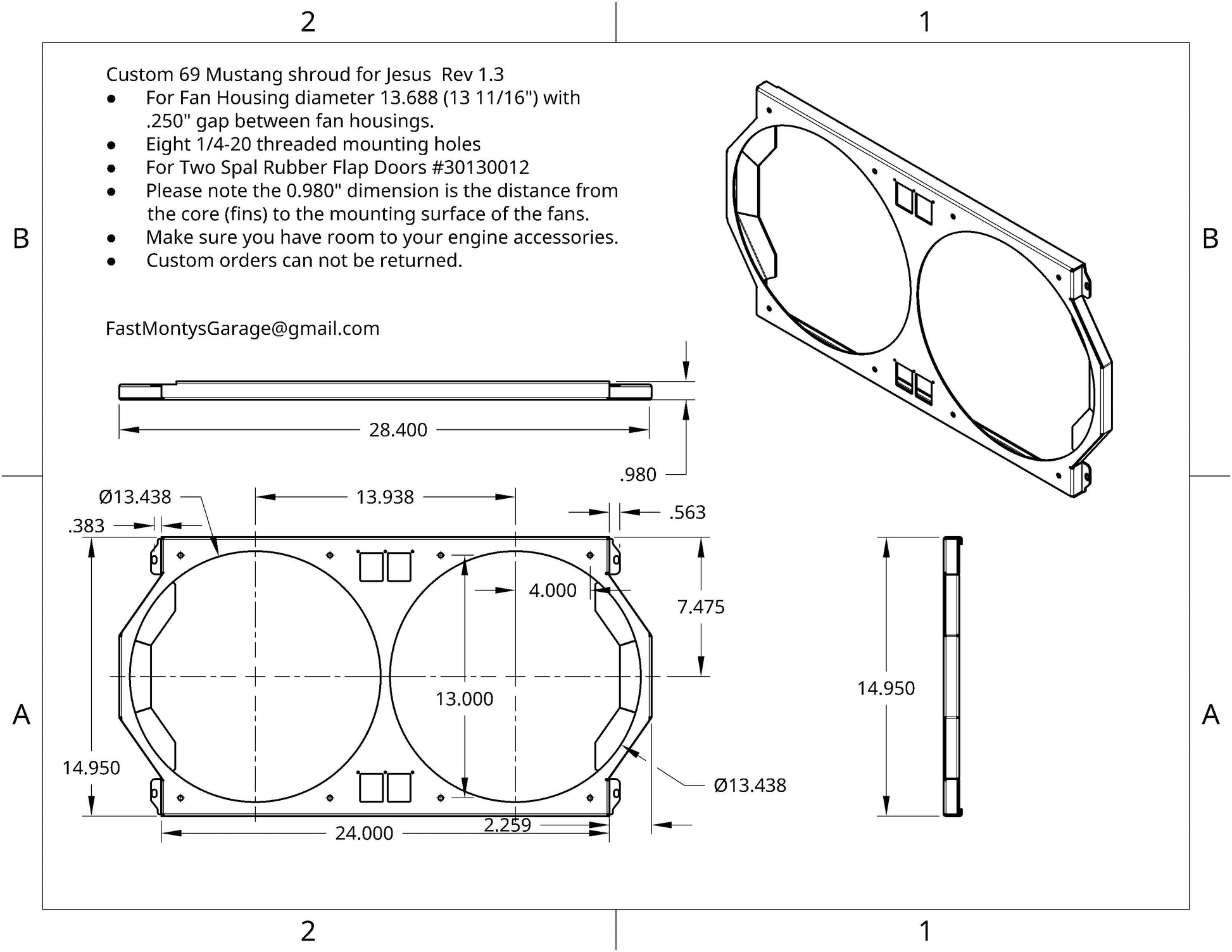

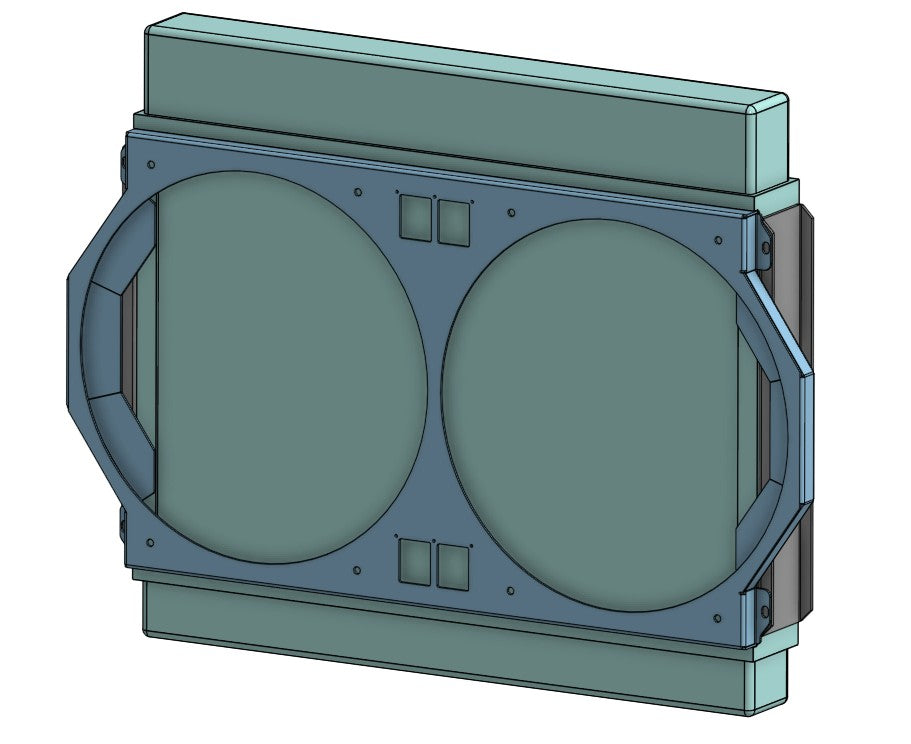

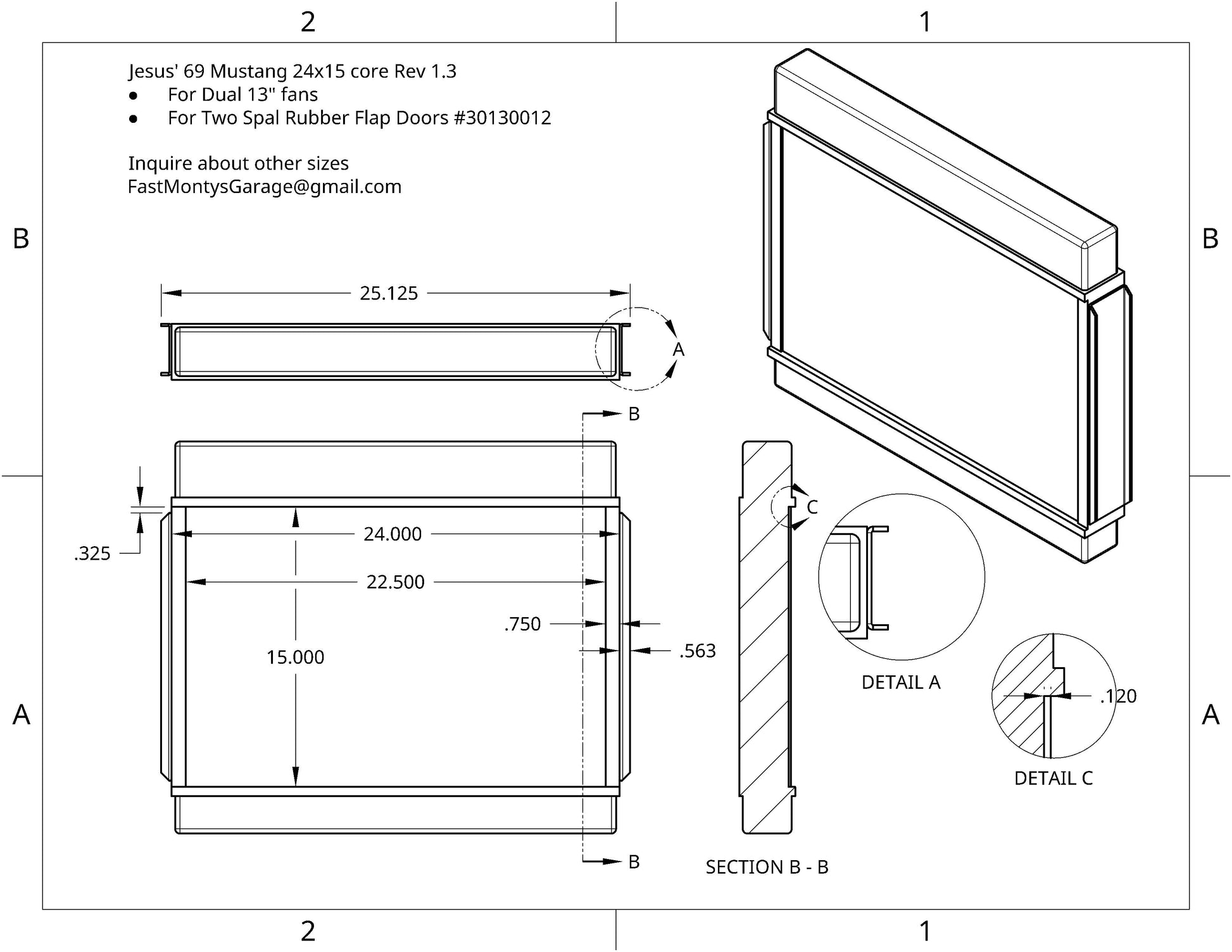

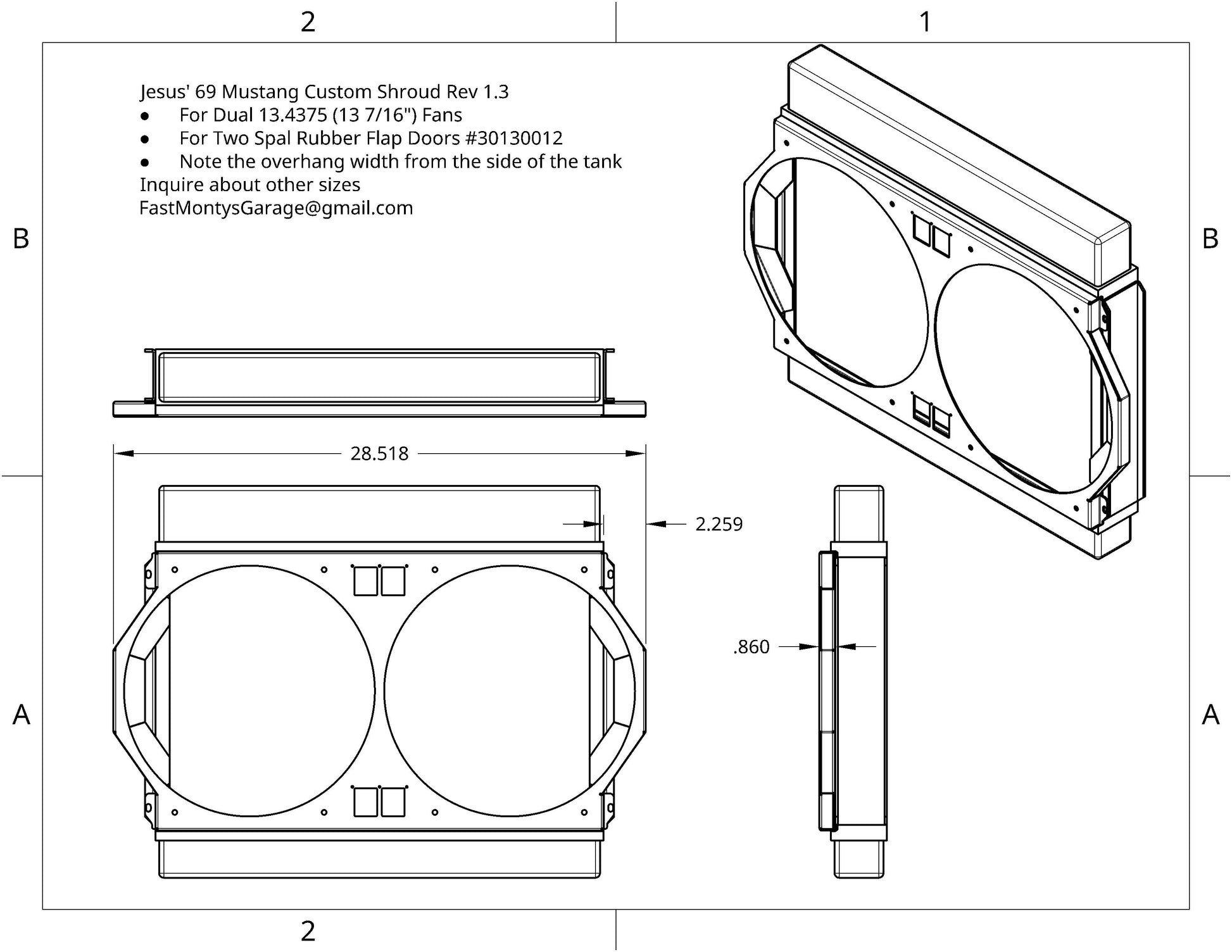

Designed for a 69 Mustang Downflow shroud with a 24 x 15 inch Core. The shroud is built for Dual Ford Taurus 13.5 inch fans, and fits Two Rubber flap doors, Spal part #30130012. The fan mounting holes are flush mount 1/4-20 nuts. Custom Designed by Monty and manufactured by SendCutSend. Please see attached drawings and renderings. This is a custom shroud, and can not be returned after being ordered. If your radiator is close to this size, please send me an email and we can discuss.
Fans, flap doors, and fasteners are NOT included. Please do an internet search for the flap door part number 30130012, pricing will range from $1.49 to $4.00 each.
Raw Aluminum lead time is around 1 week to ship, where Powder Coated lead time is around 2 weeks to ship. Both are dropped shipped directly from SendCutSend.
The Raw Aluminum version will have witness marks, as pictured near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.
