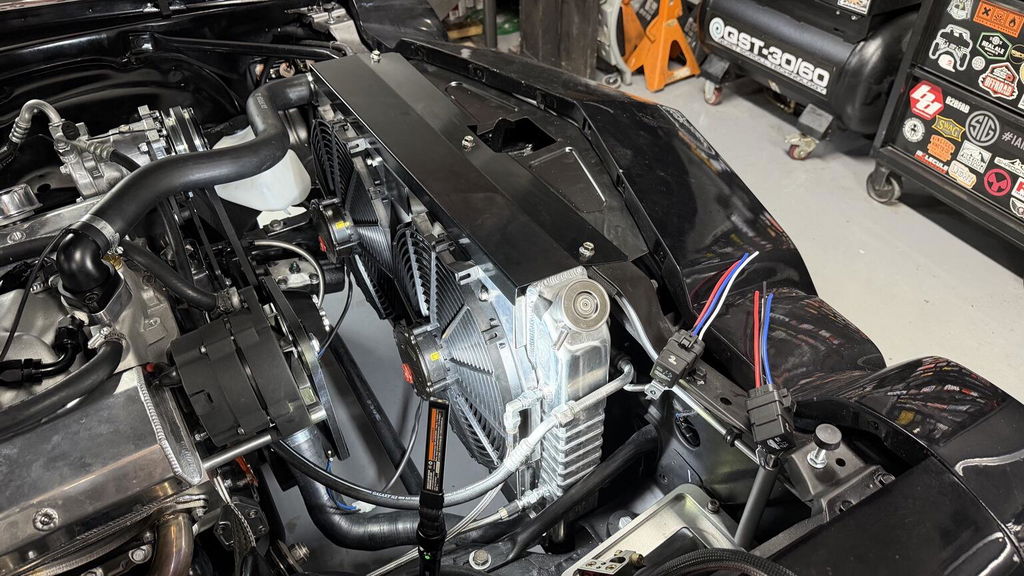

Keep your 1970 to 1981 Camaro running cool with this precision-engineered fan shroud
Upgrade your cooling system with our custom-designed shroud for the Cold Case CHC545 radiator that delivers measurably better cooling efficiency than the standard Cold Case shroud design. Through optimized fan sizing and precision-engineered airflow channels, this shroud maximizes the contact between your fan and radiator surface—ensuring every CFM of airflow does its job.
While the standard Cold Case shroud is a solid choice, our design takes cooling performance to the next level—ideal for high-performance builds, hot climates, or anyone who demands the absolute best from their cooling system.
Key Performance Advantages:

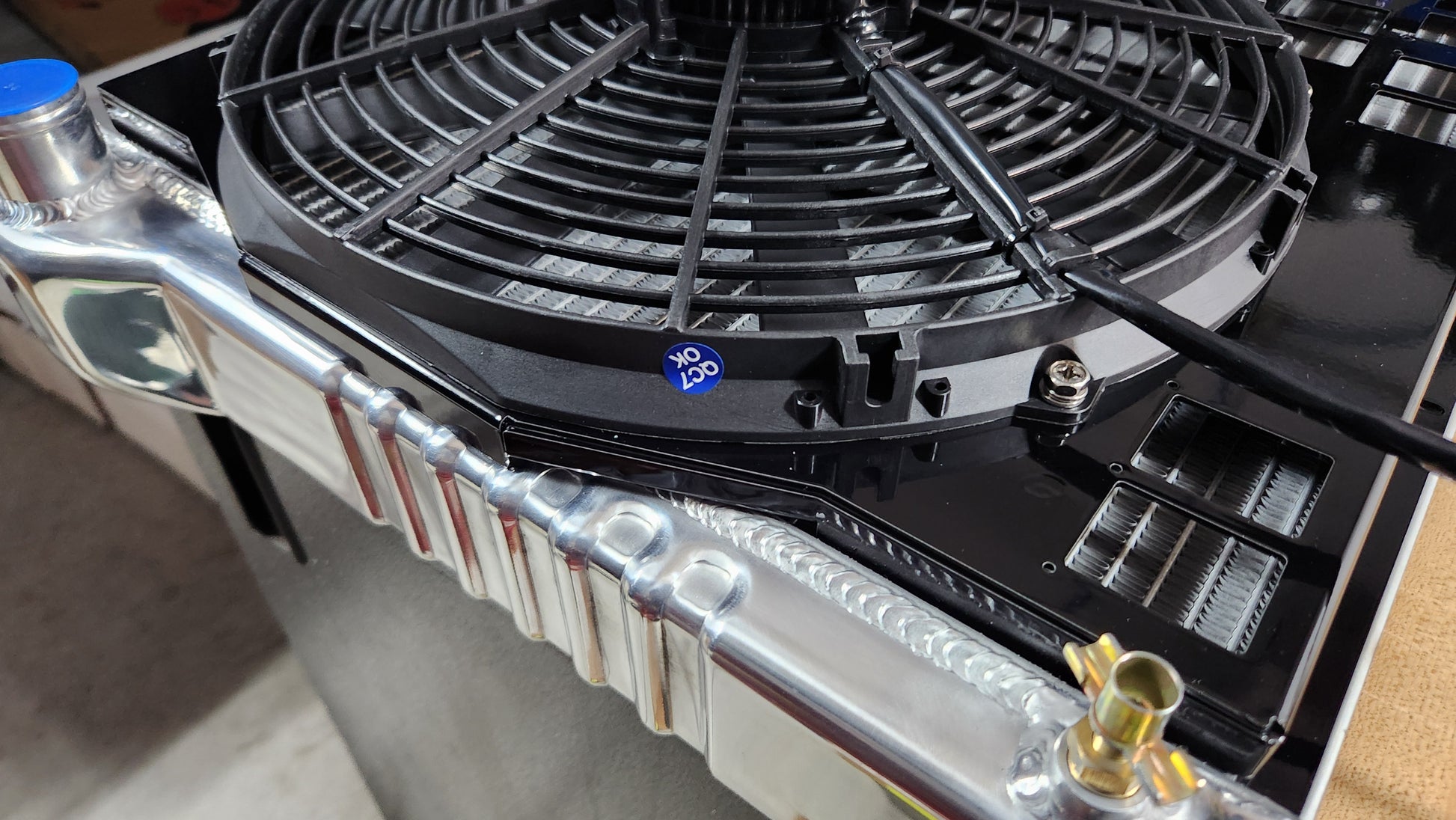

Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.

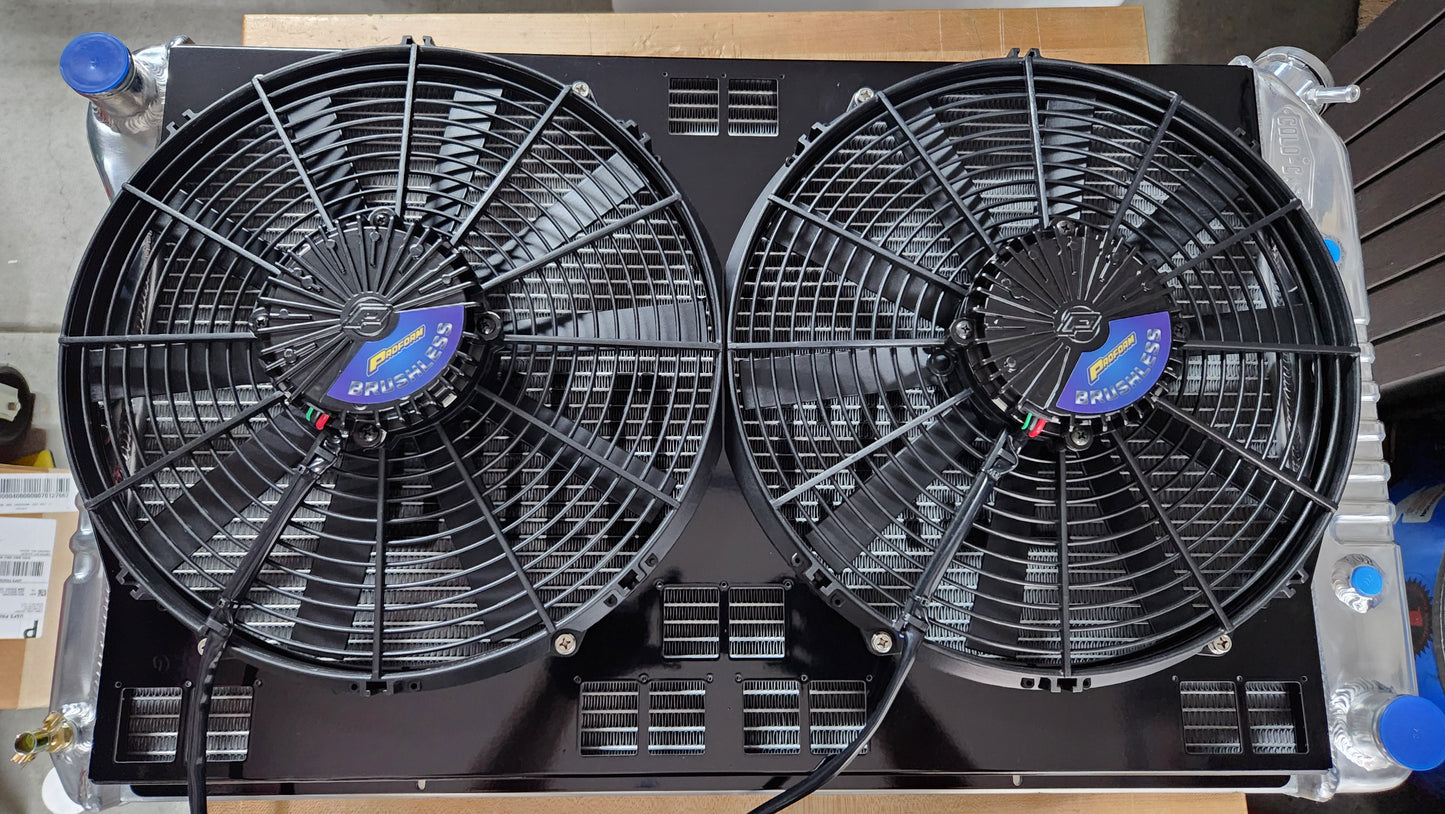

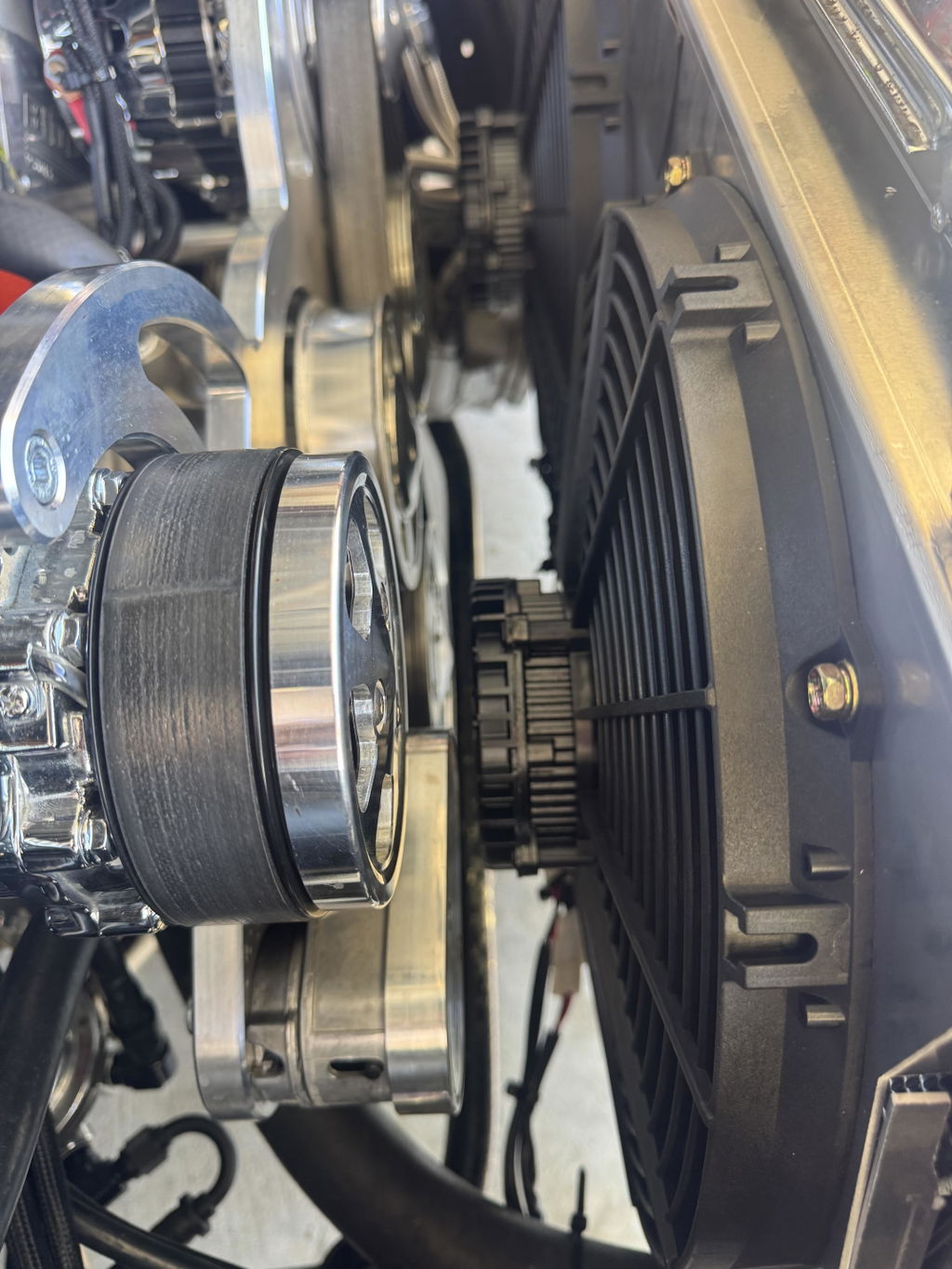

Optimized Fan Size: Direct fit 14" fans were selected by Monty

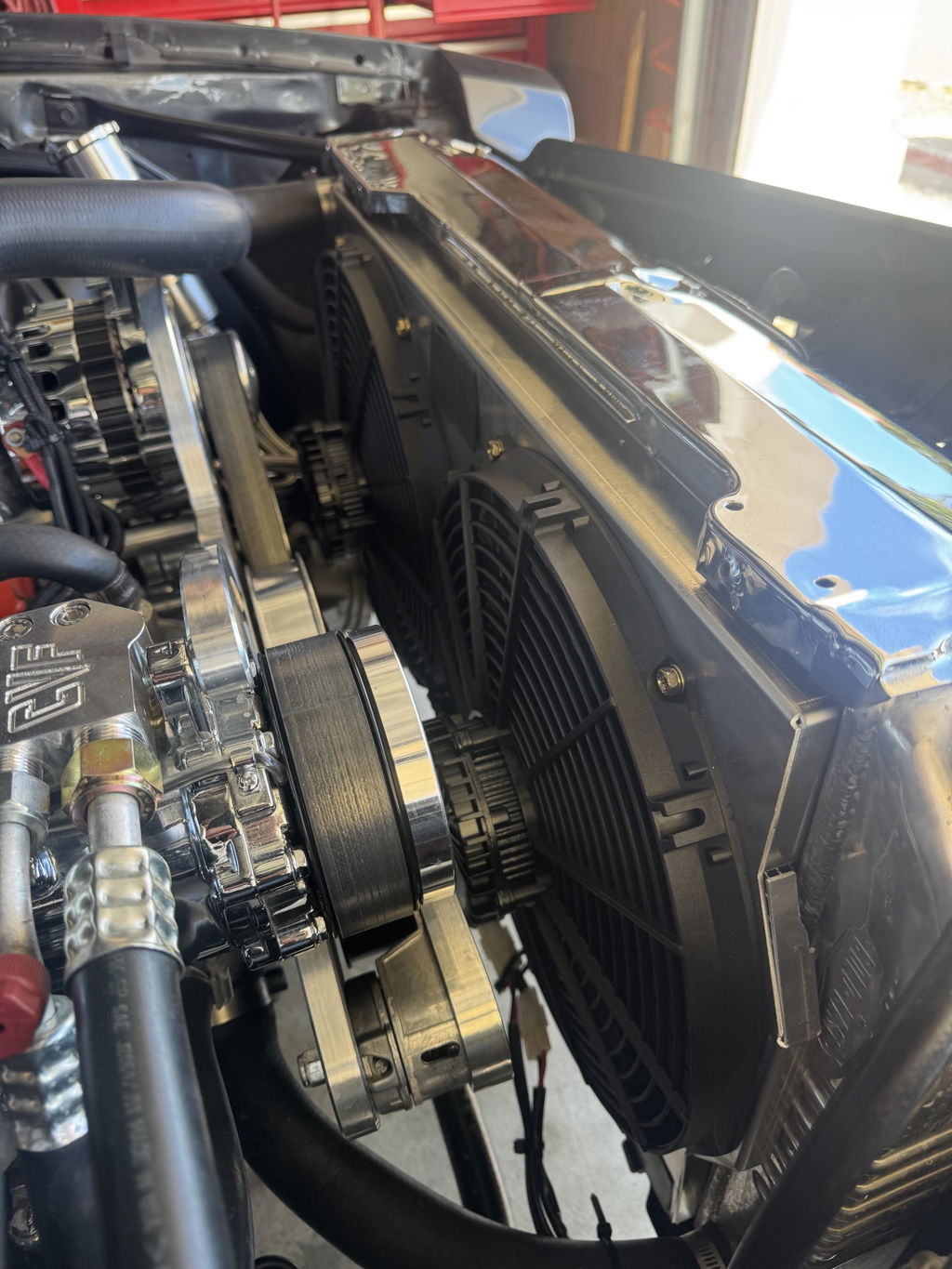

Better Fitment: Custom-contoured to the Cold Case Radiator for a truly integrated cooling solution, overlapping the side tanks, accommodating larger fans.
Compatible Fan Part Numbers (14" Fans):

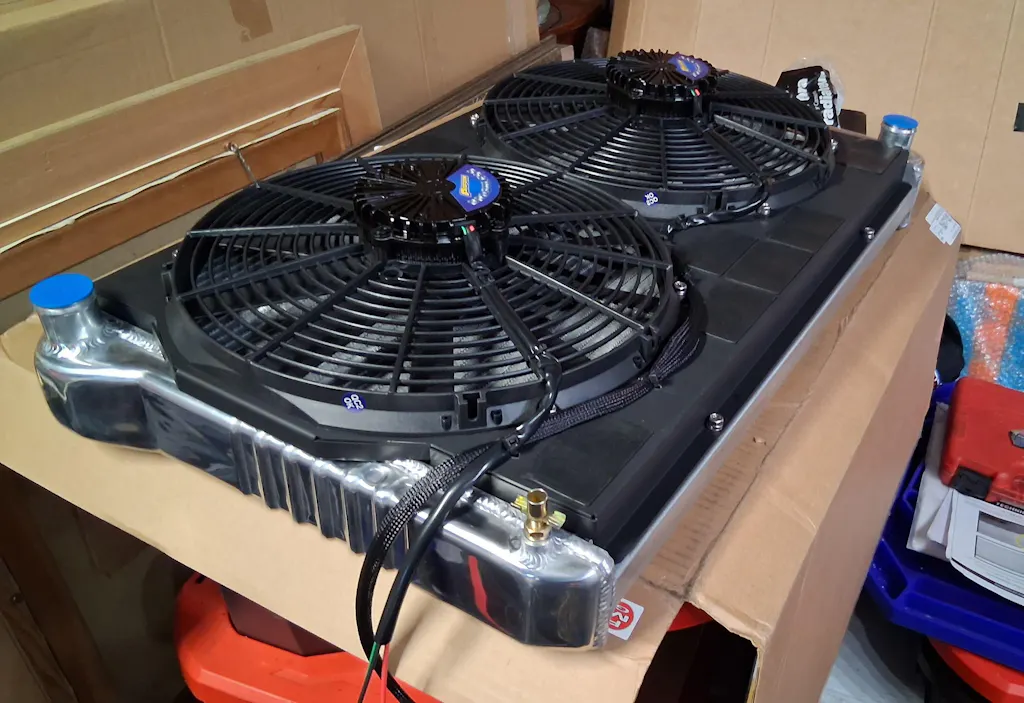

Spal 30102042 (14" Brushed High Performance Puller)
Proform 67035 (14" Low Profile BRUSHLESS)
Necessary Accessories for Installation (Not Included):

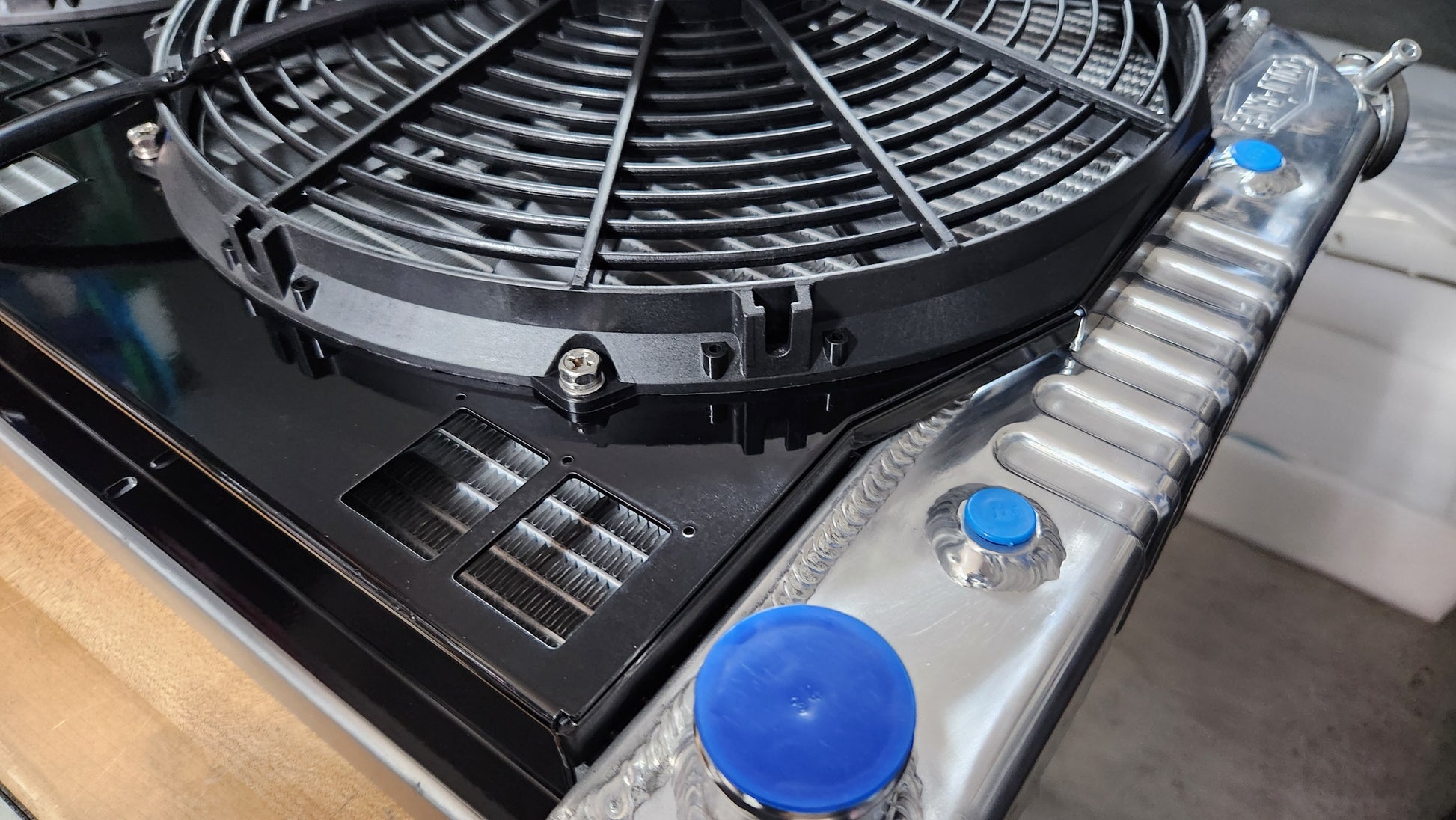

Fan mounting hardware M6x1 - 16mm long (Included with Powder Coated Shrouds)
Six rubber flap doors Spal part number 30130012
Fan relay and wiring harness (if not already installed)
Make sure each relay is rated for 30 to 40 amps. Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
Adjustable thermostat switch (recommended for automatic operation) typically included with most Fan Relay harnesses.
See the "Giant Fan Shrouds" video for installation tips.
Specifications:

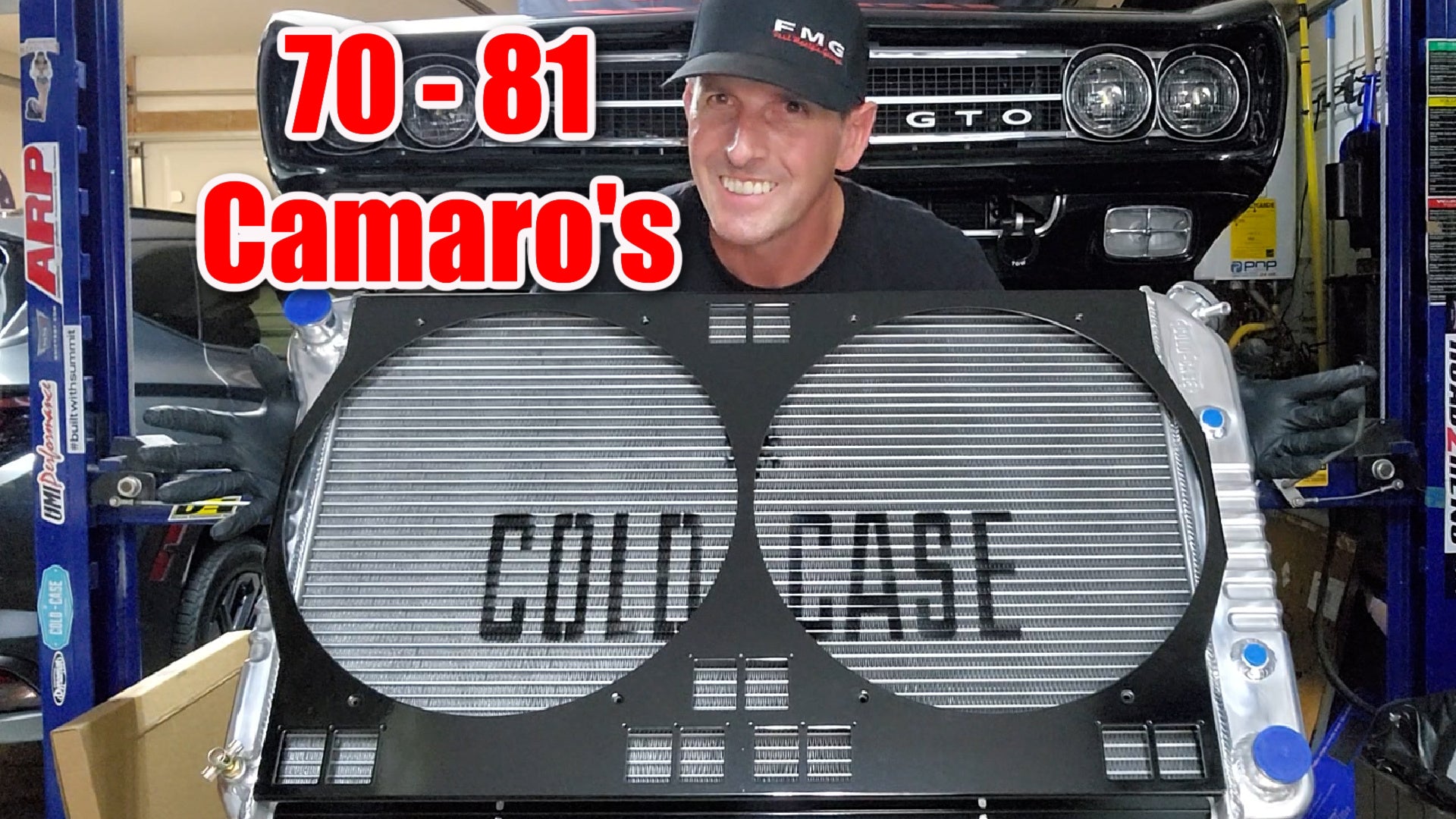

Fits 1970-1981 Chevrolet Camaro's, for Firebirds see the separate listing for GPF18

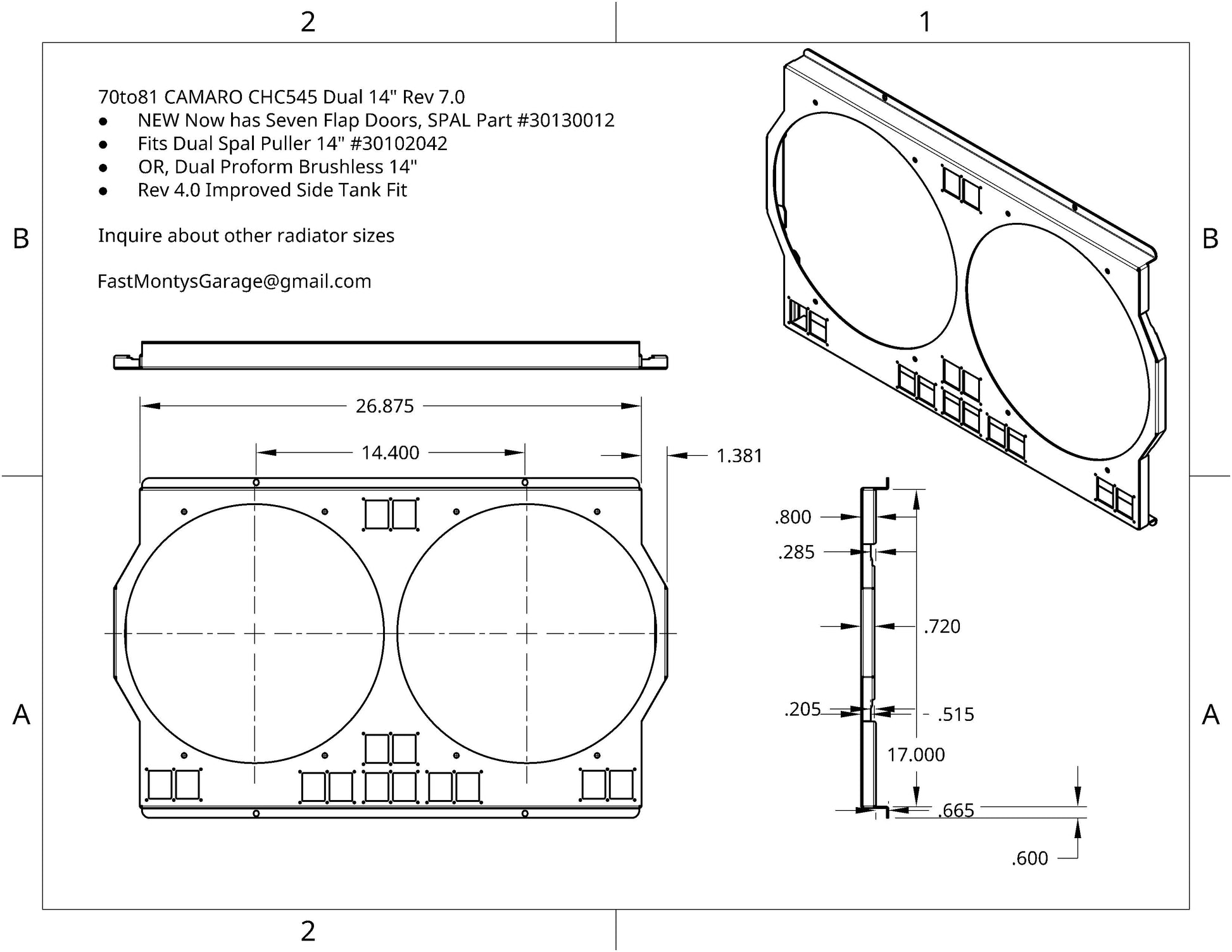

Designed specifically for Cold Case radiator models, CHC545, CHC545A, CHC545AK
For LS Conversion Radiators; CHC557A, and CHC557AK, Please see the 1970-1981 Firebird listing, as that radiator is the same size as the LS conversion radiator.

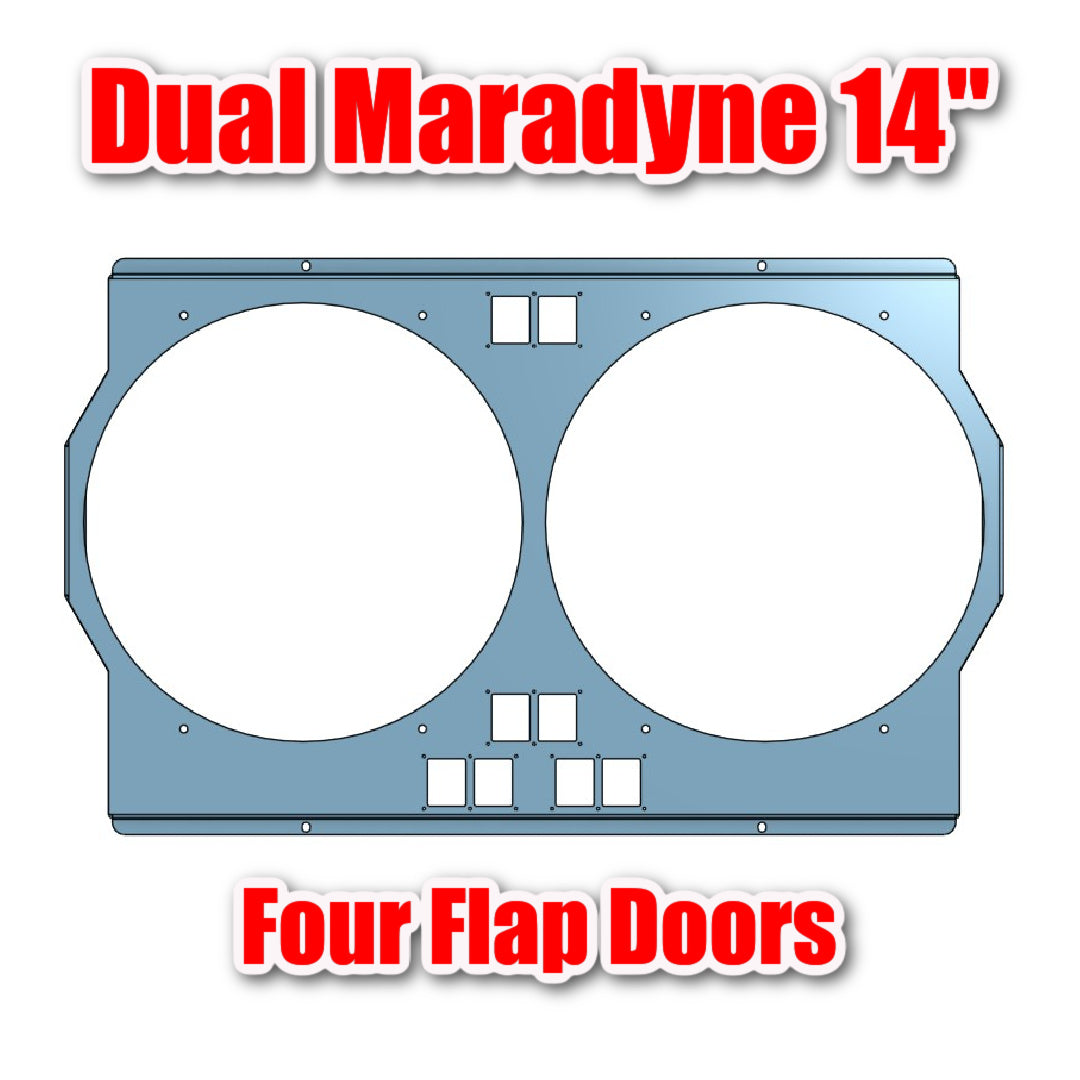

Accommodates 14" fans, inquire for different fans not listed

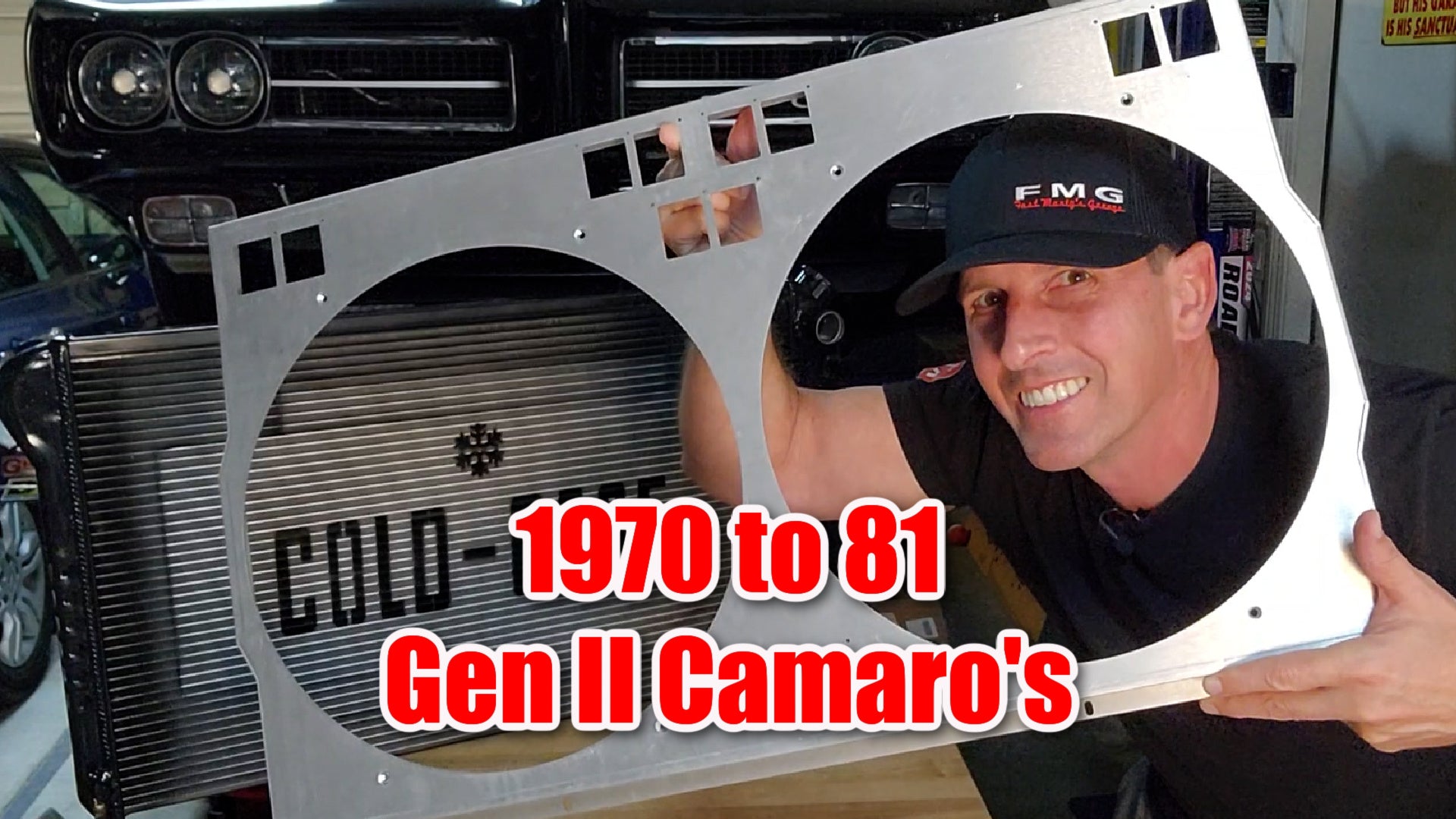

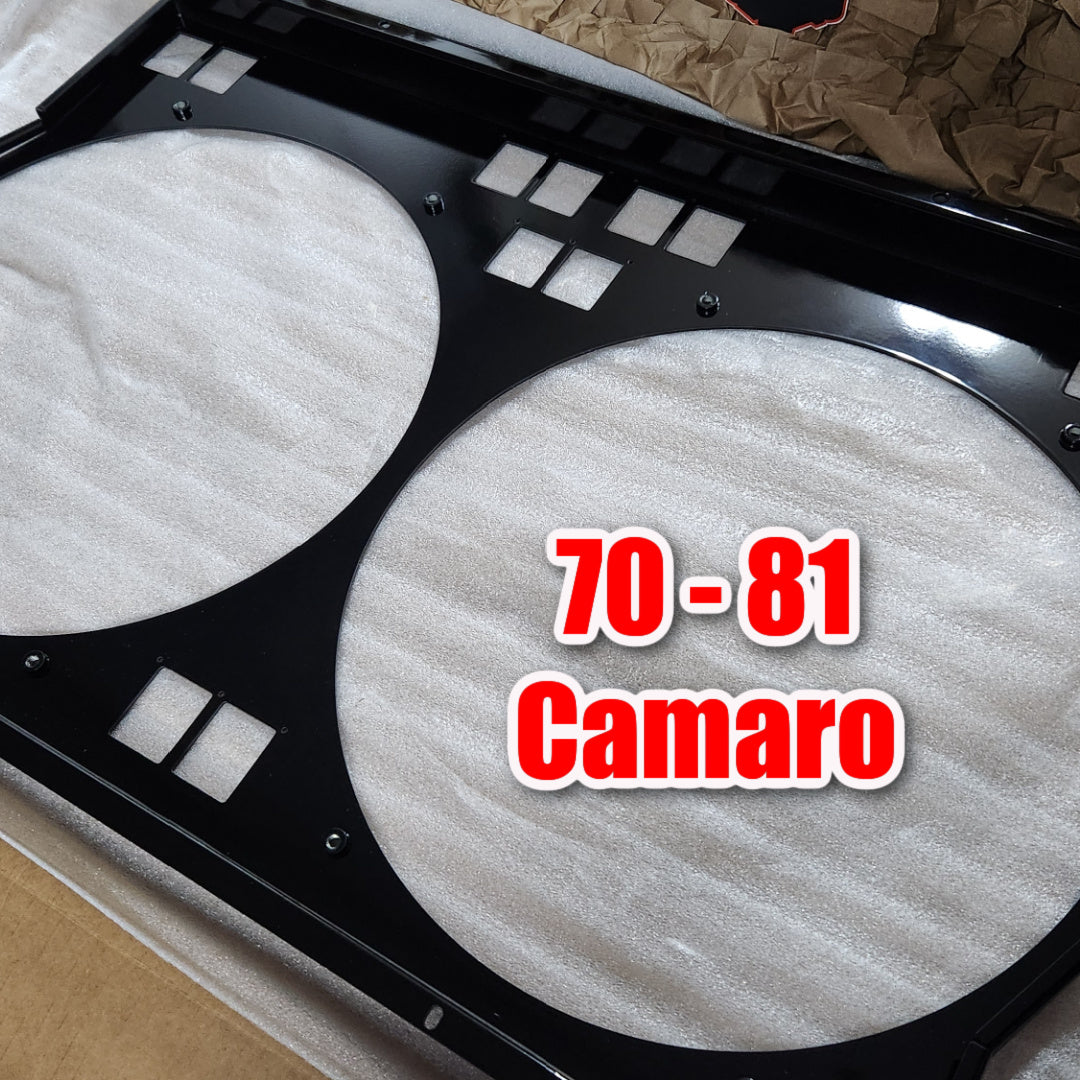

Available in powder coated black or raw aluminum finish
Raw Aluminum does have witness marks that can be cleaned with Scotchbrite, or a Magic Eraser
Precision CNC-cut from aircraft-grade aluminum
Made in the USA
Note: This is an aftermarket shroud designed to work with the Cold Case CHC545 radiator. It is not manufactured by Cold Case Radiators. Fans and installation accessories sold separately. Lead time for Raw Aluminum is around one week. If Powder Coated is out of stock, please order, as we do not replace stock without an existing order, lead time is two weeks.
