1970 to 81 Pontiac Firebird 14 inch Spal Brushless Shroud for Cold Case GPF18 or CHC557

1970–1981 Pontiac Firebird 14-Inch SPAL Brushless Fan Shroud | Cold Case GPF18 or CHC557

Build your second-generation Firebird's dual 14-inch SPAL brushless fan setup around a shroud custom-contoured to the Cold Case radiator. The design overlaps the side tanks to accommodate the listed fans, with flap doors that allow air to pass through at road speed. It also fits the Cold Case CHC557 LS-conversion radiator used in second-generation GM F-Body applications.

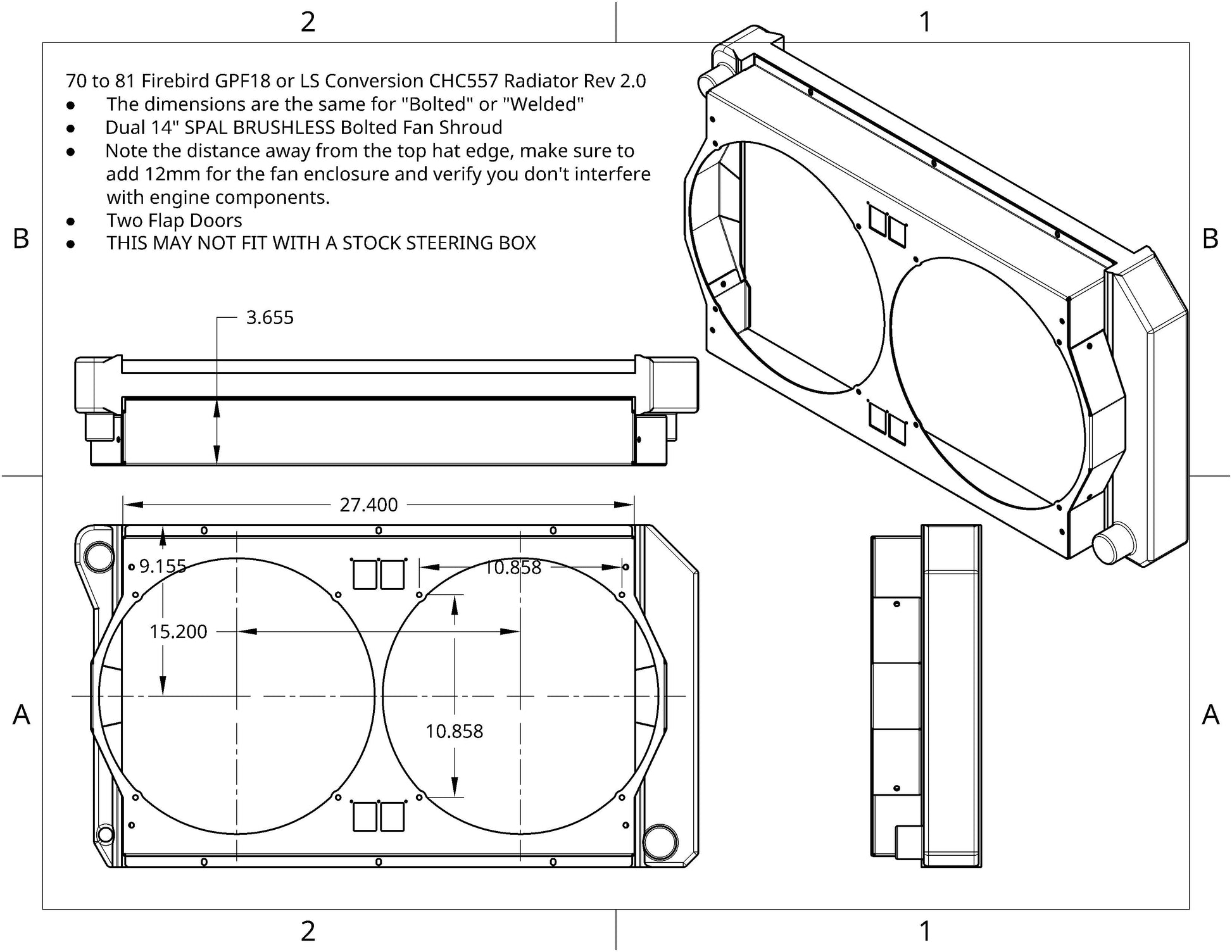

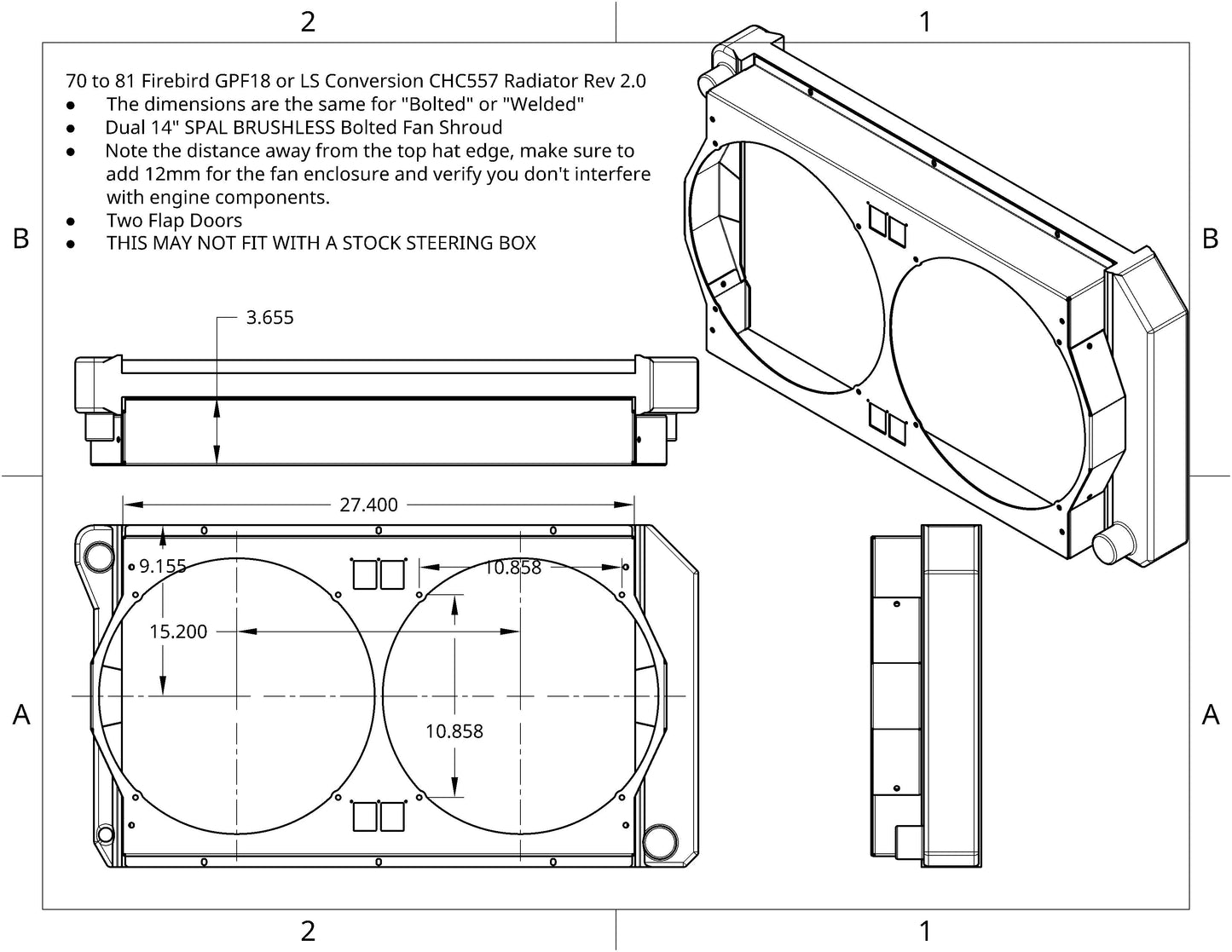

Important clearance warning: This shroud may not fit with a stock steering box. Double-check clearance before ordering.

Vehicle & Radiator Fitment

• Firebird: 1970–1981 Pontiac Firebird with Cold Case GPF18, GPF18A, GPF18B, GPF18AB, or GPF18K radiator.
• LS conversions: Cold Case CHC557 radiator used in second-generation GM F-Body applications.
• Camaro owners: for the standard Gen II Camaro radiator application, see the separate Camaro listing. That radiator is slightly narrower.
• Designed for the 14-inch SPAL brushless fans listed below. Contact Monty about other fans.

Need fans too? Save around 5% on the entire kit. Shroud & Fan Kit Builder — Build your kit here.

Compatible SPAL Brushless Fans

Fans are sold separately.

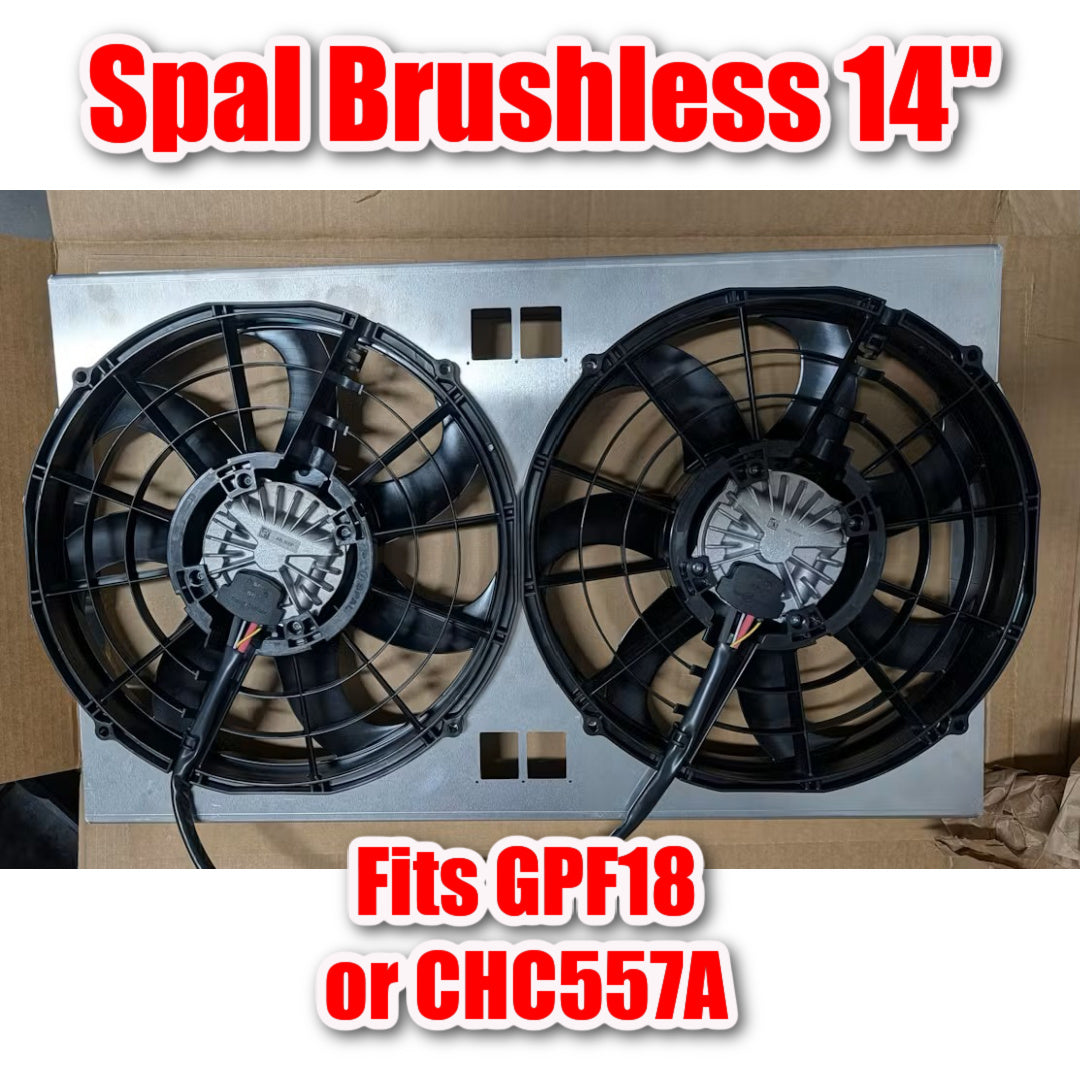

• SPAL 30107102-PKG: 14-inch, 500W drop-in brushless fan, VA116-ABL505/105A. Buy here
• SPAL 30107103-PKG: 14-inch, 300W drop-in brushless fan, VA116-ABL324P/N-105A. Buy here

Compare real-world performance in Monty's independent fan CFM test results.

Construction & Finish Options

• Precision CNC-cut aircraft-grade aluminum, made in the USA.

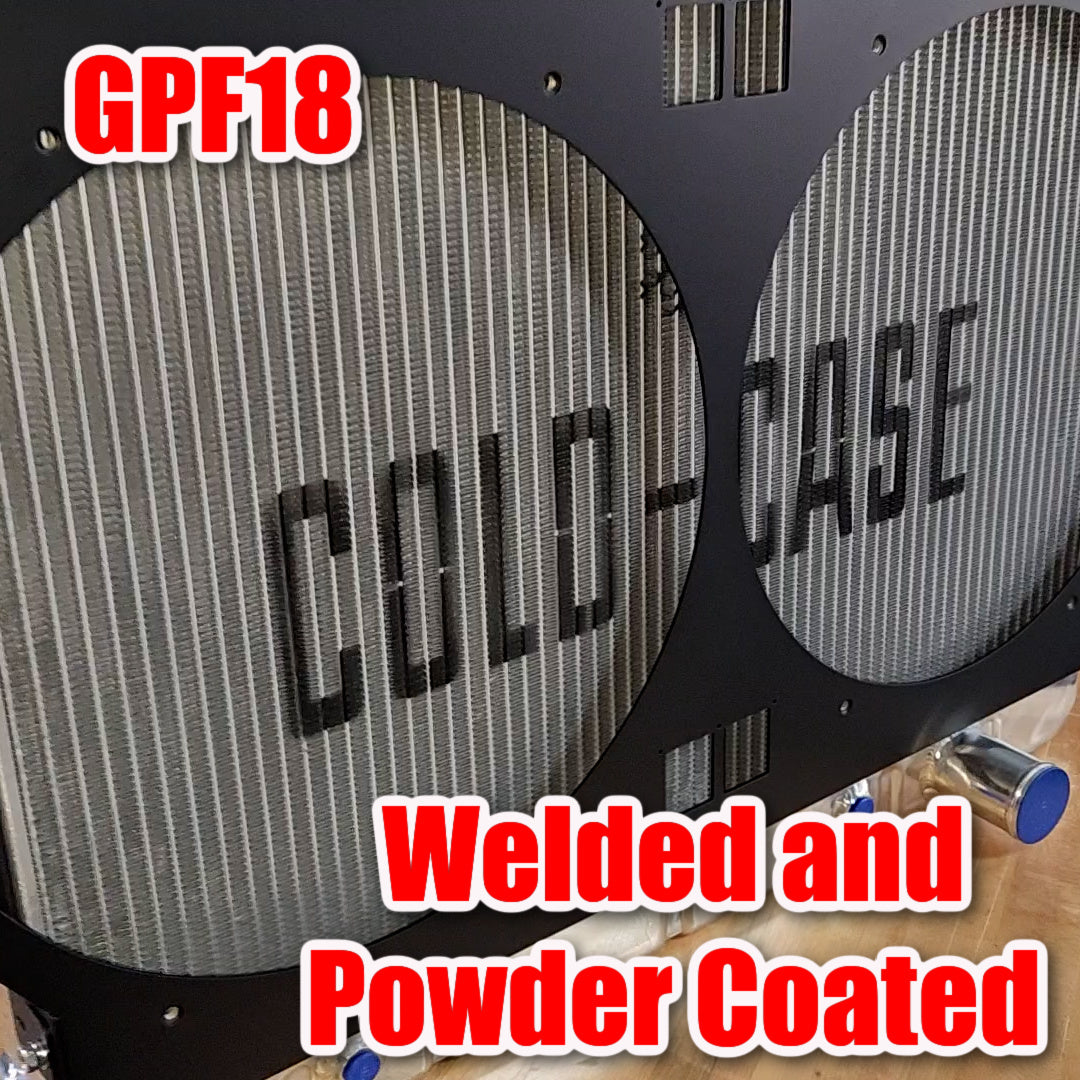

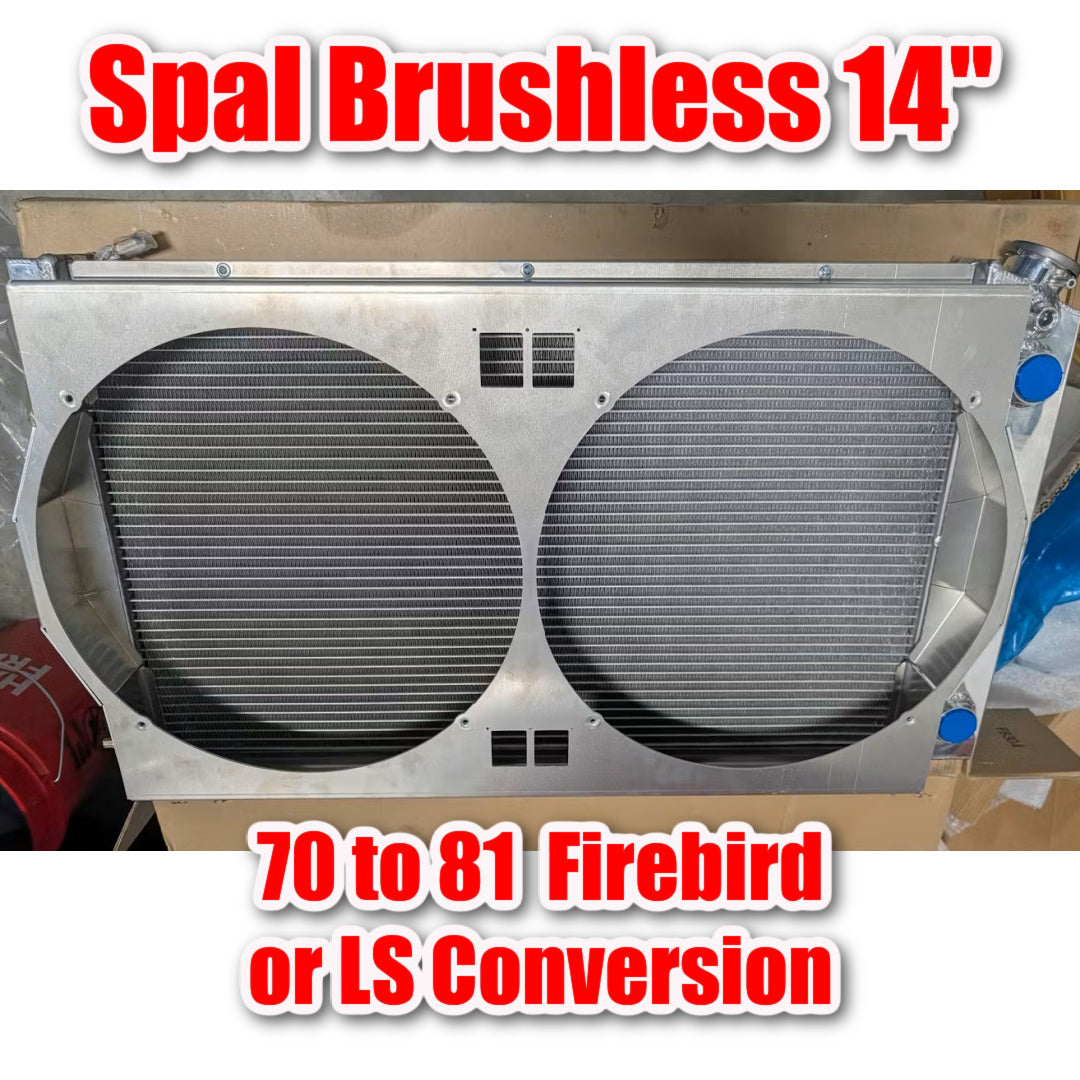

• Available in raw bolted, raw welded, or welded and powder coated versions.
• Raw aluminum has witness marks that can be cleaned with Scotch Brite or a Magic Eraser.
• For powder coating, review the color options. We'll email after your order for your color preference.

Installation Hardware & Accessories

Fans and installation accessories are not included.

• Fan mounting hardware: M6x1 fasteners, 32mm long.
• Bolted version: eight additional M6x1 fasteners, 10mm long.
• Flap doors: two SPAL 30130012 rubber flap doors. Buy here
• Brushless fan controller, optional.
• Fan relay and wiring harness, if not already installed. Each relay should be rated for 30–50 amps depending on the fan selected. Follow the selected fan's wiring instructions.

Relay and harness manufacturers include SPAL, Painless Performance, Derale, Ron Davis, and American Autowire. Monty's personal Painless Performance setup uses 195°F on and 185°F off.

See our Radiator Fan Shroud Installation Guide for step-by-step instructions, and see the “NEW Firebirds+Camaros” video for installation tips.

Shipping & Lead Time

• Raw aluminum: approximately one week.
• Powder coated: approximately two weeks.

This is an aftermarket shroud designed for the Cold Case GPF18 and CHC557 radiators. It is not manufactured by Cold Case Radiators.

Looking for a deal? Check Monty's Discounted Parts and Blems for working shrouds with minor cosmetic blemishes.
