1982–1992 GM F-Body Dual 12-Inch Fan Shroud for Cold Case LMP590

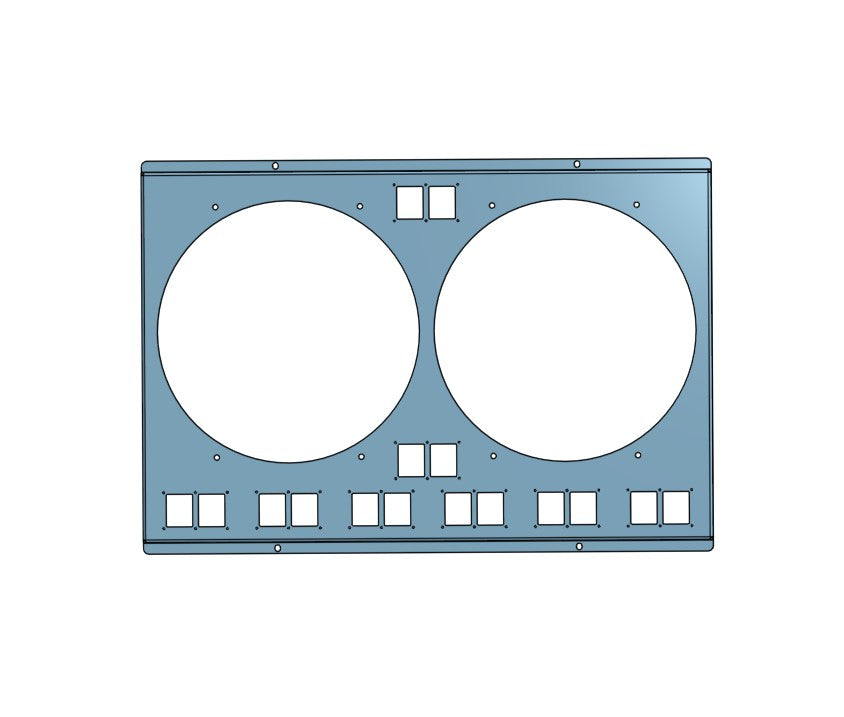

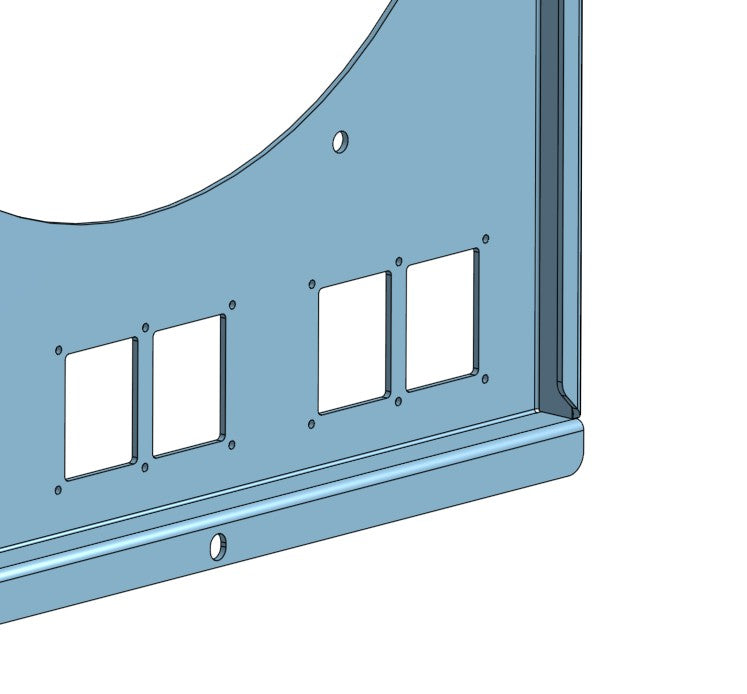

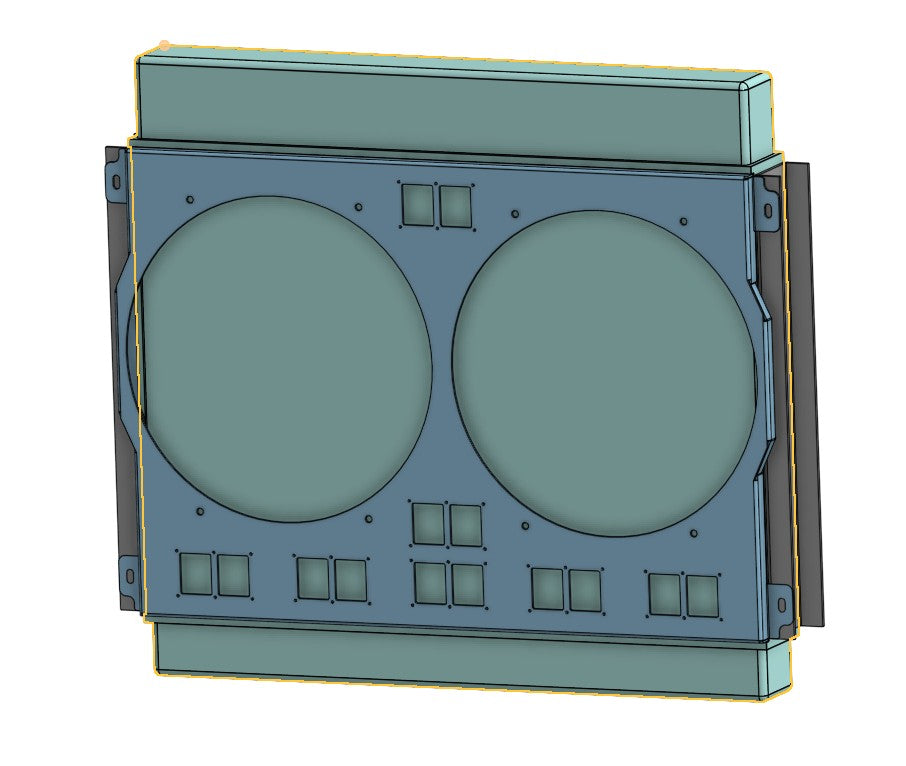

Build your third-generation Camaro or Firebird's cooling setup around a precision CNC-cut, aircraft-grade aluminum shroud made in the USA. The custom-contoured, reversible design lets you position the row of flap doors along the top of the radiator when engine clearance calls for it. Eight rubber flap doors allow pass-through airflow at road speed.

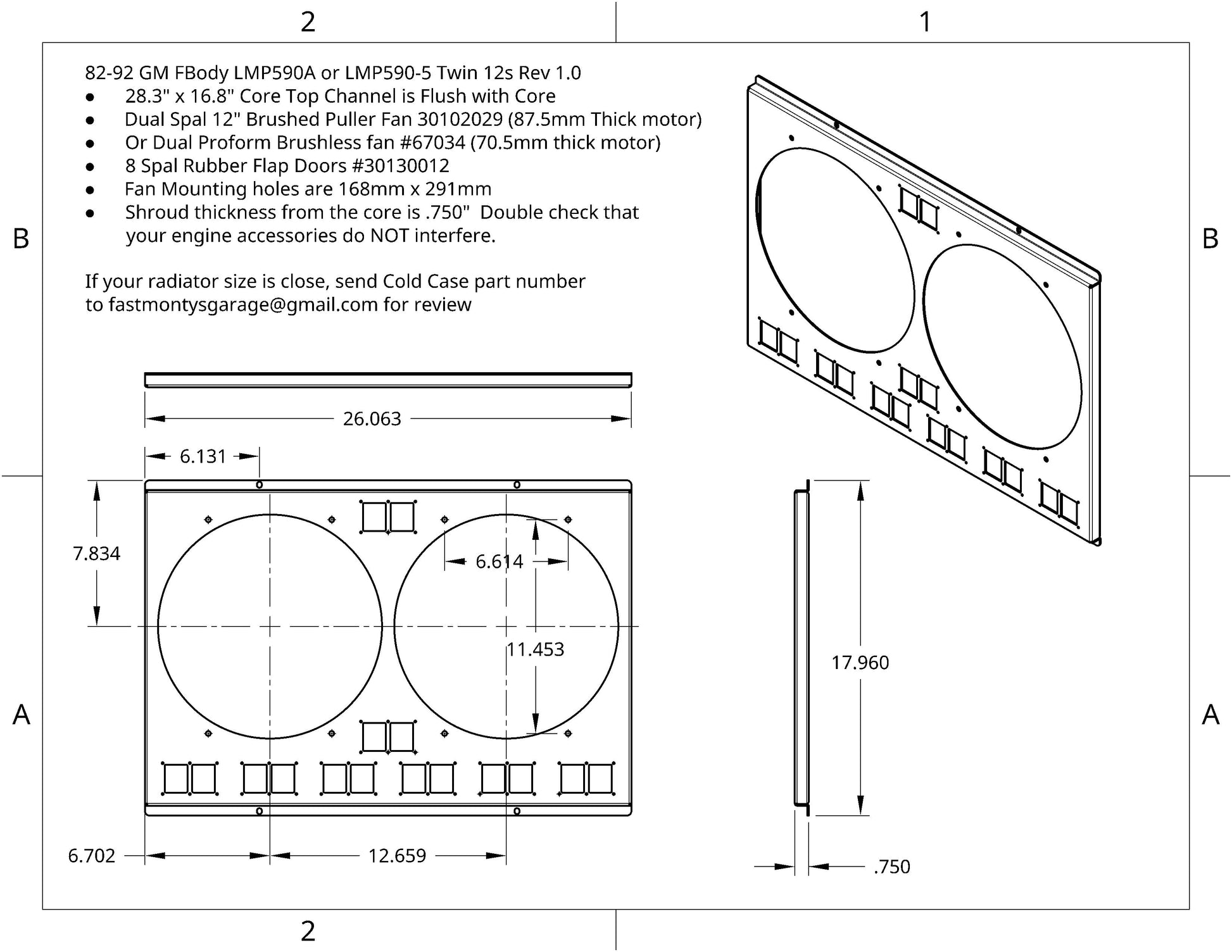

Check clearance before ordering: Compare the dimensions on the attached specification sheet with your engine accessories and available space. Confirm clearance for both the shroud and your selected fans.

Vehicle and Radiator Fitment

• Fits 1982–1992 Chevrolet Camaro and Pontiac Firebird.

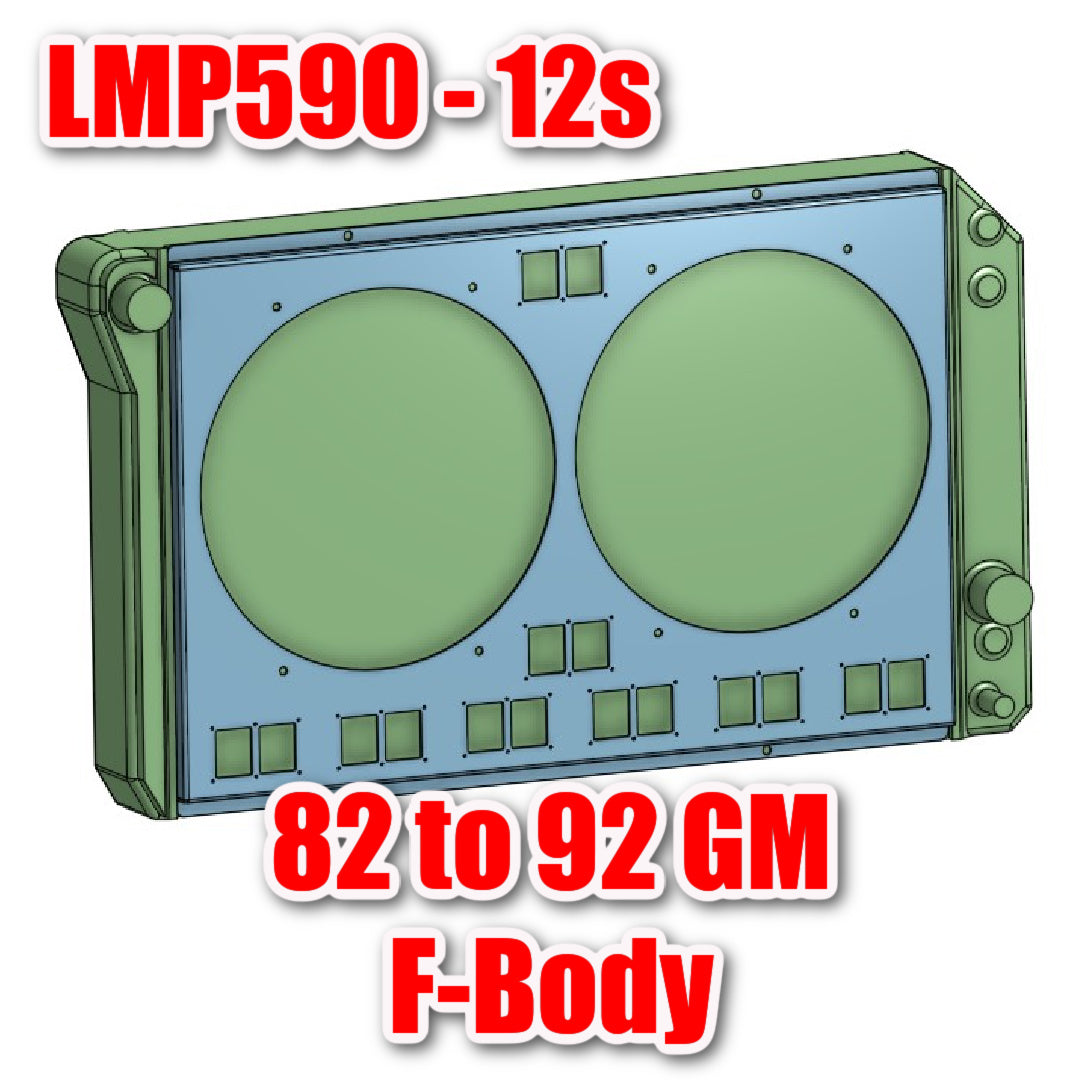

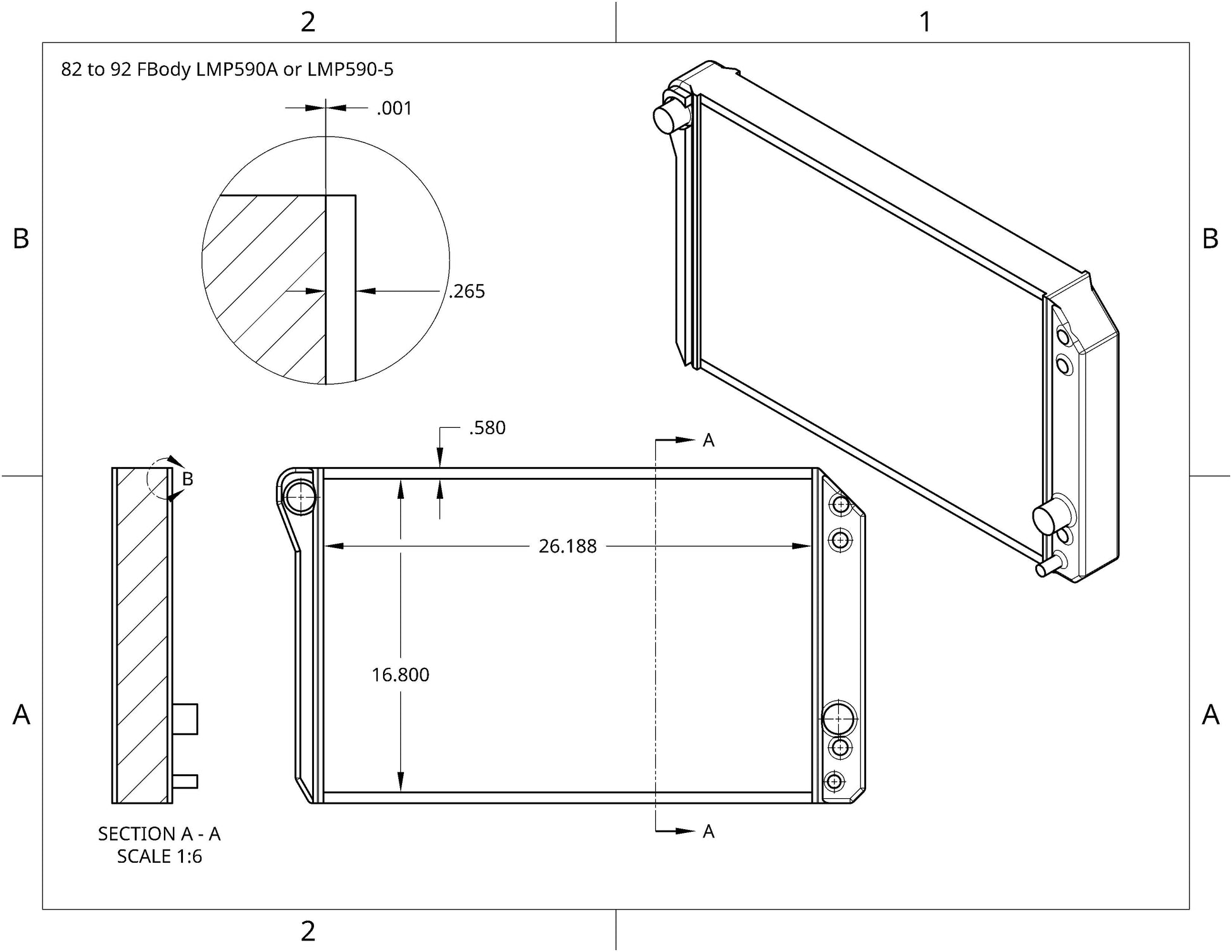

• Designed specifically for Cold Case LMP590A and LMP590-5 LS-conversion radiators.
• Accommodates dual 12-inch fans. Contact us about fan models not listed below, and double-check available space.

Compatible 12-Inch Fans

• SPAL 30102029: 12-inch brushed high-performance puller fan. Buy here.
• Proform 67034 and 67038: 12-inch low-profile brushless fans.
• Maradyne 12-inch fans: Contact us to confirm the specific model and clearance before ordering.

Compare options using Monty's independent fan CFM test results.

Need fans too? Save around 5% on the entire kit. Shroud & Fan Kit Builder — Build your kit here.

Installation Hardware and Accessories

• Fan mounting hardware: M6x1 fasteners, 16mm long, sold separately.
• Eight rubber flap doors: SPAL 30130012, sold separately. Buy here.
• Fan relay and wiring harness: Needed if not already installed. Each relay should be rated for 30–40 amps. Options include SPAL, Painless Performance, Derale, Ron Davis, and American Autowire.
• Adjustable thermostat switch: Recommended for automatic operation and typically included with most fan-relay harnesses. Monty's personal Painless Performance setup switches on at 195°F and off at 185°F.

See the “Firebird + Camaro” video below for installation tips, and follow our Radiator Fan Shroud Installation Guide.

Finishes and What's Included

• Choose raw aluminum or custom color from the available finish options.
• Raw aluminum may have witness marks that can be cleaned with Scotch-Brite or a Magic Eraser.
• Fans and installation accessories are sold separately.

Lead Times and Additional Information

• Raw aluminum: Around one week.
• Powder coated: Around two weeks.

This is an aftermarket shroud designed to work with the Cold Case LMP590 radiator. It is not manufactured by Cold Case Radiators.

Check Monty's Discounted Parts and Blems for working shrouds with minor blemishes.
