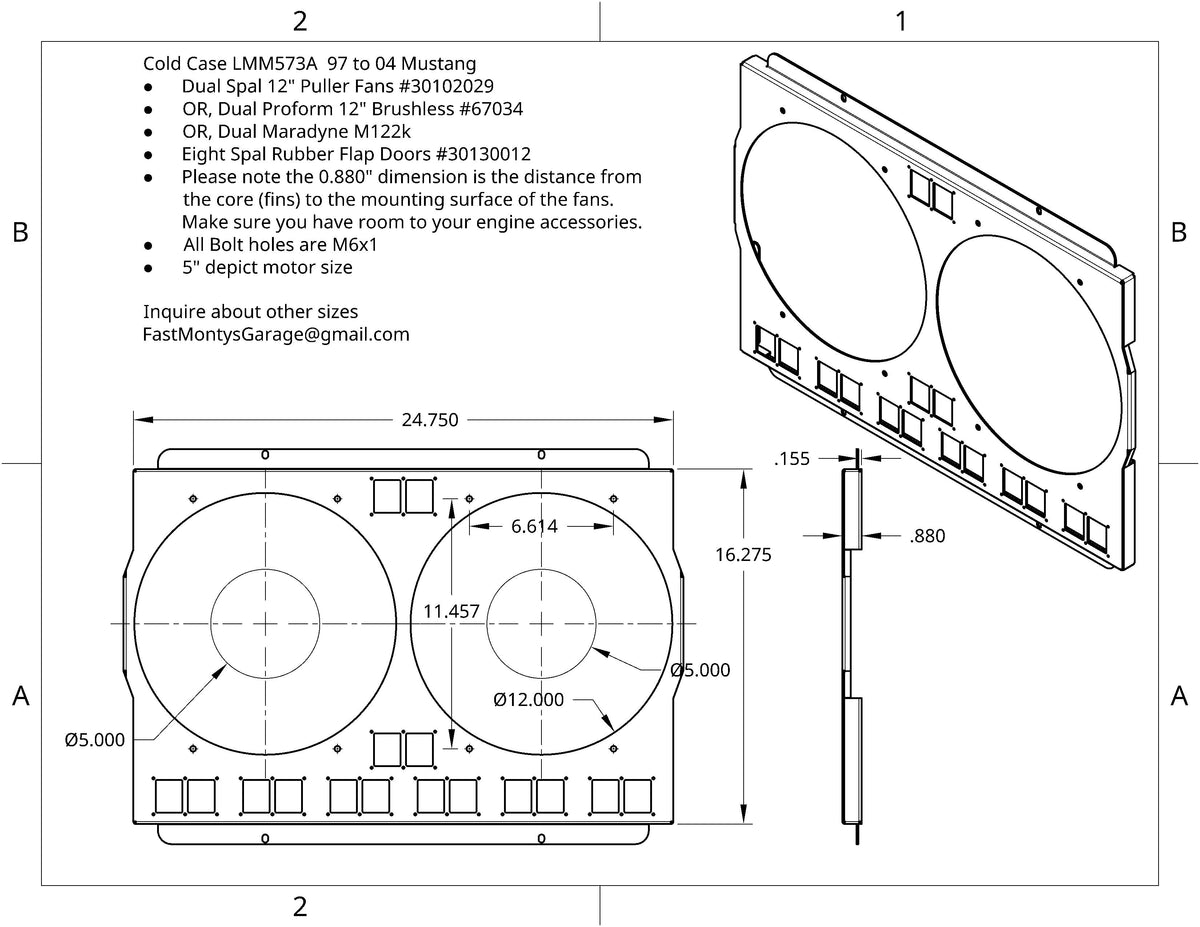

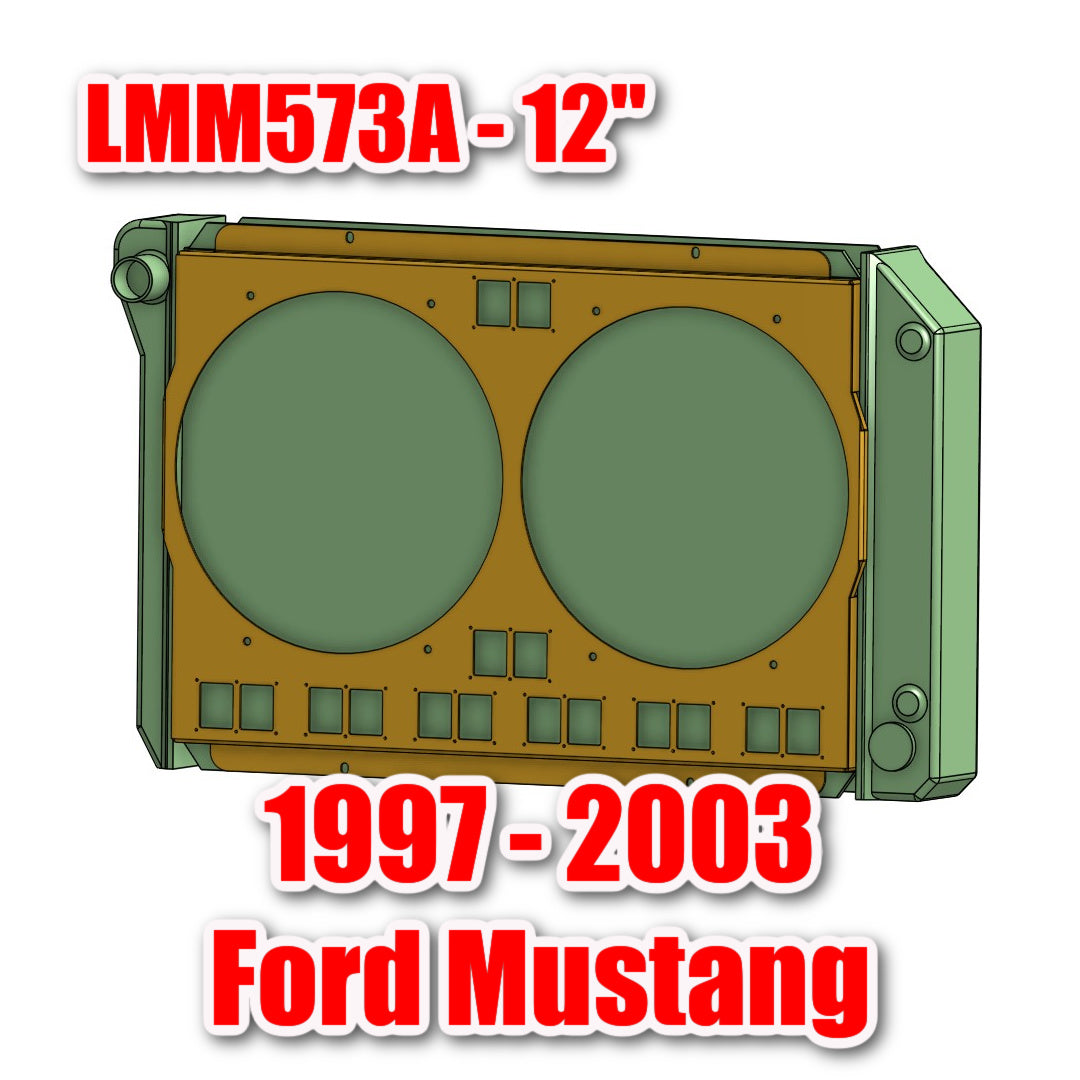

1997 to 2004 Ford Mustang - Dual 12 inch Fan Shroud for ColdCase LMM573A

1997–2004 Ford Mustang Dual 12-Inch Fan Shroud for Cold Case LMM573A

Build your Mustang's dual-fan cooling setup around a shroud custom designed by Monty, manufactured and drop shipped by SendCutSend. Precision CNC-cut from aircraft-grade aluminum and made in the USA, this made-to-order shroud uses eight rubber flap doors for pass-through airflow at road speed.

Vehicle and Radiator Fitment

• Fits 1997–2004 Ford Mustang applications using the Cold Case LMM573A radiator.
• Designed for the dual 12-inch fan models listed below.

Compatible 12-Inch Fans

• SPAL 30102029: 12-inch brushed high-performance puller fan. Buy here.
• SPAL 30101522: 12-inch brushed puller fan.
• Proform 67034: 12-inch brushless fan featuring soft start.
• Maradyne M122K: 12-inch fan. Buy here.

Compare options using Monty's independent fan CFM test results.

Need fans too? Save around 5% on the entire kit. Shroud & Fan Kit Builder — Build your kit here.

Installation Hardware and Accessories

• Fan mounting: Eight threaded M6x1 holes.
• Side brackets: Included, with four M6x1 threaded mounting holes.
• Fasteners: M6x1, 16mm long, eight for fan mounting and four for side bracket mounting. Sold separately.
• Bracket attachment: Secure the side brackets using 3/16-inch pop rivets. Take care not to drill too far.
• Eight rubber flap doors: SPAL 30130012, sold separately. Buy here.
• Fan relay and wiring harness: Needed if not already installed.
• Adjustable thermostat switch: Recommended for automatic operation and typically included with most fan-relay harnesses.

See our Radiator Fan Shroud Installation Guide for step-by-step instructions.

Finish and What's Included

• Raw aluminum is the current selectable finish.
• For custom powder coating, contact us to confirm availability. Color selection is confirmed by email.
• Raw aluminum has witness marks near the bends. Most can be removed with a Magic Eraser, or you can scuff the entire surface with red Scotch-Brite for a uniform appearance.
• Side brackets are included. Fans, flap doors, and fasteners are not included.

Shipping and Lead Times

• Raw aluminum: Approximately one week.
• Custom powder coat, when available: Approximately two weeks.
• Made to order and drop shipped directly from SendCutSend.

All drop shipped sales are final.

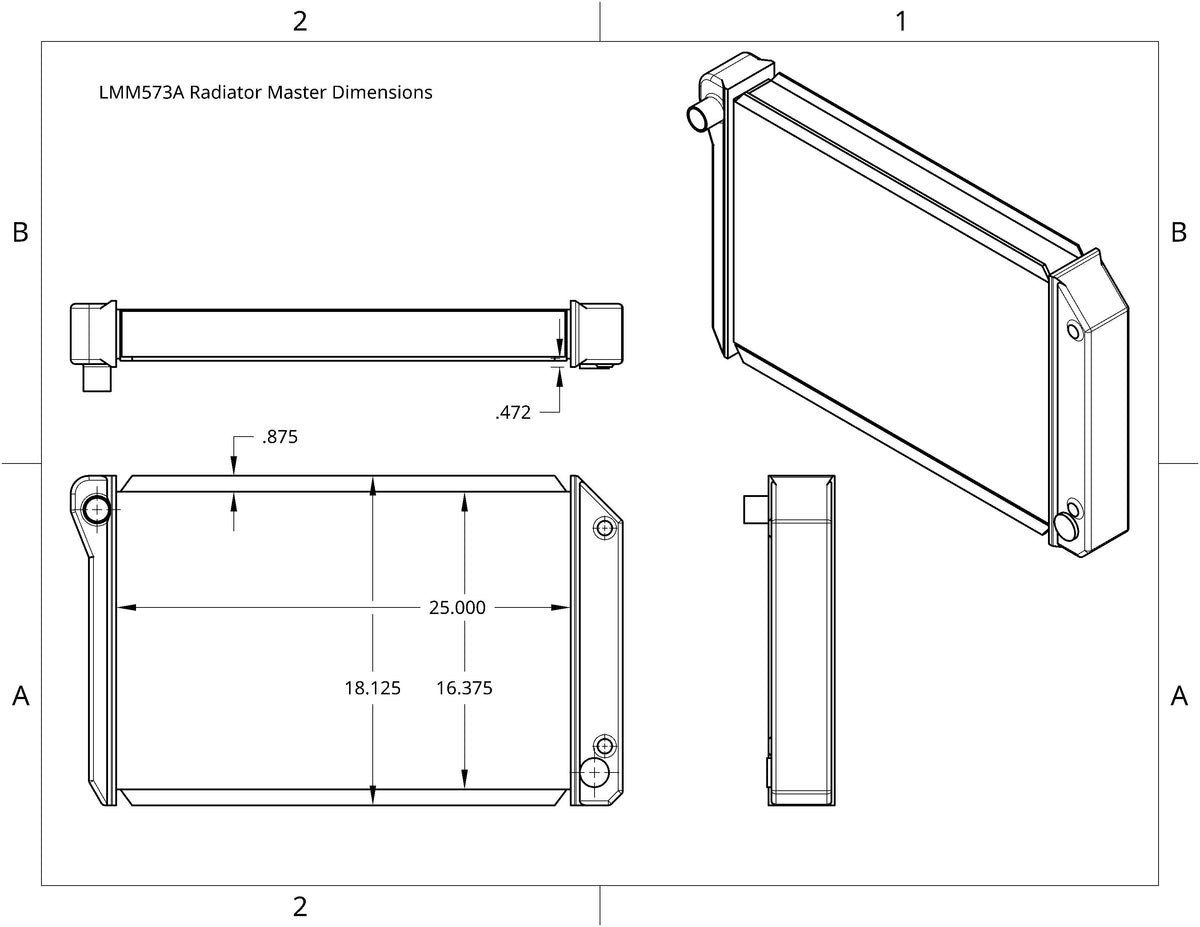

This is an aftermarket shroud designed to work with the Cold Case LMM573A radiator. It is not manufactured by Cold Case Radiators.

Check Monty's Discounted Parts and Blems for working shrouds with minor blemishes.
