2000 to 2007 Cadillac CTS-V - Dual 12 inch Fan Shroud for ColdCase CHD926

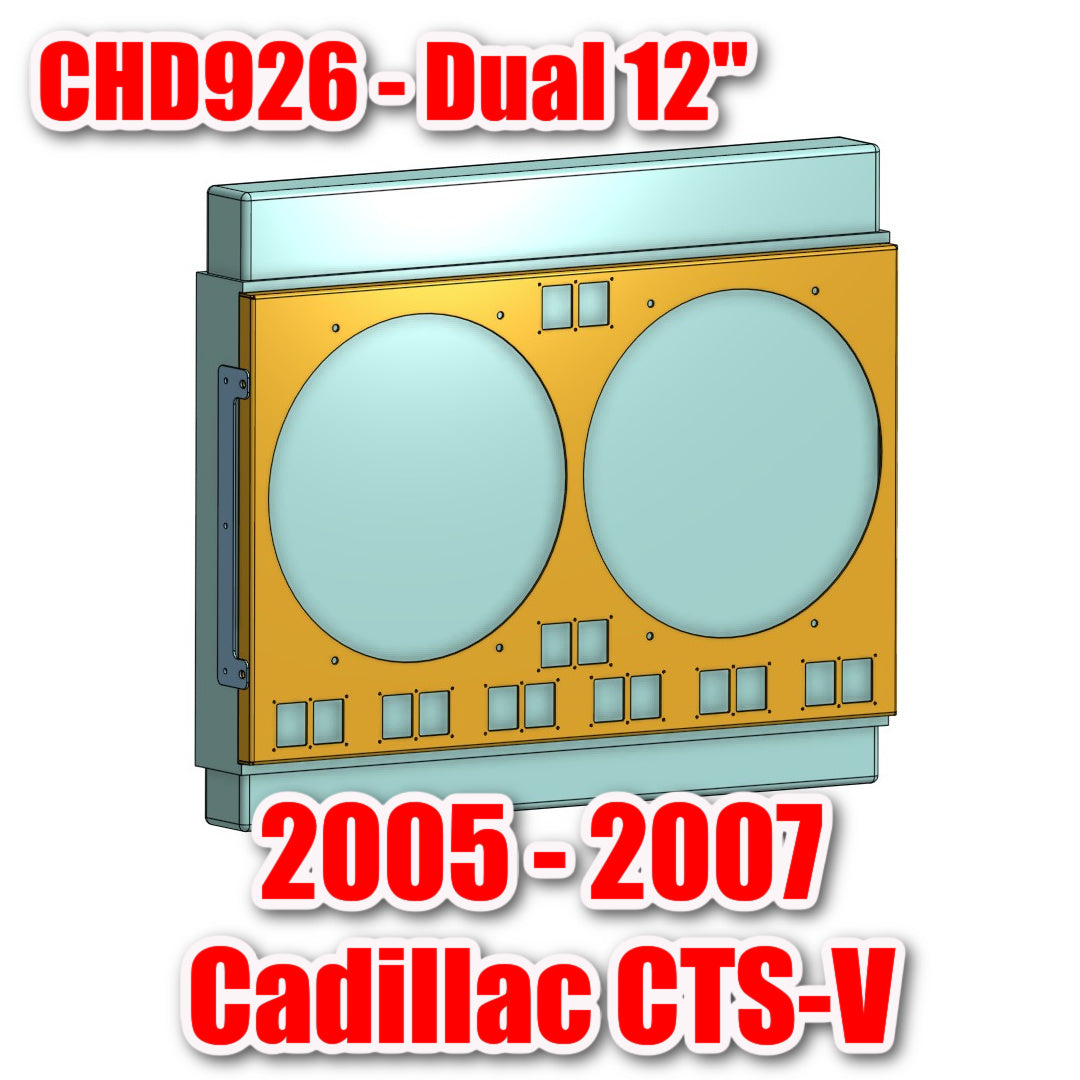

Keep your 2000 to 2007 Cadillac CTS-V running cool with this precision-engineered dual 12" fan shroud for the Cold Case CHD926 radiator

Upgrade your cooling system with our custom-designed shroud that delivers measurably better cooling efficiency than a stock setup. Through optimized dual fan sizing and precision-engineered airflow channels, this shroud maximizes the contact between your fans and radiator surface—ensuring every CFM of airflow does its job.

Custom designed by Monty, manufactured and drop shipped by SendCutSend in raw aluminum or your choice of powder coat color.

Key Performance Advantages:

• Enhanced Shroud Performance: Two rubber flap doors allow "pass through" of high-velocity air while at speed, dramatically reducing fan usage on the highway.
• Optimized Fan Size: Direct fit for Spal 30102029, or 30101522 (12" Brushed Pullers) and Proform 67034 (12" Brushless with Soft Start).
• Not sure which fans to use? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.

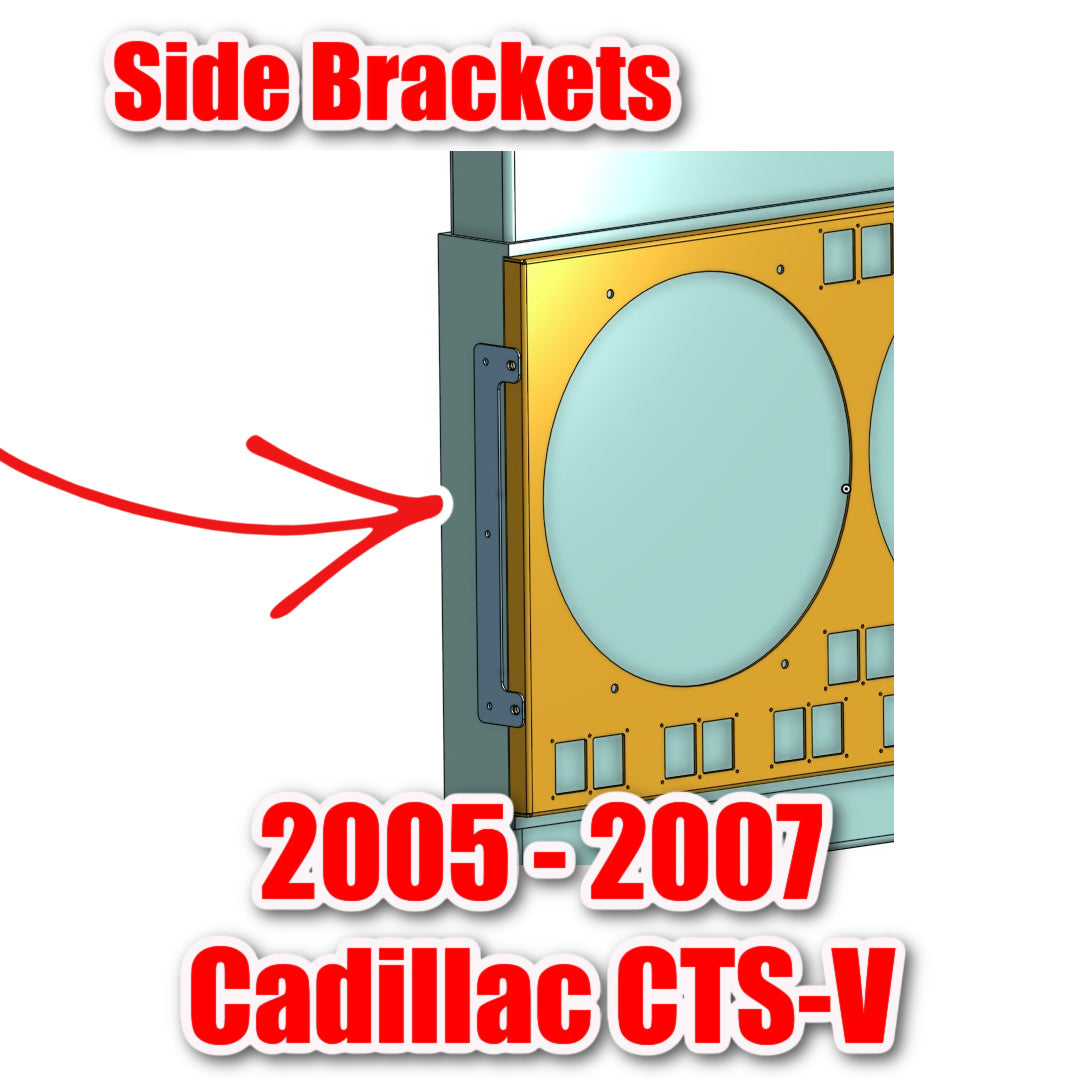

• Secure Mounting: Eight threaded M6x1 holes for fan mounting and four M6x1 threaded holes for the included side brackets.  The side brackets should be secured with a 3/16" pop rivet.  Be careful as to not drill too far!
• Made to Order: All versions are built to order and drop shipped directly from SendCutSend.

Compatible Fan Part Numbers (12" Fans):

• Spal 30102029, or 30102029 (12" Brushless High Performance Puller)
• Proform 67034 (12" Brushless with Soft Start)

Necessary Accessories for Installation (Not Included):

• Fan mounting hardware: M6x1, 16mm long fasteners (eight for fan mounting, four for side bracket slots).
• EIGHT Rubber Flap Doors – Spal part number 30130012

  • Ordering a Raw shroud? Flap doors are here: Link to Rubber Flap Door part Number 30130012
• Fan relay and wiring harness (if not already installed).
• Adjustable thermostat switch (recommended for automatic operation — typically included with most fan relay harnesses).

Specifications:

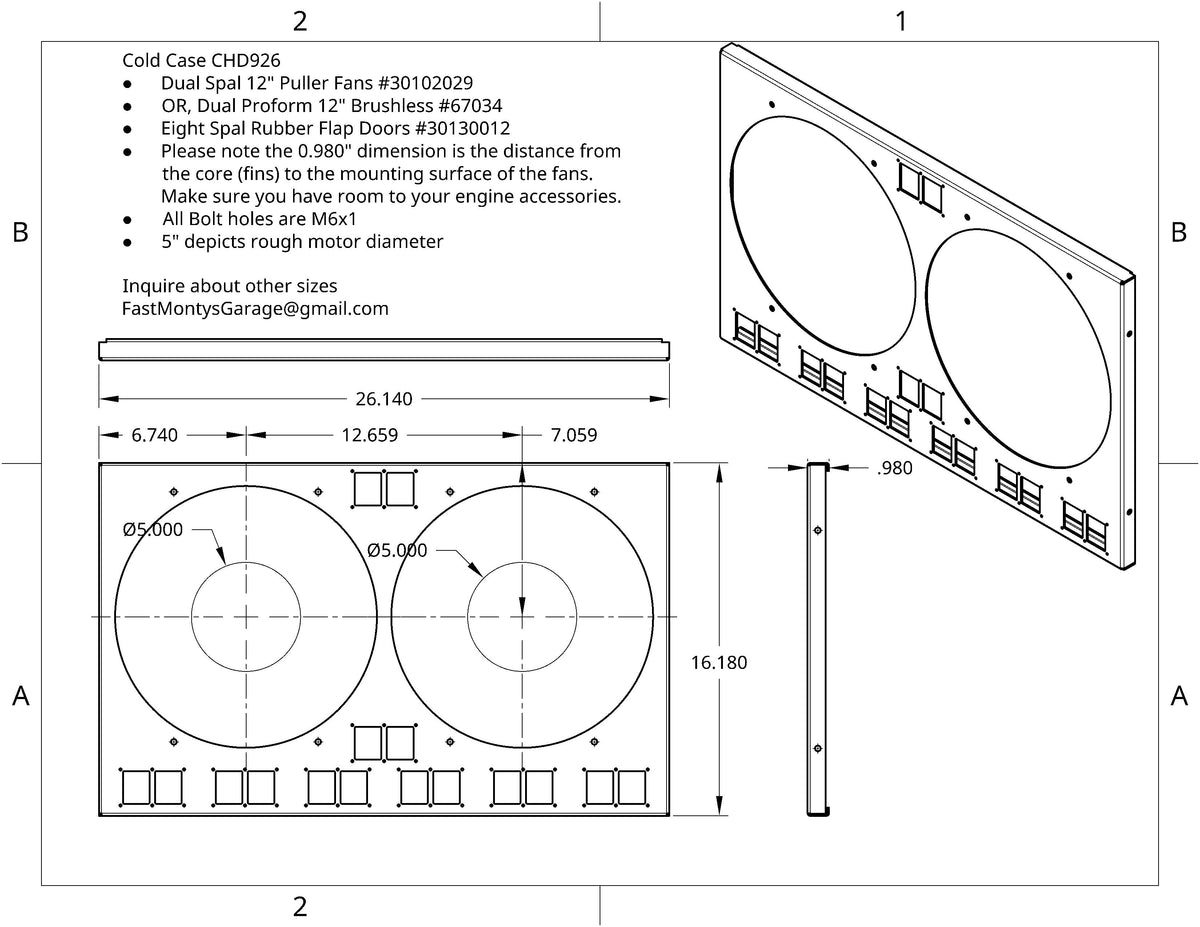

• Fits 2002 - 2007 Cadillac CTS-Vs (You may have to move the radiator forward, double check all clearances with the attached print)
• Designed specifically for Cold Case radiator models CHD926
• Accommodates dual 12" fans: Spal 30102029, 30101522 or Proform 67034
• Available in raw aluminum or custom powder coat color finish
  • Raw Aluminum does have witness marks near the bends — most can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look.
• Precision CNC-cut from aircraft-grade aluminum
• Made in the USA

Note: This is an aftermarket shroud designed to work with the Cold Case CHD926 radiator. It is not manufactured by Cold Case Radiators. Fans, flap doors, and fasteners are NOT included. Raw Aluminum lead time is approximately 1 week. Custom powder coat lead time is approximately 2 weeks. All drop shipped sales are final. If you select "Custom Color" at checkout, we will email you to confirm your color selection.

Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor blemishes.

See our Radiator Fan Shroud Installation Guide for step-by-step instructions.
