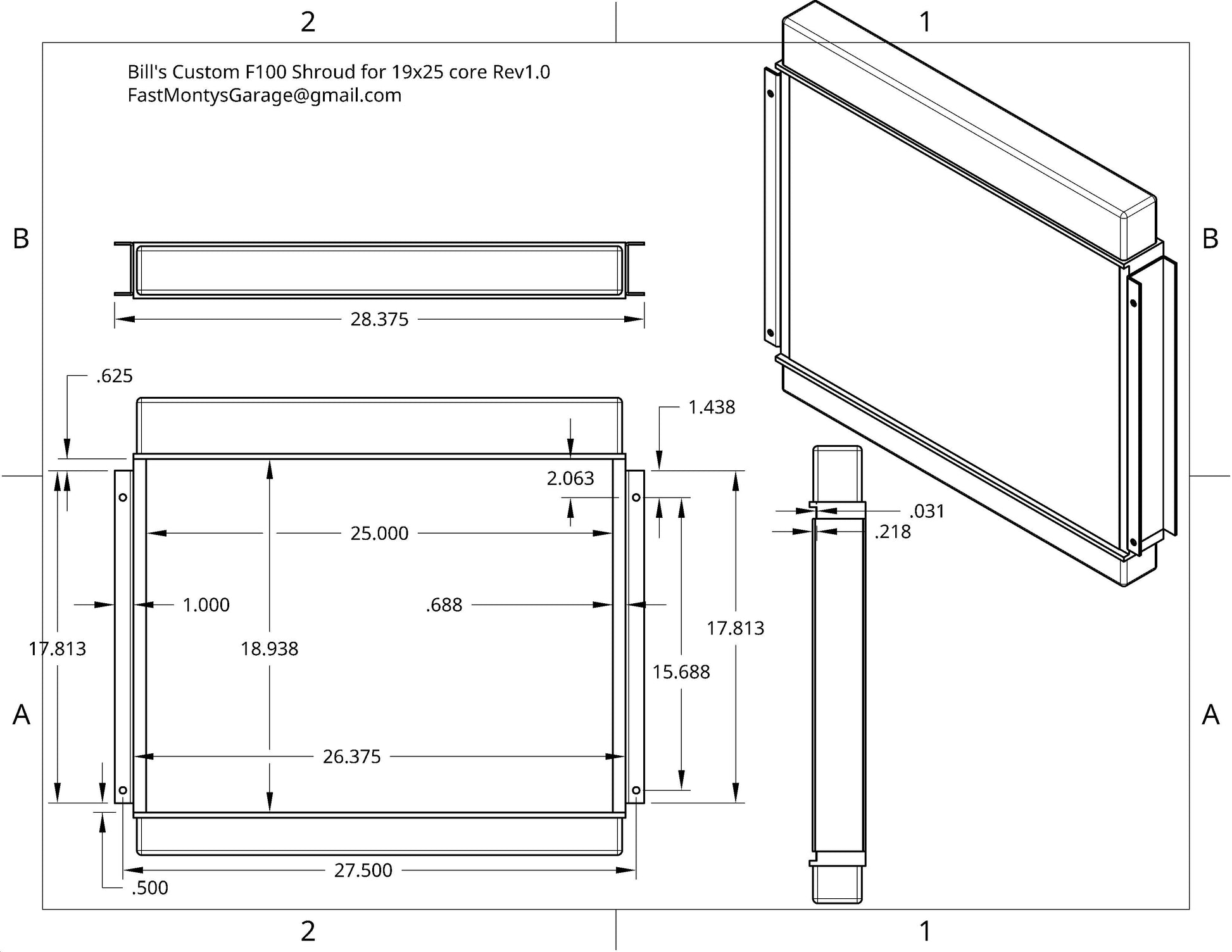

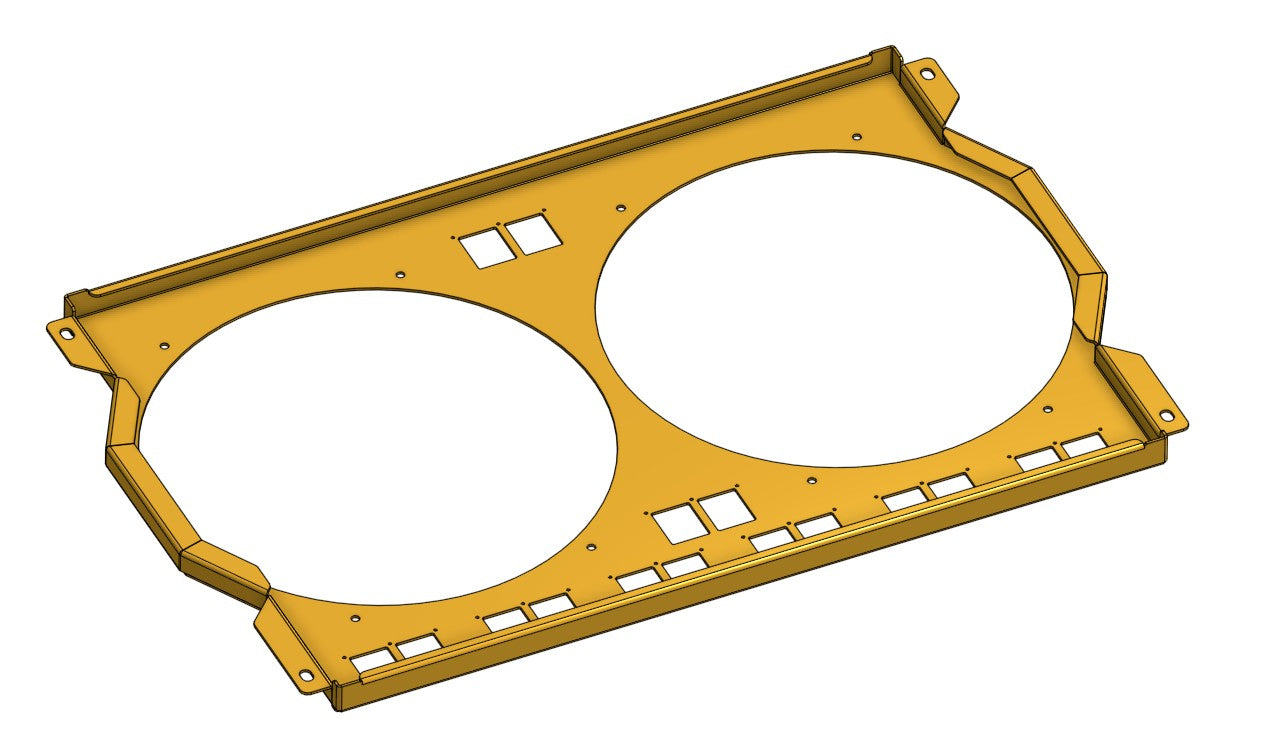

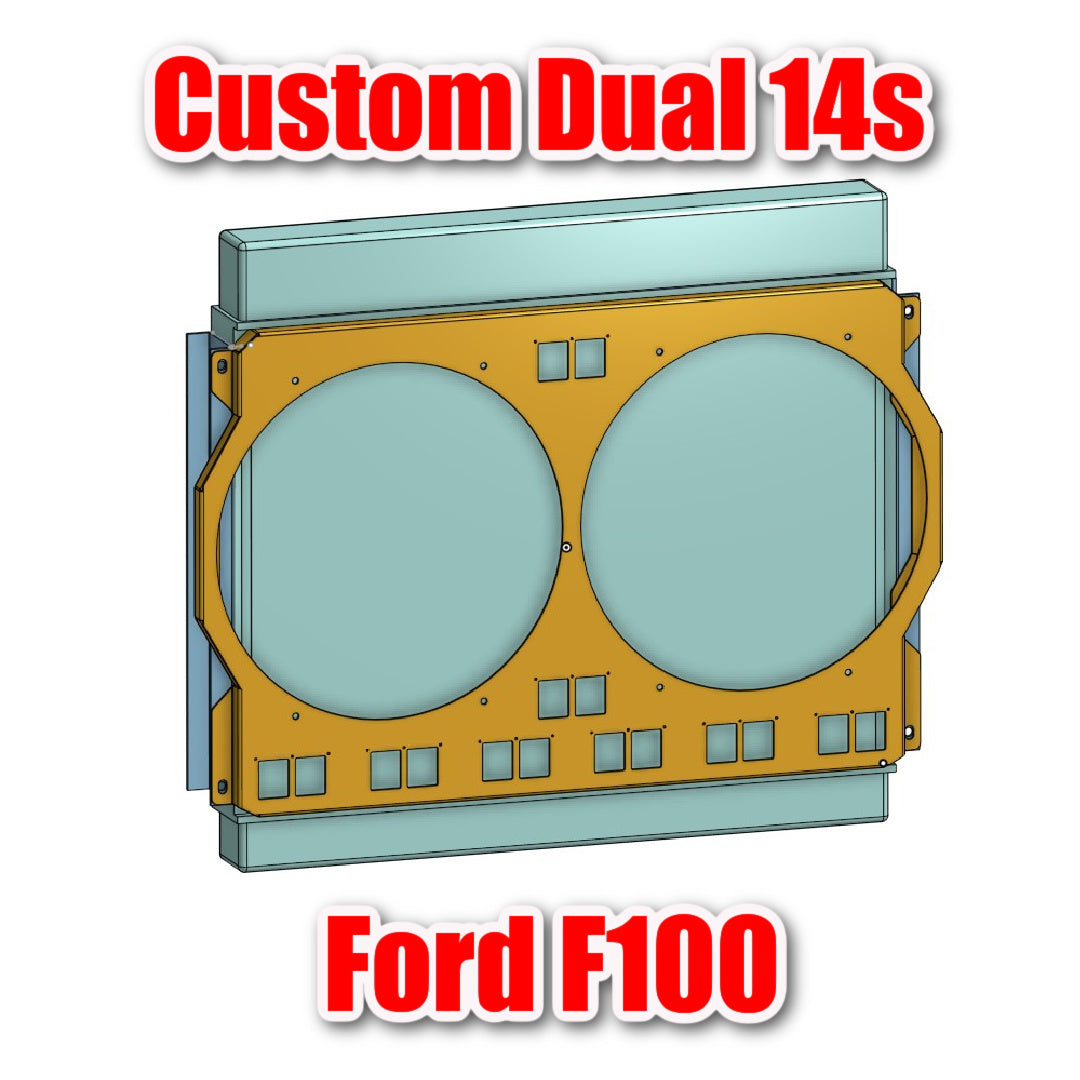

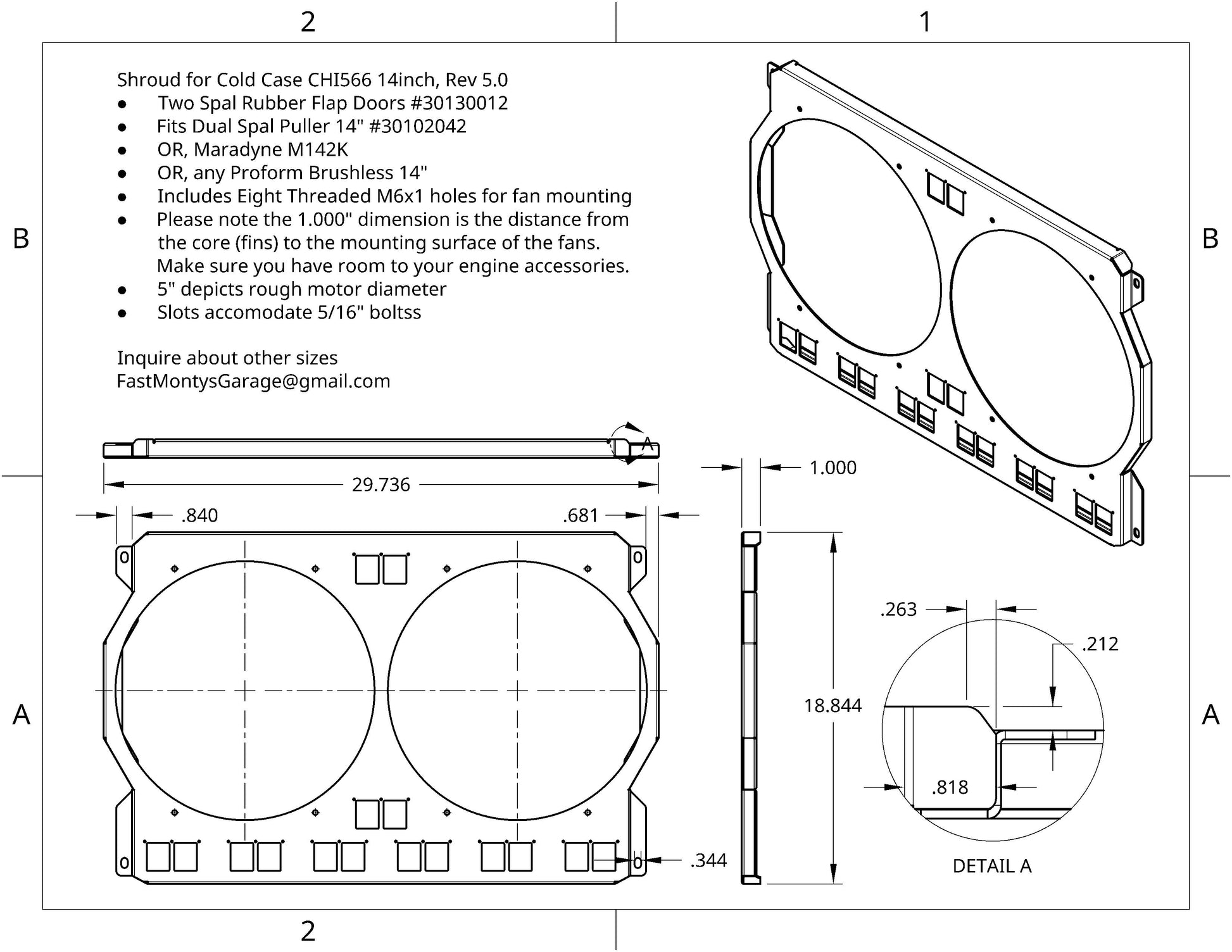

Bill's Custom F100 Fan Shroud listing. Pricing includes engineering design, gloss black powder coating, Flap Doors, and eight fan fasteners.

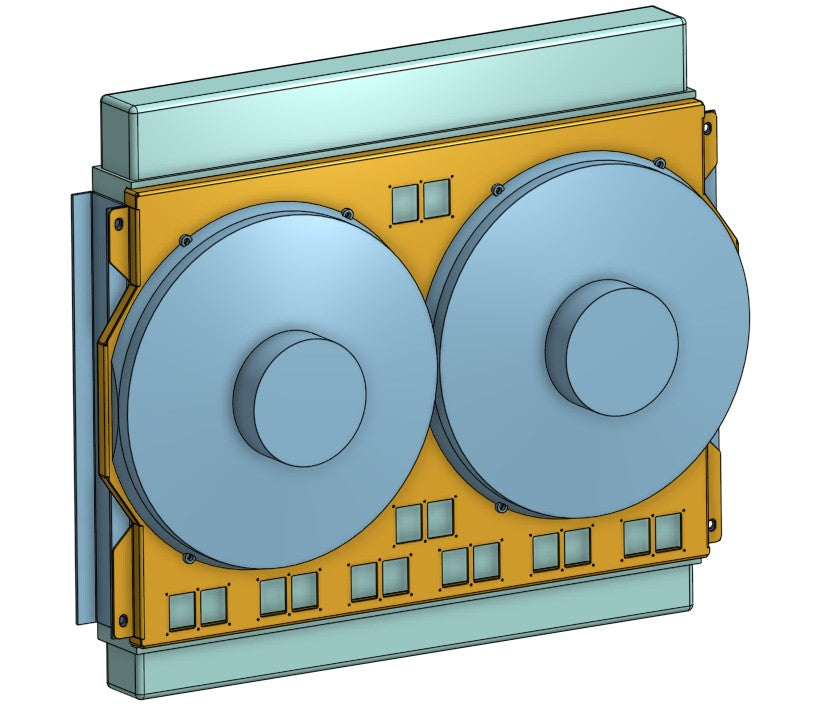

Compatible Fan Part Numbers (14" Fans):
Spal 30102042 (14" Brushed High Performance Puller)
Maradyne M142K (14" Brushed High Performance Puller)
Proform 67035 (14" Low Profile BRUSHLESS)
Necessary Accessories for Installation (Not Included):
Fan relay and wiring harness (if not already installed)
Make sure each relay is rated for 30 to 40 amps. Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
Adjustable thermostat switch (recommended for automatic operation) typically included with most Fan Relay harnesses.
See the "Twin Spals" video for installation tips.
Note: This is a Custom aftermarket shroud designed to work with a customer's particular radiator. Inquire for yours. Manufactured by Send Cut Send. Lead time for Raw Aluminum is around one week. Powder Coat lead time is two weeks.
