BLEM 1966 or 1967 Pontiac A-Body's Dual 14 inch Fan Shroud for ColdCase GPG34 Powder Coated Black

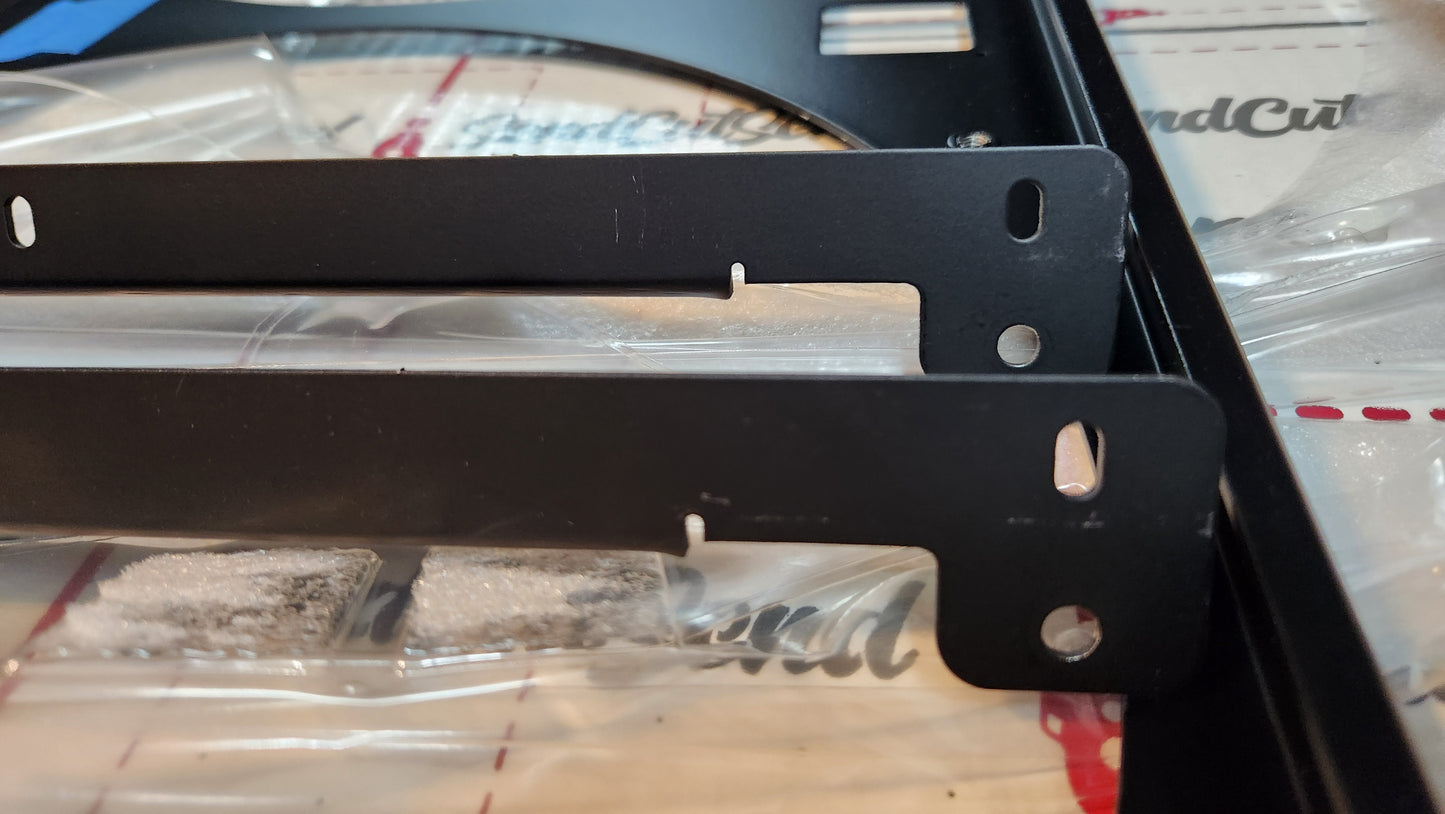

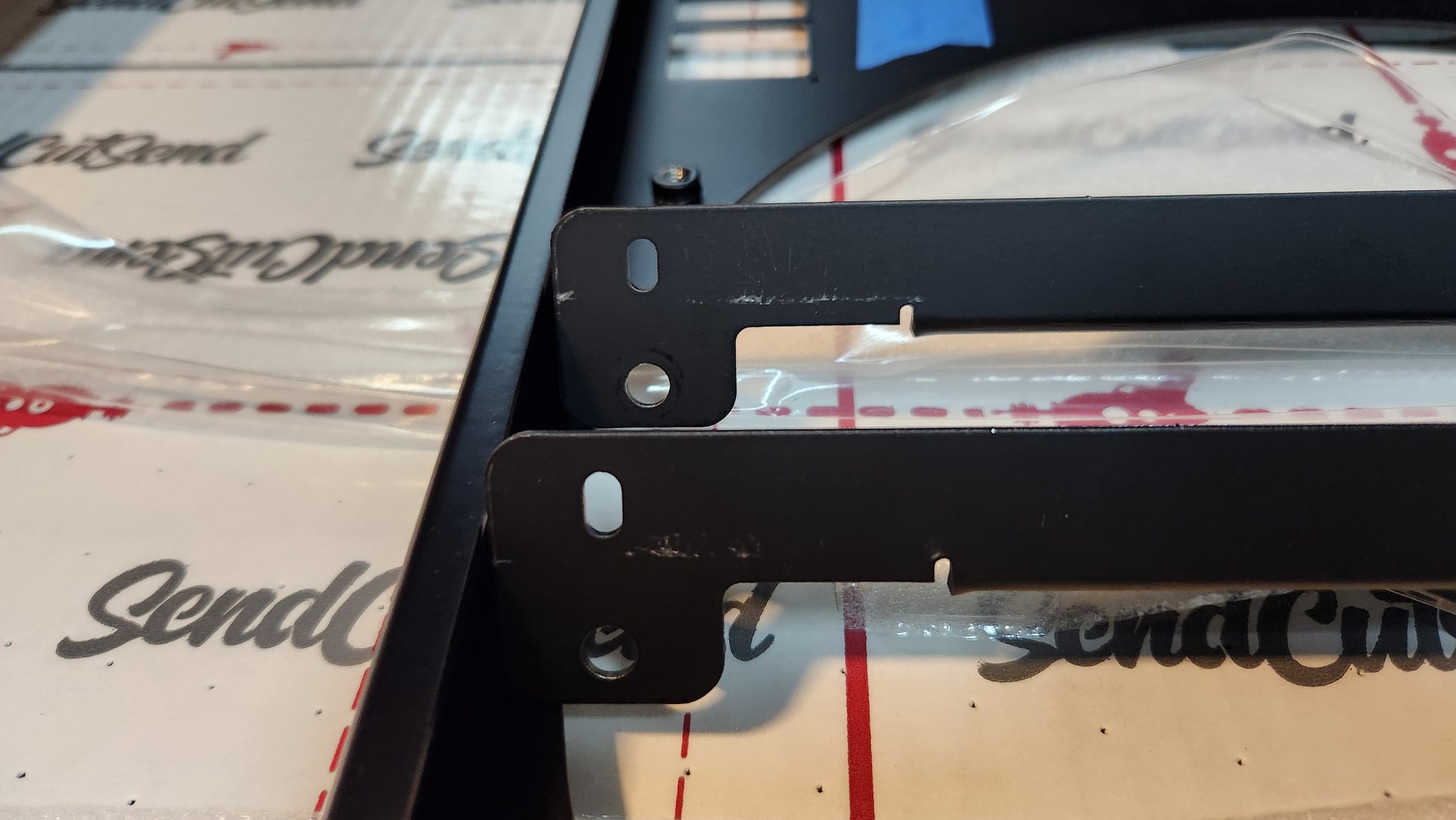

BLEM Shroud on sale.  Monty's demo shroud with minor scratches on the back side of the brackets.  Perfect working order, and you'll never see the scratches.  See Pictures.  One unit for sale.

Designed for 1966 and 1967 Pontiac Tempest, Lemans, GTO without A/C, ColdCase Radiator GPG34 to mount Dual 14 inch fans, either Spal Puller fan part #30102042 (CFM output is 1864 per fan), OR Proform 14" Brushless fan part #67035 (featuring Soft Start) Two Rubber flap doors, Spal part #30130012. Custom Designed by Monty and manufactured by SendCutSend.  Matte Black versions are stocked, all other finish options are made to order.  If you select "Custom Color", I will email you after your order is placed for your color selection.

This shroud is a three piece design due to the "Down Flow" style radiator.  There are a total of 12 threaded holes, 8 for the fans, and four for the side brackets.  All are M6x1.  I highly recommend using M4x1 Rivnuts in the radiator side braces to mount the brackets.  Do NOT drill past 3/8" through the side plates.  Please see the instructional video.

NOTE:  Check for fit!  The shroud fan mounting surface is 0.980" away from the core (finned area)  Detailed drawing shown here.

(For the Matte Black variant only, I will include the Twelve M6x1 fasteners, it's also the lowest cost Powder Coated option)

Fans, flap doors, and fasteners are NOT included.  Please do an internet search for the flap door part number 30130012, pricing will range from $1.49 to $4.00 each.  The fastener is a M6x1, 16mm long.

Not sure which fans to use?  Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.
