Cold Case FOM588-5 Coyote Swap Radiator, 1967–1970 Mustang

Upgrade your Coyote-swapped 1967–1970 Ford Mustang with a Cold Case 24-inch aluminum performance radiator. The FOM588-5 series uses a right-hand inlet and left-hand outlet with 1.5-inch hose connections for Coyote swap applications.

Transmission and part numbers

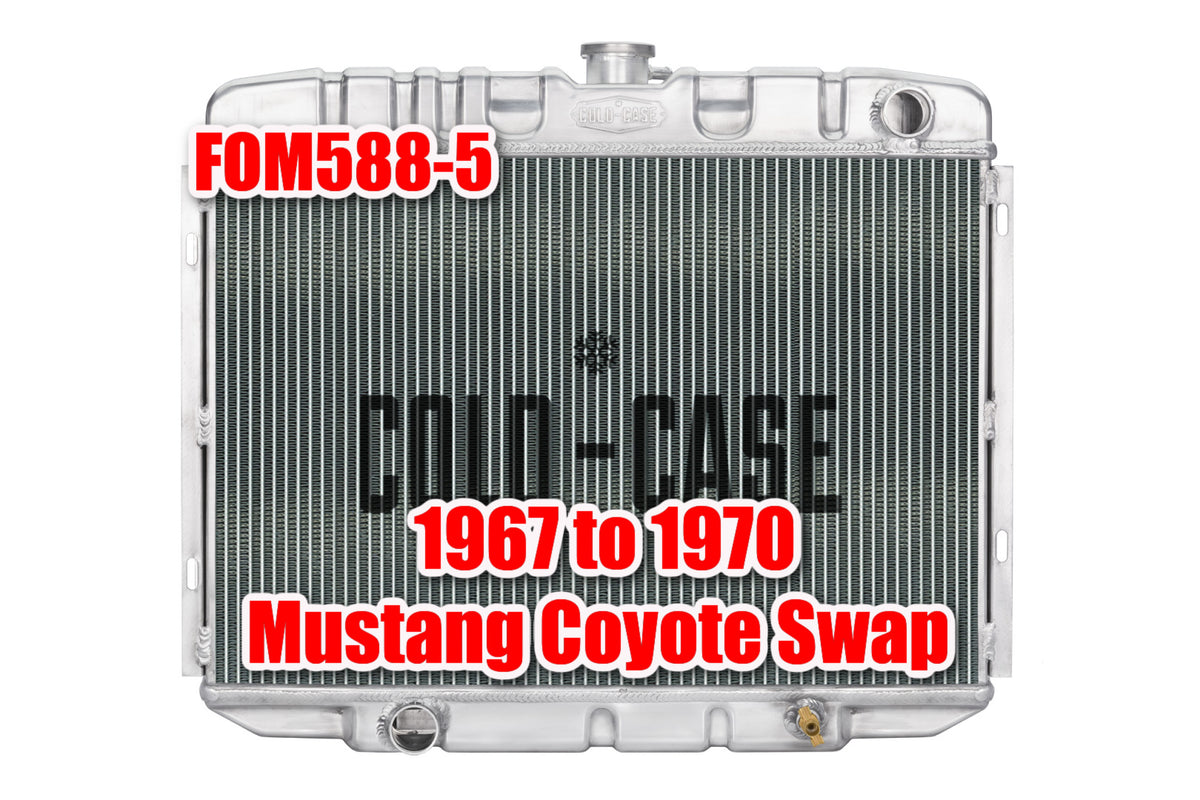

• Manual transmission: FOM588-5

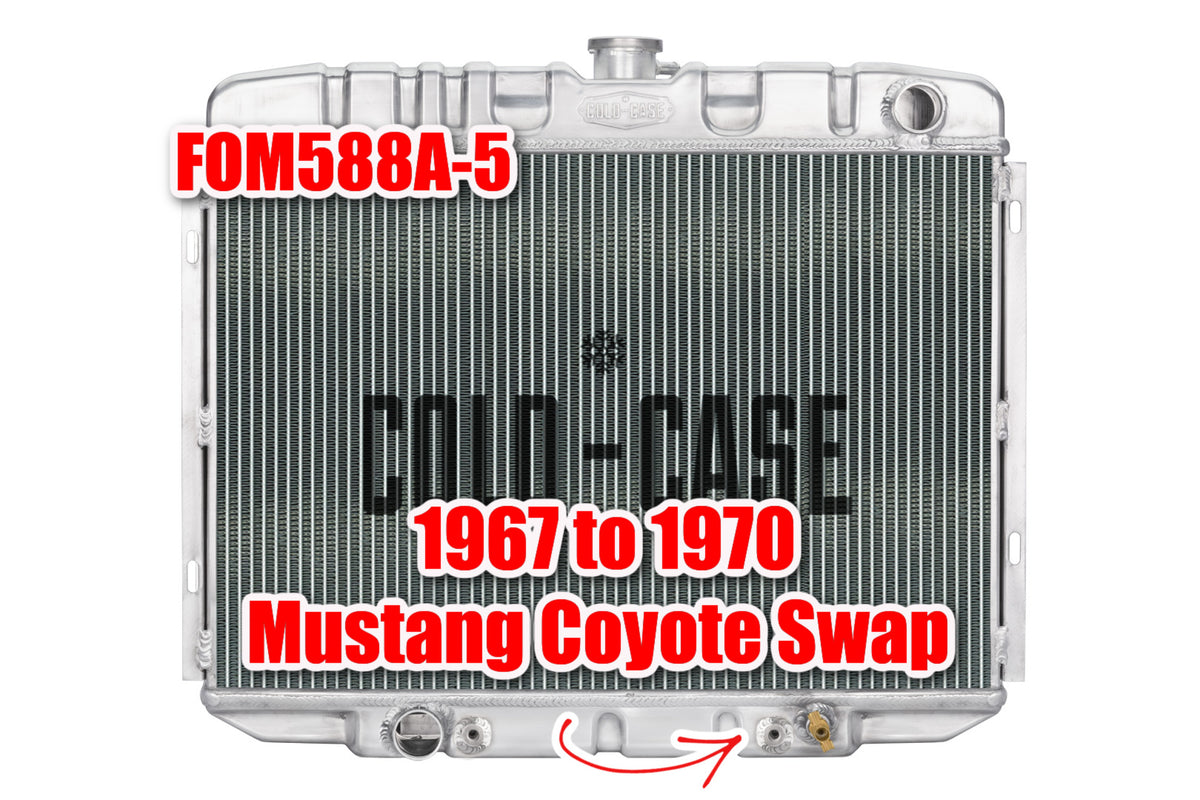

• Automatic transmission: FOM588A-5
• Both versions have polished OE-style tanks.

Construction and cooling

• 100% TIG-welded aluminum construction.
• Oversized two-row design with two 1-inch tubes.
• 16 fins per inch with corrugated fins for increased surface area and thermal transfer.
• Pressure tested.
• Supplier limited lifetime warranty and 60-Day Cool Guarantee.

Dimensions and hose connections

• Core: 16 inches high × 24 inches wide.
• Overall: 21.5 inches high × 25 inches wide × 3 inches thick.
• Upper hose connection: 1.5 inches.
• Lower hose connection: 1.5 inches.
• Right-hand inlet; left-hand outlet.

Fitment and installation

Intended for Coyote swap applications. Supplier-listed applications include 1967–1970 Ford Mustang and 1967–1970 Mercury Cougar. Verify dimensions, hose routing, mounting requirements, and engine/accessory clearance before ordering.

Upgrading from a 20-inch radiator requires lower radiator brackets and rubber insulators, plus an upper radiator bracket and rubber insulator. Remove the left- and right-side radiator-support shields to enlarge the opening and take advantage of the wider radiator.

• 1967–1968 Mustang upper bracket: C7ZZ-8A193-A.
• 1969–1970 Mustang upper bracket: C9ZZ-8A193-A.
• 1967–1970 Mustang upper insulators: C7OZ-8124-A.
• 1967–1970 Mustang lower brackets: C8ZZ-8052-A.
• 1967–1970 Mustang lower insulators: C8ZZ-8125-A.

Complete your cooling setup

Planning a complete cooling package? Explore our Radiator, Fan & Shroud Kit Builder to browse available components and review your selections together. Verify that your required radiator and matching components are available before ordering.

Already have fans? Pair either the FOM588-5 or FOM588A-5 radiator with Fast Monty's Garage dual 14-inch fan shroud. Check the shroud dimensions and available engine/accessory clearance before ordering. Fans and installation accessories are sold separately.
