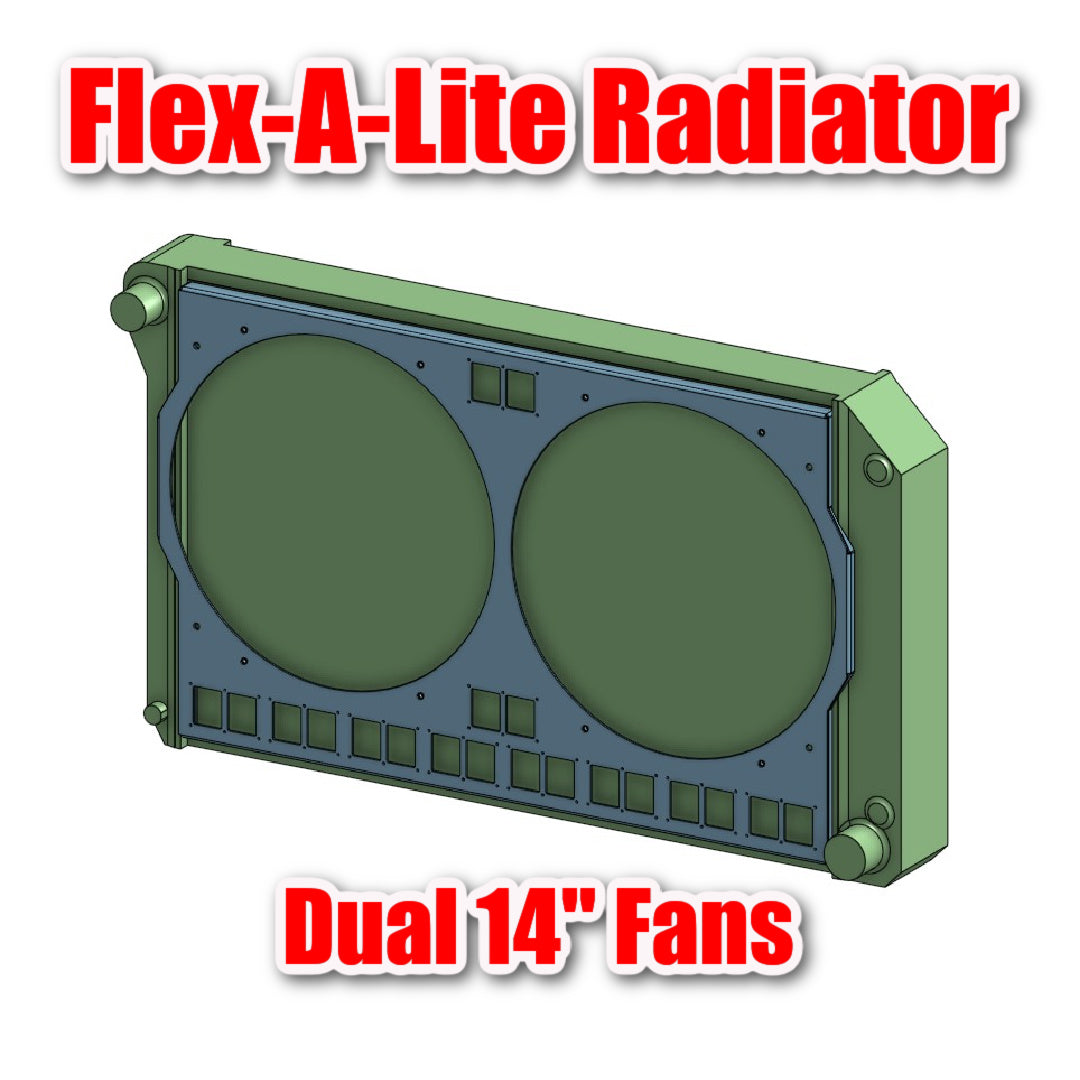

Flex-A-Lite Radiator 28 x 17.75" Core Custom Fan Shroud - Dual Universal 14 inch fans

Keep your Flex-A-Lite radiator running cool with this custom engineered fan shroud for dual 14" universal fans.

Through optimized fan sizing and precision-engineered airflow channels, this shroud maximizes the contact between your fan and radiator surface—ensuring every CFM of airflow does its job.

Key Performance Advantages:

• Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.
• Optimized Fan Size: Direct fit 14" fans were selected by Monty
• Not sure which fans to use? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.

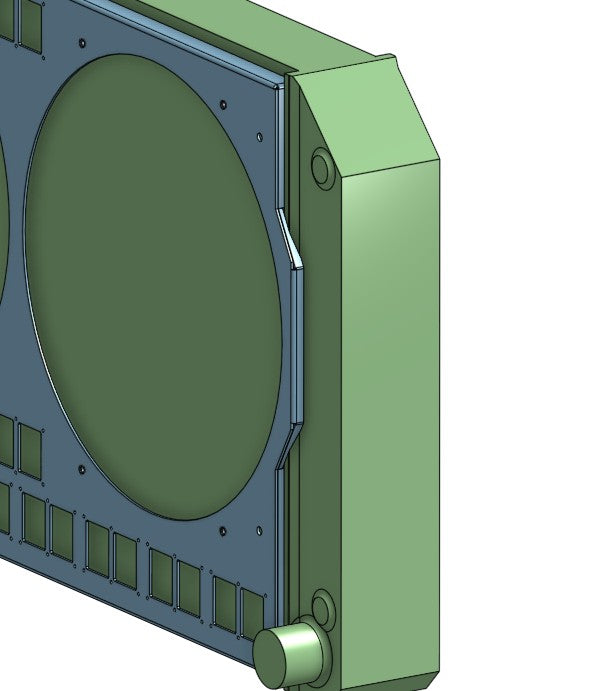

• Better Fitment: Custom-contoured to the Flex-A-Lite Radiator for a truly integrated cooling solution, overlapping the side tanks, accommodating larger fans.

Compatible Fan Part Numbers (14" Fans):

• Spal 30102042 (14" Brushed High Performance Puller)
• Maradyne M142K (14" Brushed High Performance Puller)
• Proform 67035 (14" Low Profile BRUSHLESS)

Necessary Accessories for Installation (Not Included):

• Fan mounting hardware M6x1 - 16mm long  Eight required for Fan Mounting, and four required for shroud brackets.  (Brackets Not Included)
• TEN Rubber Flap Doors, Spal part #30130012
  • Ordering a Raw shroud? Flap doors are here; Link to Rubber Flap Door part Number 30130012
• Fan relay and wiring harness (if not already installed)
• Make sure each relay is rated for 30 to 40 amps. Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
• Adjustable thermostat switch (recommended for automatic operation) typically included with most Fan Relay harnesses.
• See the "Twin Spals" video for installation tips.

Specifications:

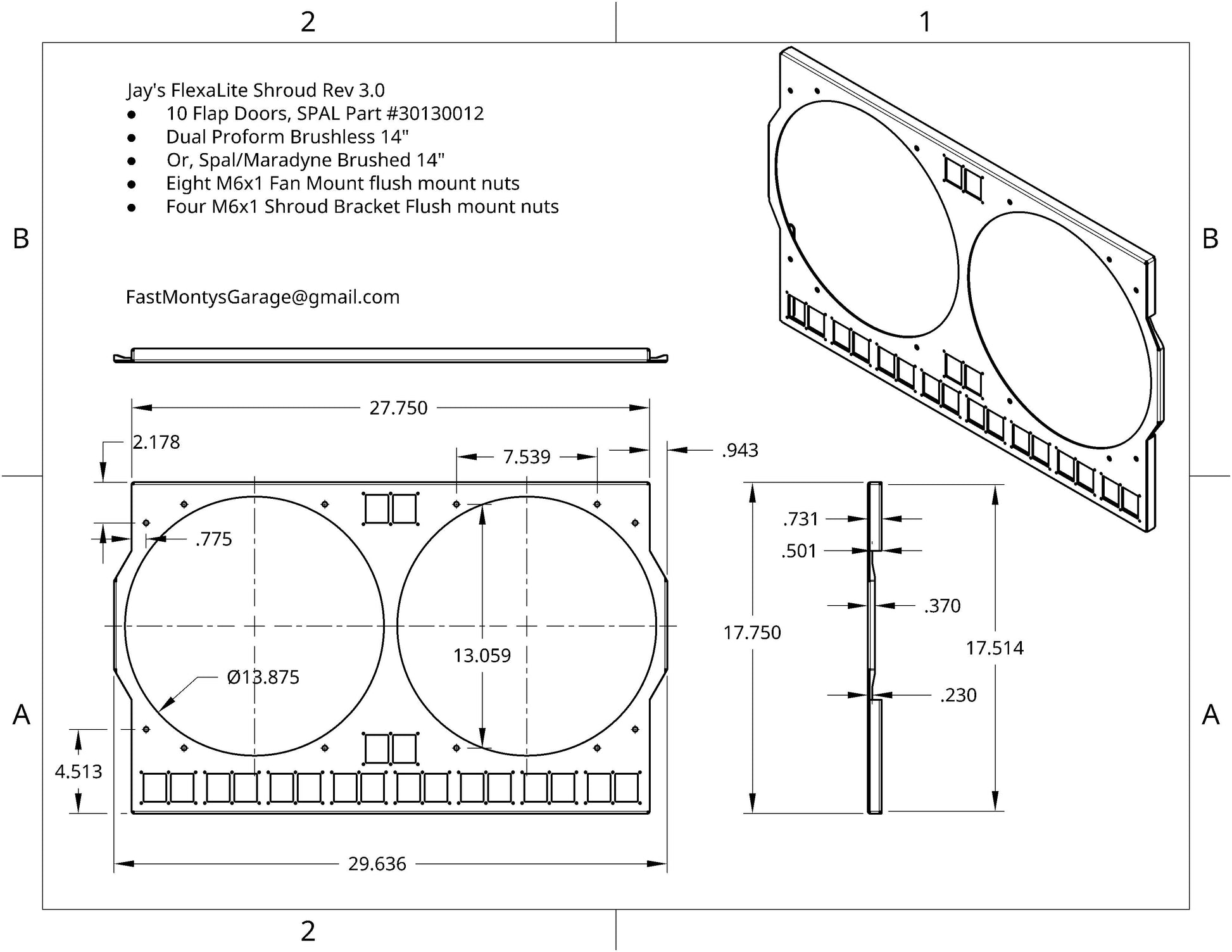

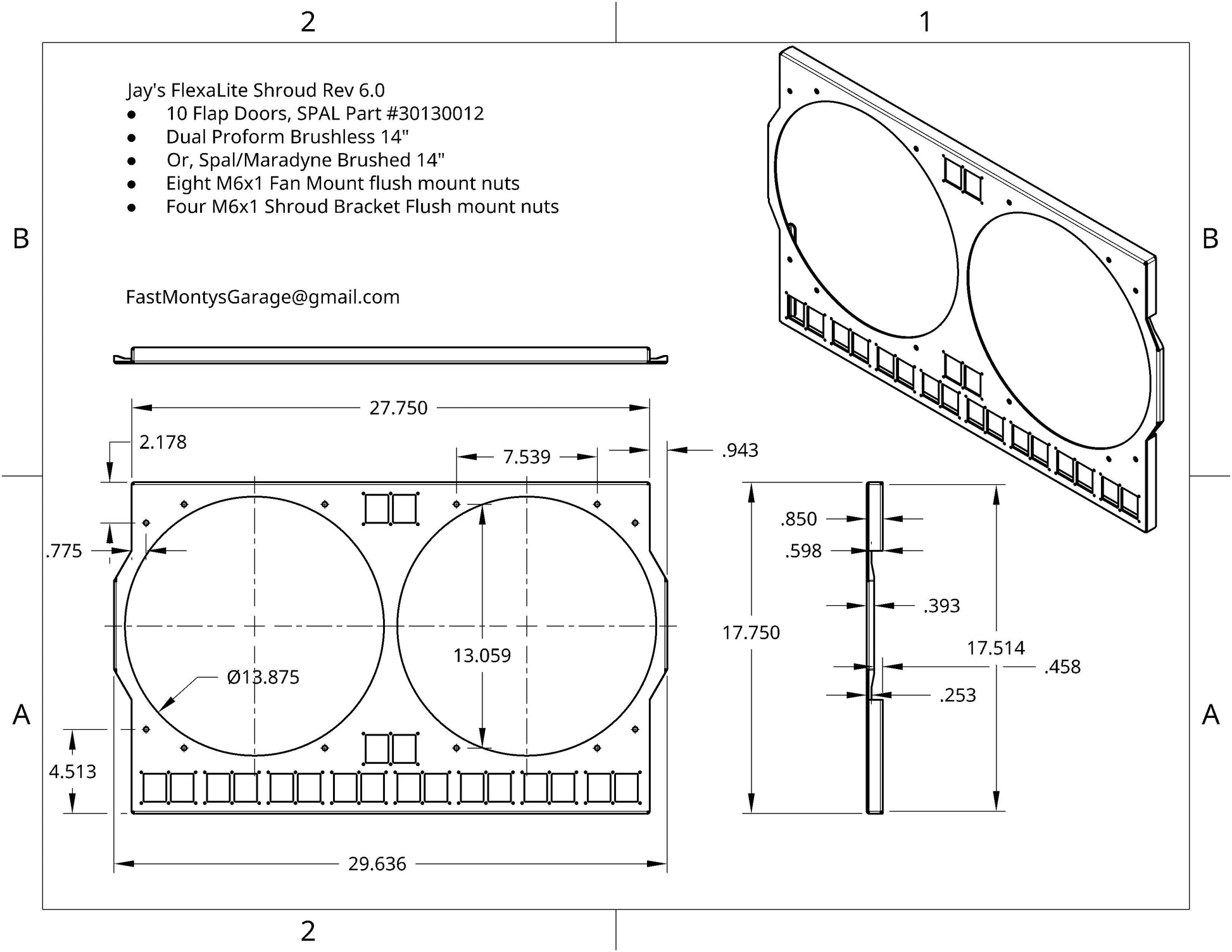

• Designed specifically for Flex-A-Lite finned radiator with 28 x 17.75" Core
• Accommodates 14" fans, inquire for different fans not listed

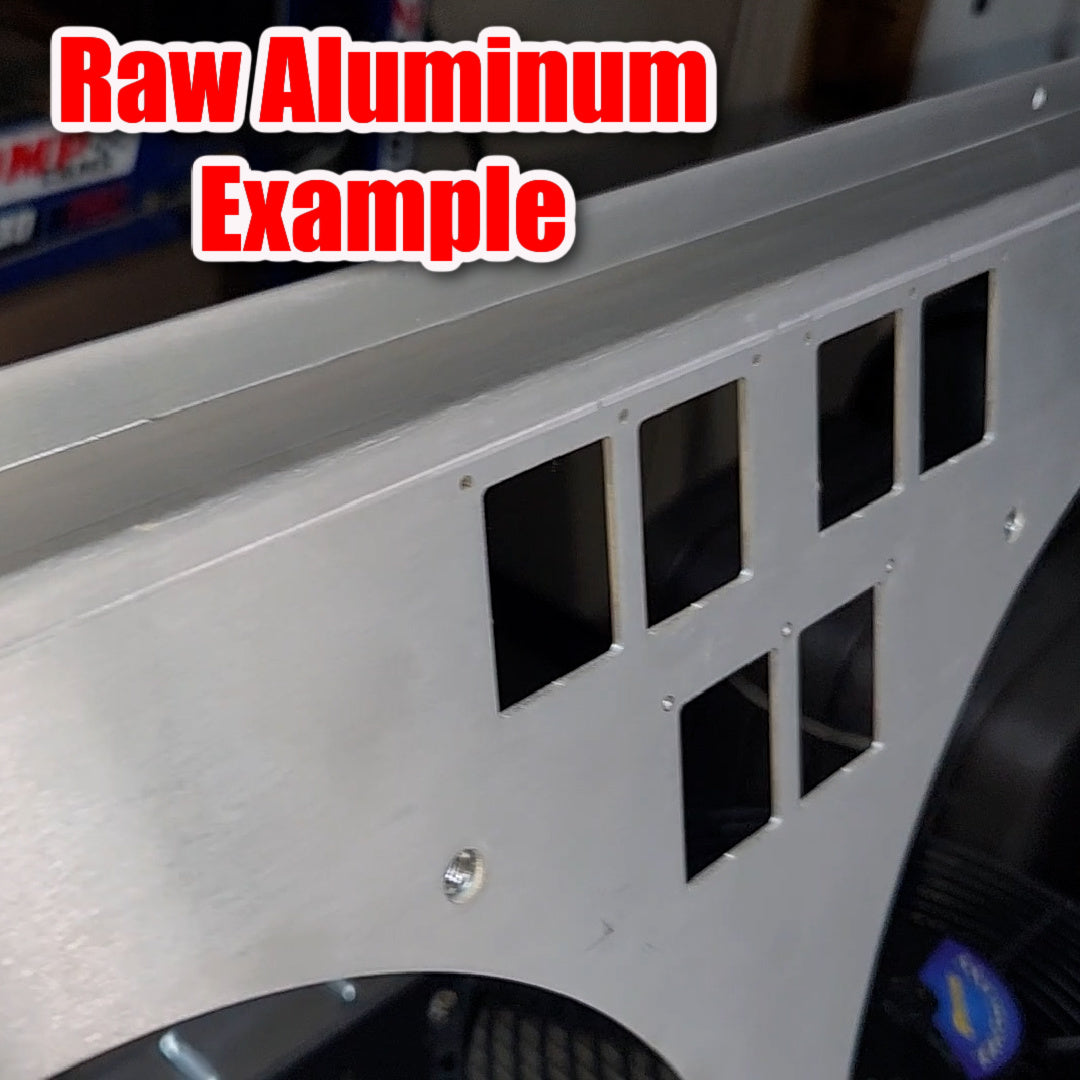

• Available in powder coated black or raw aluminum finish
  • Raw Aluminum does have witness marks that can be cleaned with Scotch Brite, or a Magic Eraser
• Precision CNC-cut from aircraft-grade aluminum
• Made in the USA

Note: This is an aftermarket shroud designed to work with the Flex-A-Lite "Finned" 28x17.75 radiator. It is not manufactured by Fle-A-Lite. Fans and installation accessories sold separately. Lead time for Raw Aluminum is around one week. If Powder Coated is out of stock, please order, as we do not replace stock without an existing order, lead time is two weeks.

Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.
