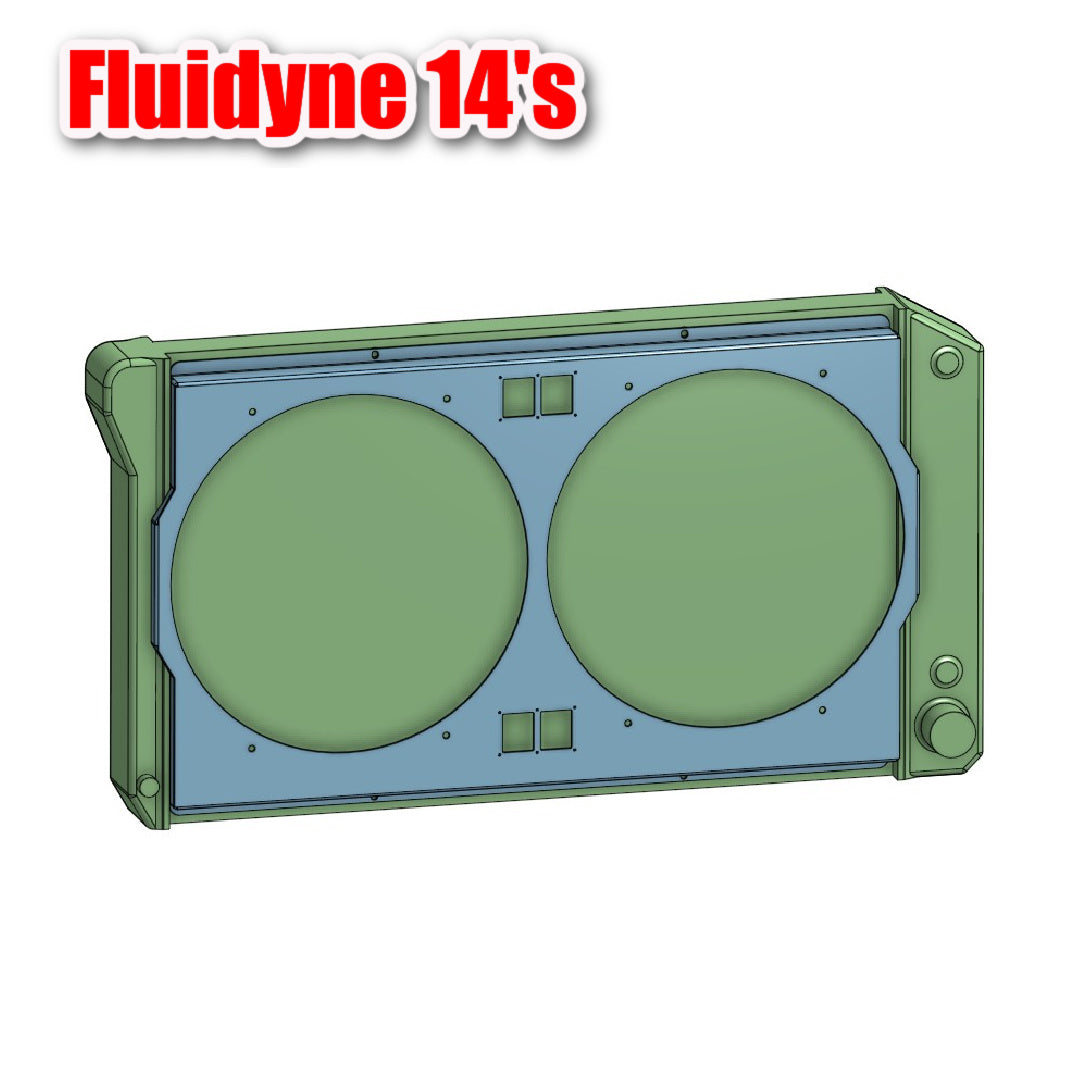

Fluidyne custom shroud for Dual 14 inch fans.

Key Performance Advantages:

• Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.
• Optimized Fan Size: Direct fit "Universal" 14inch fans
• Better Fitment: Custom-contoured to the Champion Radiator for a truly integrated cooling solution, overlapping the side tanks, accommodating larger fans.

Compatible Fan Part Numbers (14" Fans):

• Spal 30102042 (14" Brushed High Performance Puller)
• Maradyne M142K (14" Brushed High Performance Puller)
• Proform 67035 (14" Low Profile BRUSHLESS)

Necessary Accessories for Installation (Not Included):

• Fan mounting hardware M6x1 - 16mm long
• We highly recommend using M6x1 RivNuts for the upper and lower radiator mounting points. Shroud mount holes will accommodate the same M6x1 bolts used to mount the fans.
• TWO Rubber Flap Doors, Spal part #30130012
  • Ordering a Raw shroud? Flap doors are here; Link to Rubber Flap Door part Number 30130012
• Fan relay and wiring harness (if not already installed)
• Make sure each relay is rated for 30 to 40 amps. Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
• Adjustable thermostat switch (recommended for automatic operation) typically included with most Fan Relay harnesses.
• See the "Twin Spals" video for installation tips.

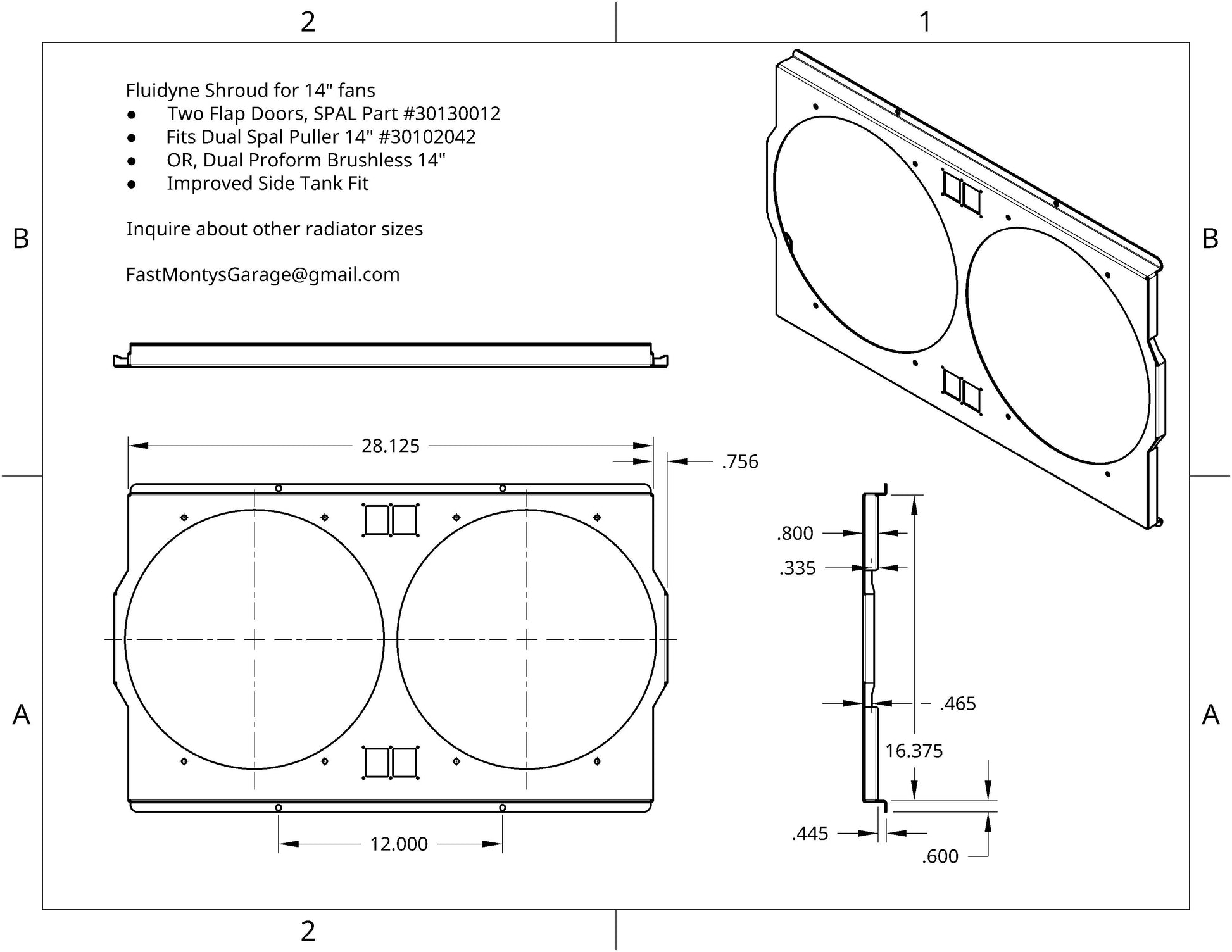

Specifications:

• Accommodates Universal 14" fans, inquire for different fans not listed
• Available in powder coated black or raw aluminum finish
  • Raw Aluminum does have witness marks that can be cleaned with Scotch Brite, or a Magic Eraser
• If you order powder coated, we'll email you for your color preference
• Precision CNC-cut from aircraft-grade aluminum
• Made in the USA

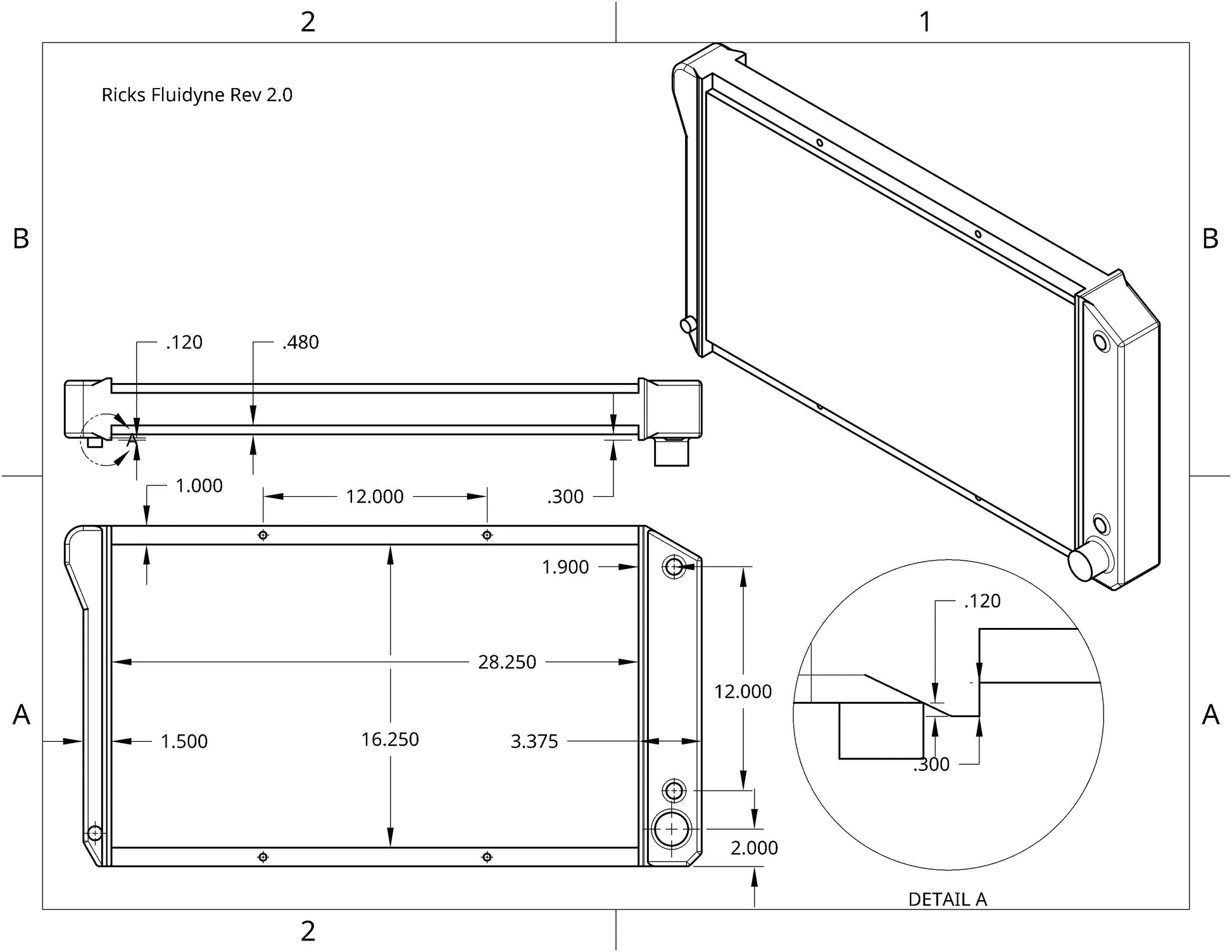

Note: This is an aftermarket shroud designed to work with the Fluidyne radiator. It is not manufactured by Champion Radiators. Fans and installation accessories sold separately. Lead time for Raw Aluminum is around one week. If Powder Coated, lead time is around two weeks.

Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.
