Griffin Radiator for a 1970 GTO - Fits 14 inch fans - FMG

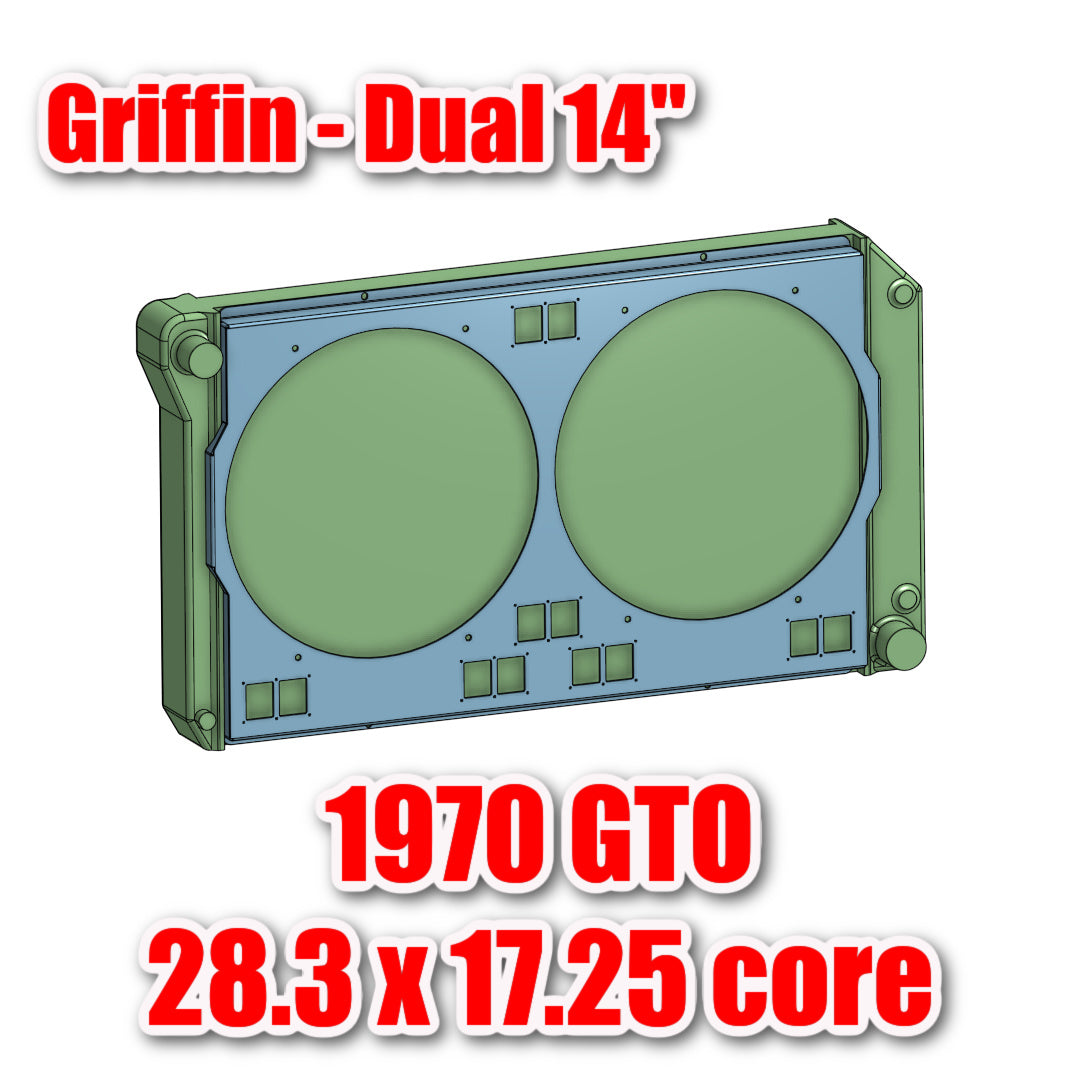

Keep your 28.3" x 17.27" core Griffin Radiator running cool with this precision-engineered fan shroud

Upgrade your cooling system with our custom-designed shroud for the 28 x 17 Griffin radiator that delivers measurably better cooling efficiency than the standard Cold Case shroud design. Through optimized fan sizing and precision-engineered airflow channels, this shroud maximizes the contact between your fan and radiator surface—ensuring every CFM of airflow does its job.

Key Performance Advantages:

• Enhanced Shroud performance: Flap doors allow "pass through" of high velocity air while at speed, dramatically cutting down the need for fan usage.
• Optimized Fan Size: Direct fit 14" fans were selected by Monty
• Not sure which fans to use? Check out Monty's independent fan CFM test results to see real-world performance data and compare different fan options.
• Better Fitment: Custom-contoured to the Cold Case Radiator for a truly integrated cooling solution, overlapping the side tanks, accommodating larger fans.

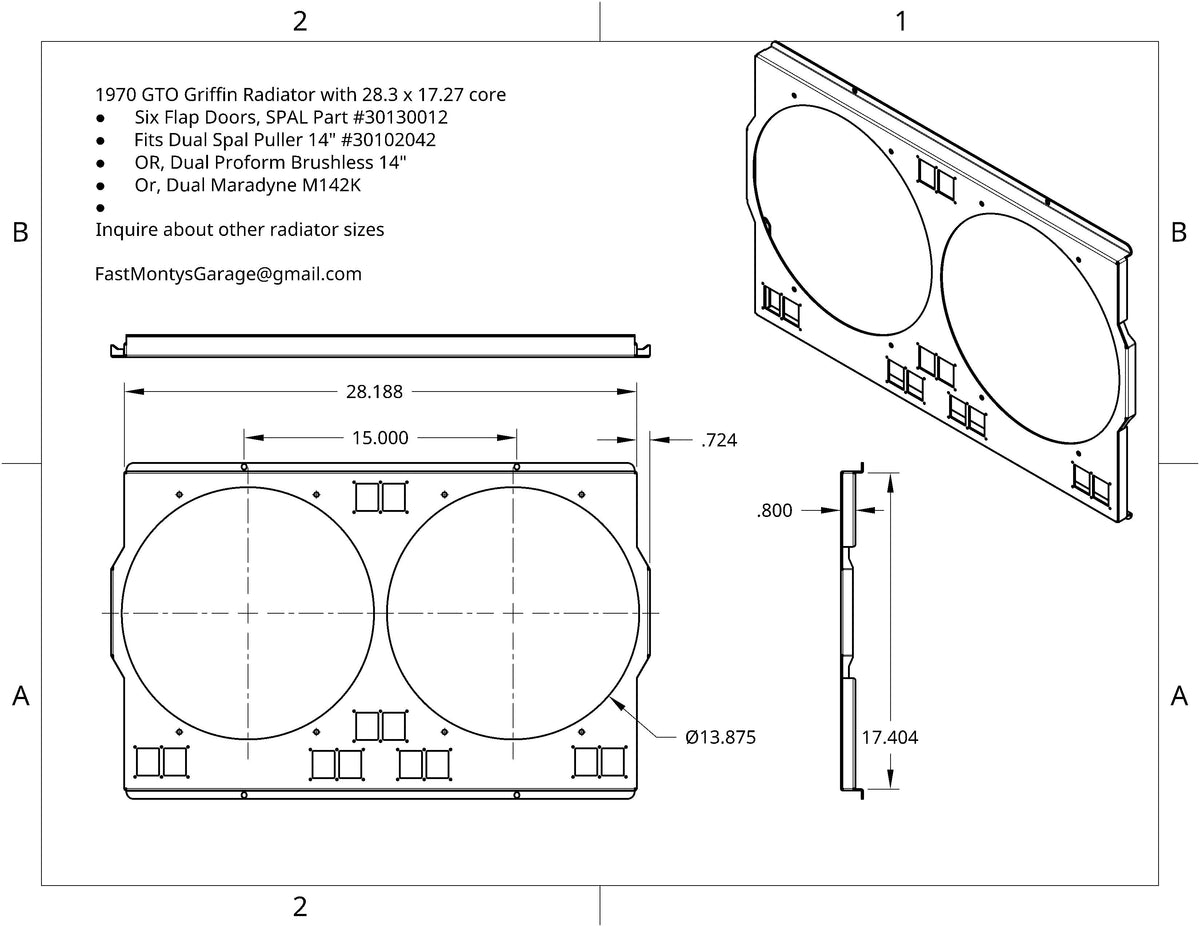

Compatible Fan Part Numbers (14" Fans):

• Spal 30102042 (14" Brushed High Performance Puller)
• Maradyne M142K (14" Brushed High Performance Puller)
• Proform 67035 (14" Low Profile BRUSHLESS)

Necessary Accessories for Installation (Not Included):

• Fan mounting hardware M6x1 - 16mm long
• Six Rubber Flap Doors, Spal part #30130012
  • Ordering a Raw shroud? Flap doors are here; Link to Rubber Flap Door part Number 30130012
• Fan relay and wiring harness (if not already installed)
• Make sure each relay is rated for 30 to 40 amps. Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
• Adjustable thermostat switch (recommended for automatic operation) typically included with most Fan Relay harnesses.
• See the "Twin Spals" video for installation tips.

Specifications:

• Fits 1970 Pontiac GTO

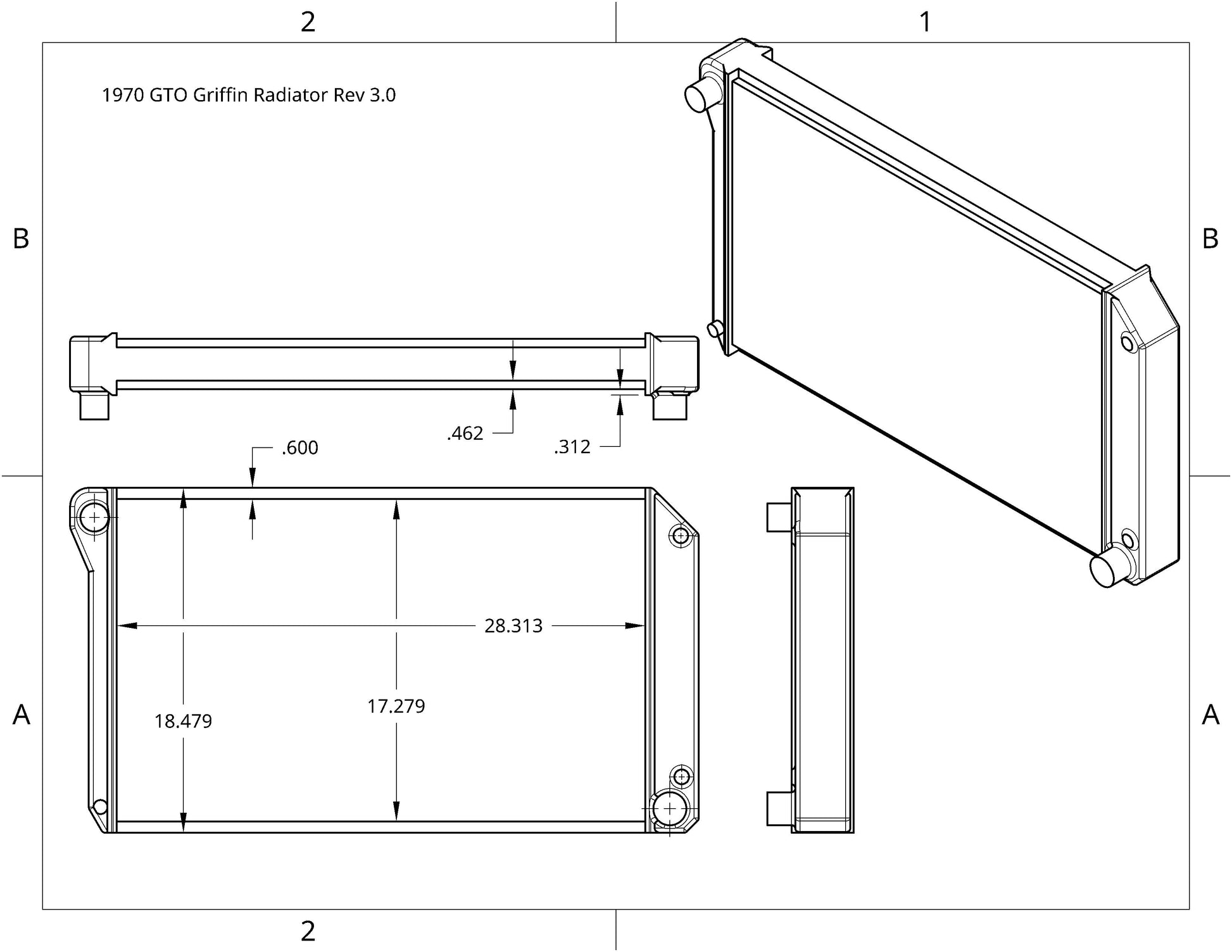

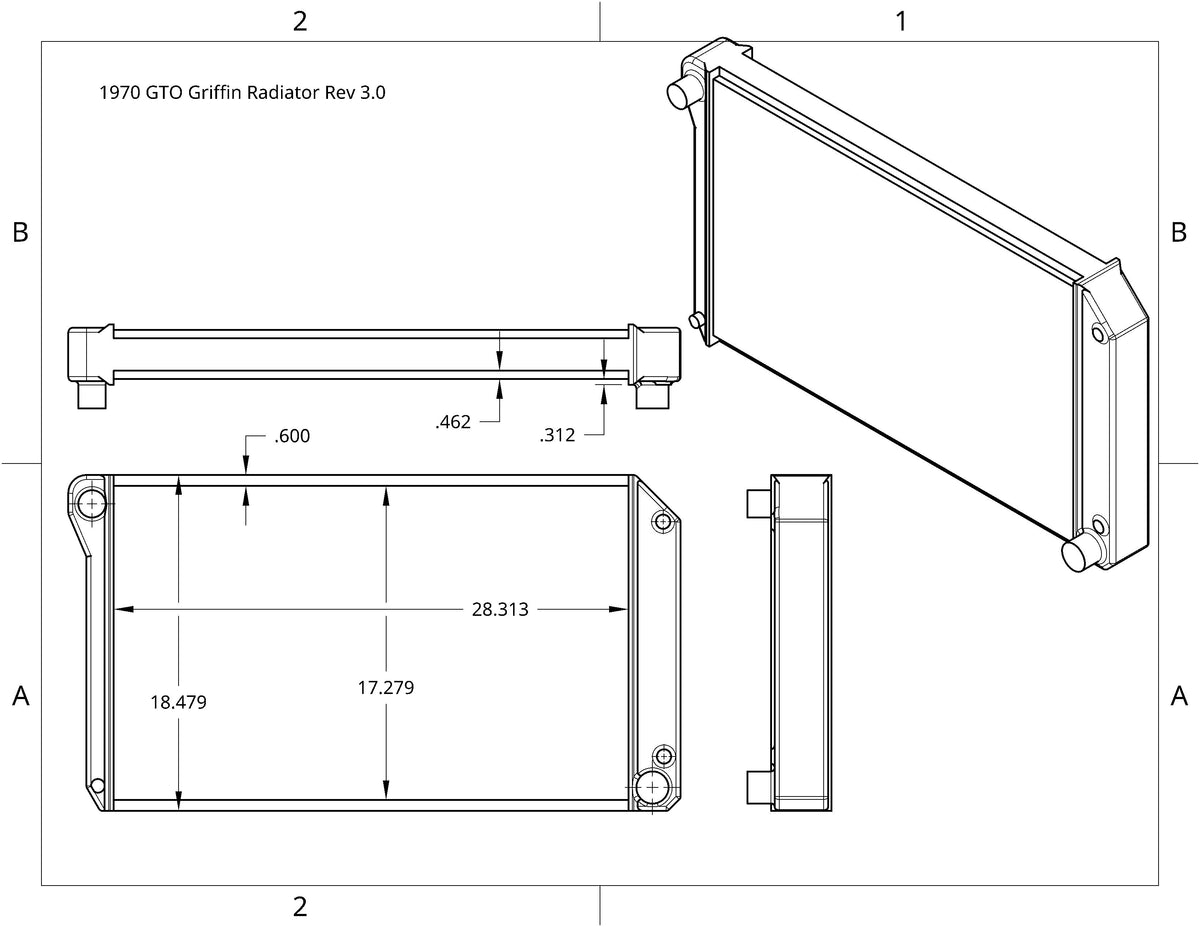

• Designed specifically for the 28.3" x 17.27" core Griffin radiator
• Accommodates 14" fans, inquire for different fans not listed
• Available in powder coated or raw aluminum finish
  • Raw Aluminum does have witness marks that can be cleaned with Scotch Brite, or a Magic Eraser

• Precision CNC-cut from aircraft-grade aluminum
• Made in the USA

Note: This is an aftermarket shroud designed to work with the Griffin 28.3" core radiator. It is not manufactured by Griffin Radiators. Fans and installation accessories sold separately. Lead time for Raw Aluminum is around one week. If Powder Coated is out of stock, please order, as we do not replace stock without an existing order, lead time is two weeks.

Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.

See our Radiator Fan Shroud Installation Guide for step-by-step instructions.
