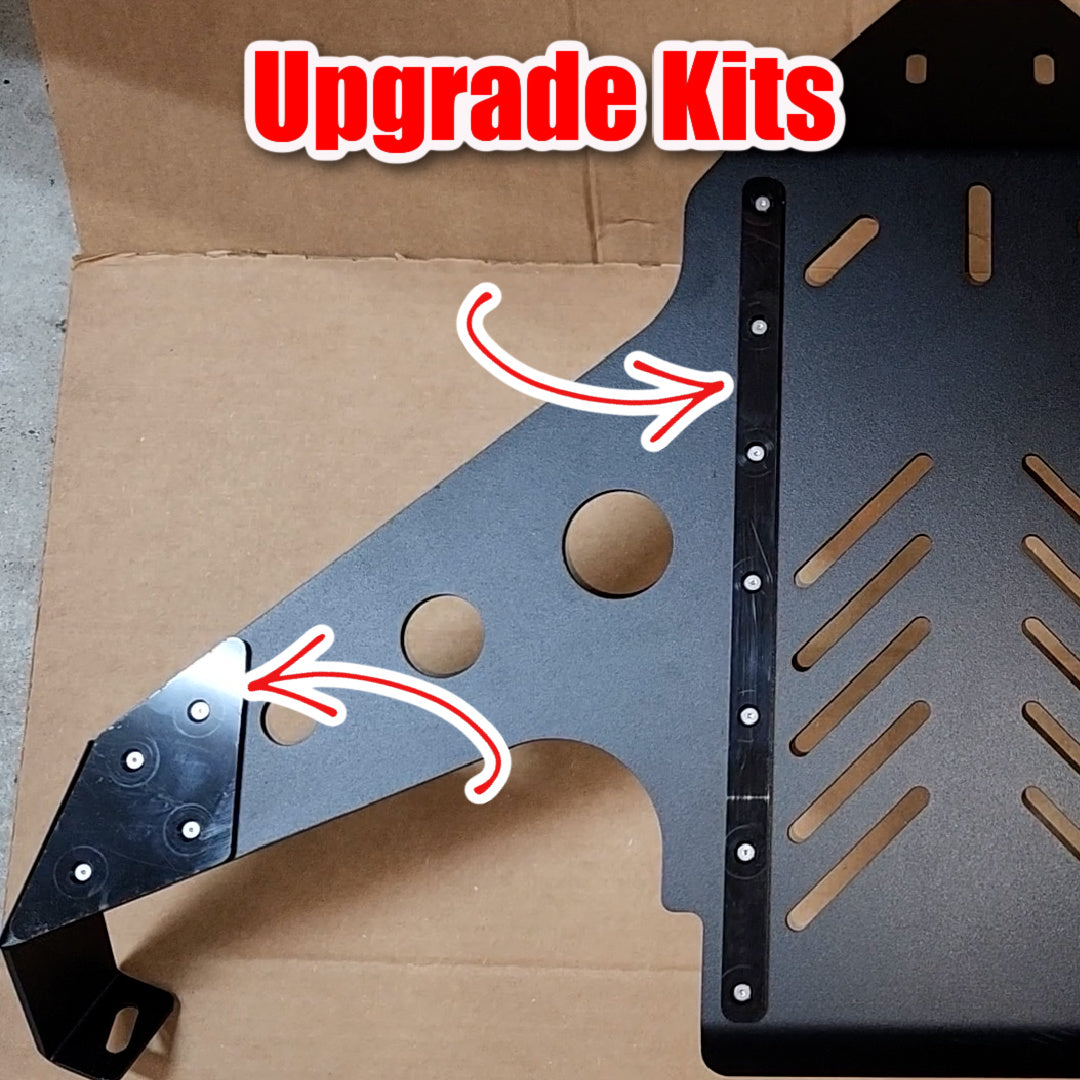

Upgrade your Oil Pan Protection Plate from Stage 1 to Stage 2, or Stage 3, the below kits will get you there. Each kit comes with a steel drill bit guide plate, and one set of replaceable delrin pads or rails. Fasteners, Taps, and Drill bits are sold separately, links are below.
Kit Details;

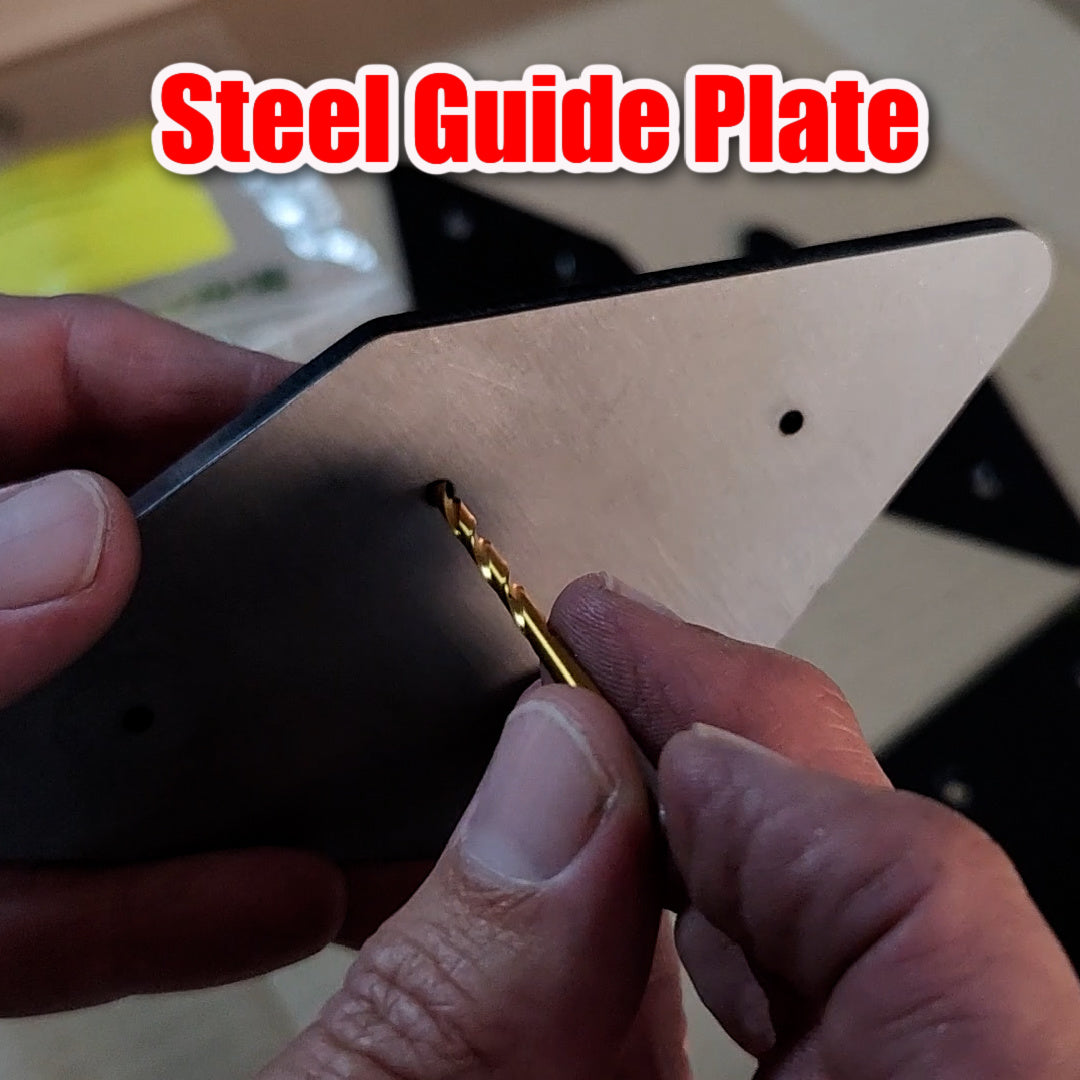

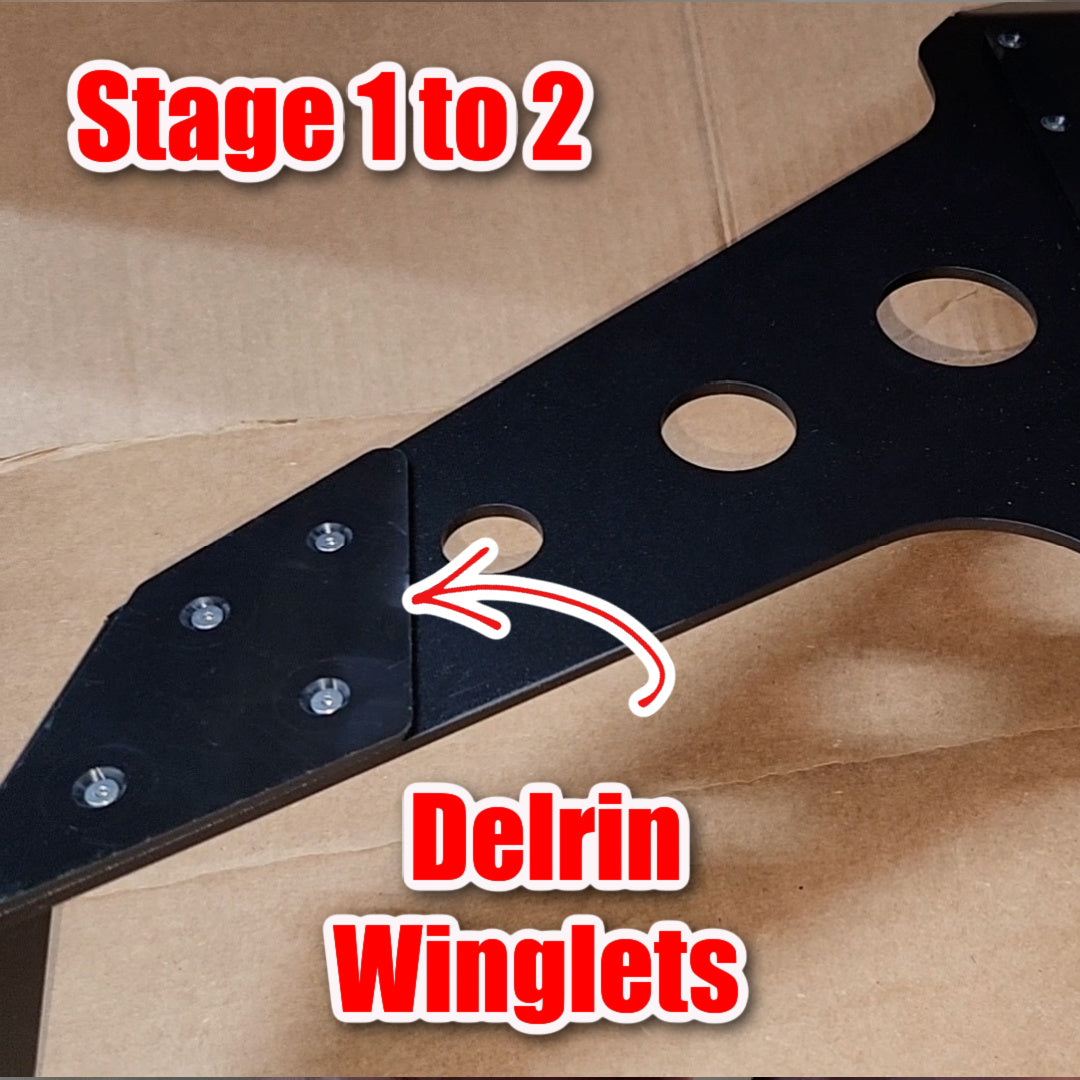

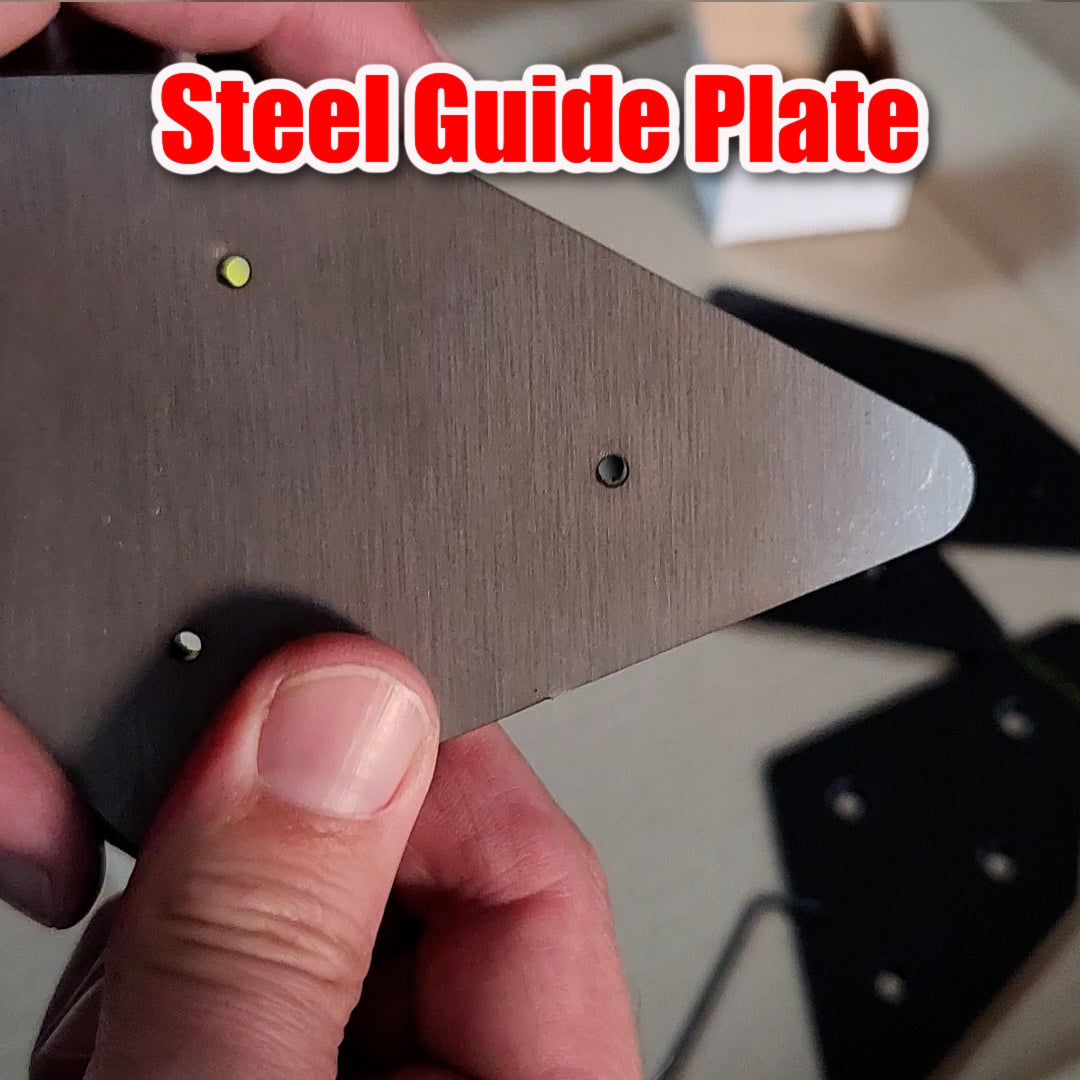

Stage 1 to Stage 2 kit contains one steel plate template with .1036" diameter guide holes, and two Delrin Pads, one left, and one right. The same steel plate can be used for both sides, just turn it over. Please see the end of the attached video for how I did it.

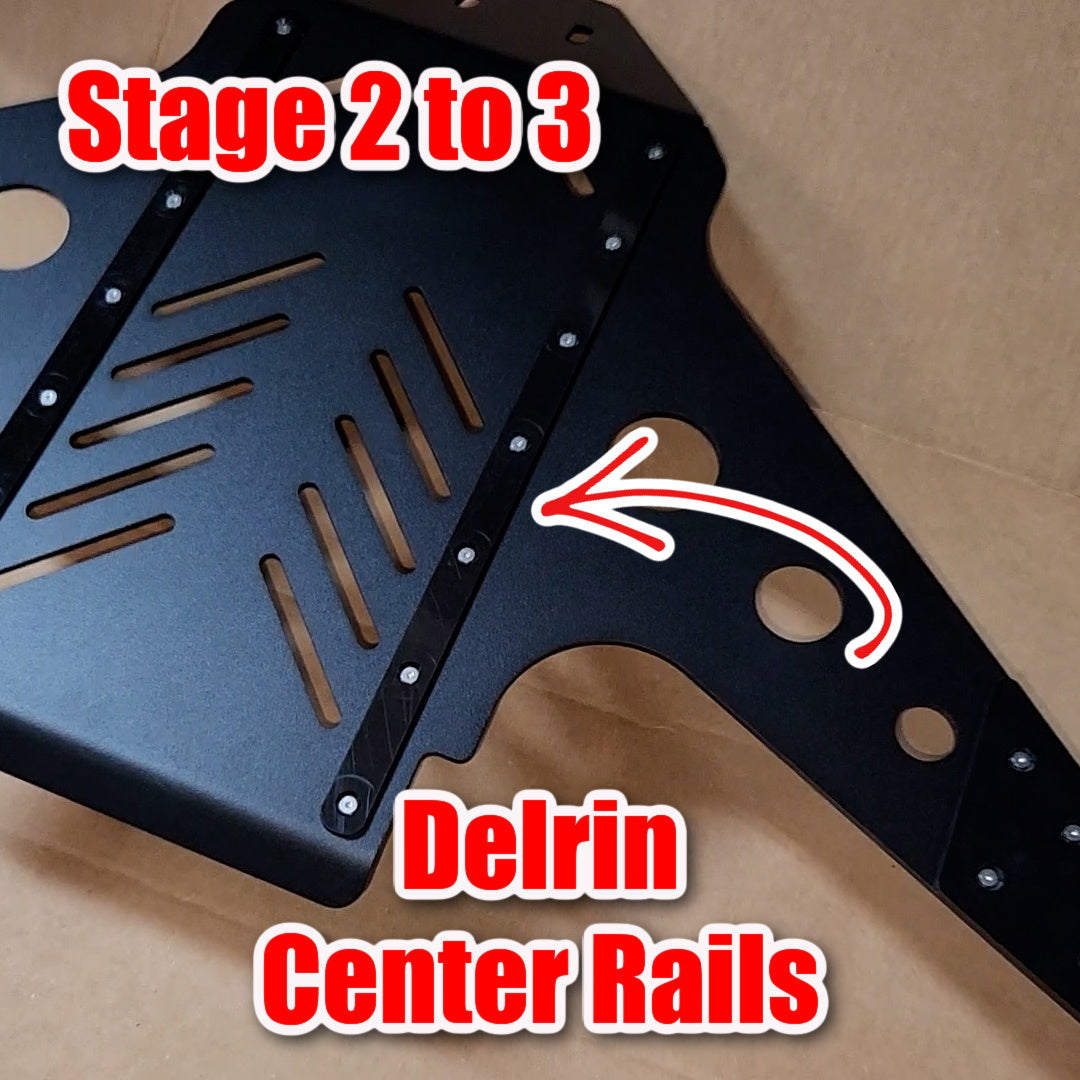

Stage 2 to Stage 3 contains one straight steel rail with .1036" diameter guide holes, and two Replaceable Delrin Rails.

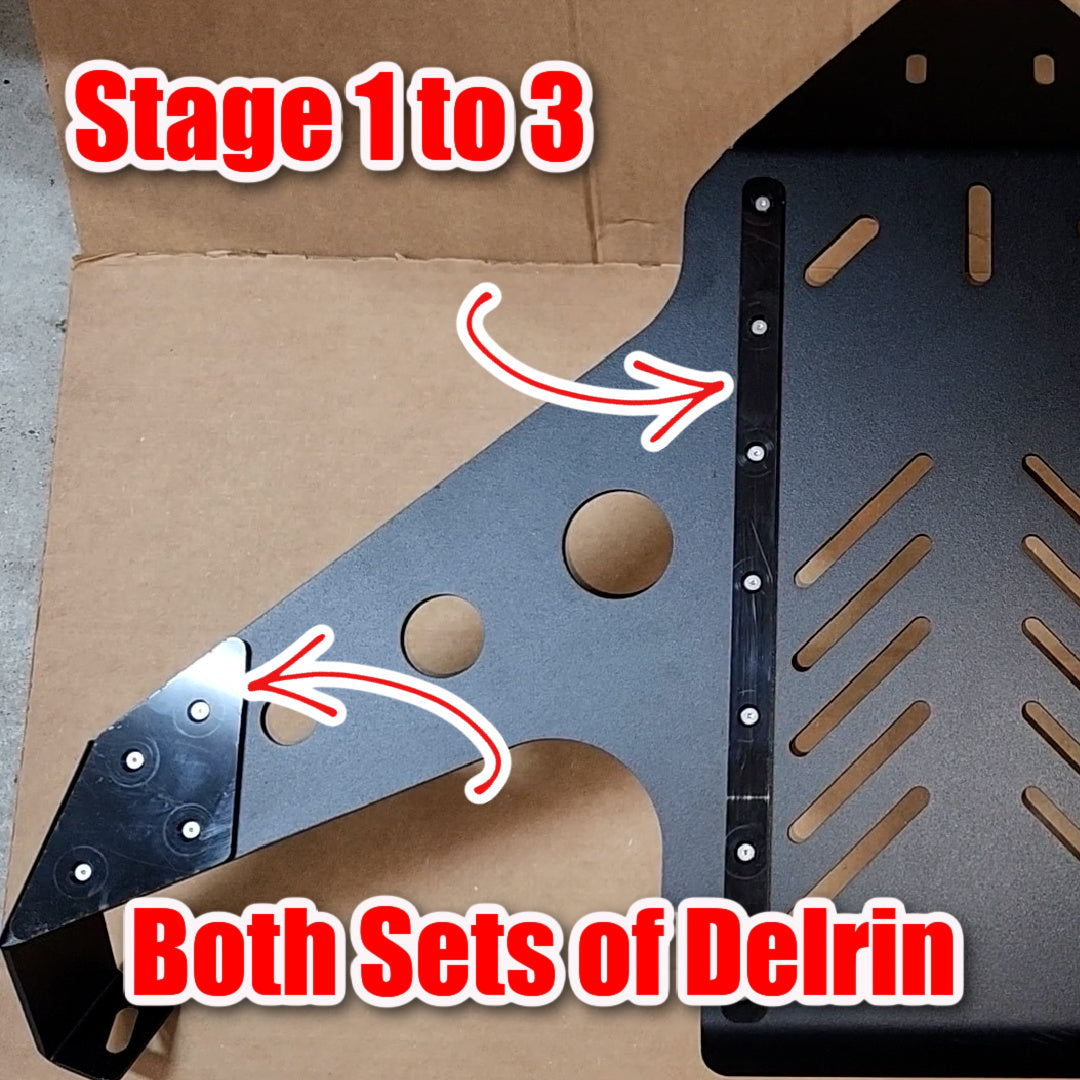

Stage 1 to Stage 3 contains both of the above kits.
All orders are manufactured, then drop shipped from SendCutSend directly to you. Lead time is about a week to ship.
Required Hardware; click on the below links
One Box of 6-32 Under Cut Socket Head Fasteners, from McMaster Carr
Set of Three 6-32 Taps
36 Gauge Drill bit for tapped holes (I'd order Three)
Questions and Suggestions;
If you need the design modified slightly or have any questions, please email Mike;
fastmontysgarage@gmail.com
Don't forget to check out Monty's Discounted Parts and Blems, which may have working shrouds with minor Blemishes.
