Extended Oil Pan Skid Plate for Scatter Shield-Equipped 1964-1972 GM A-Body – Stage 3 Delrin Pads | Fast Monty's Garage
Extended Oil Pan Skid Plate for Scatter Shield-Equipped 1964-1972 GM A-Body – Stage 3 Delrin Pads | Fast Monty's Garage
Couldn't load pickup availability

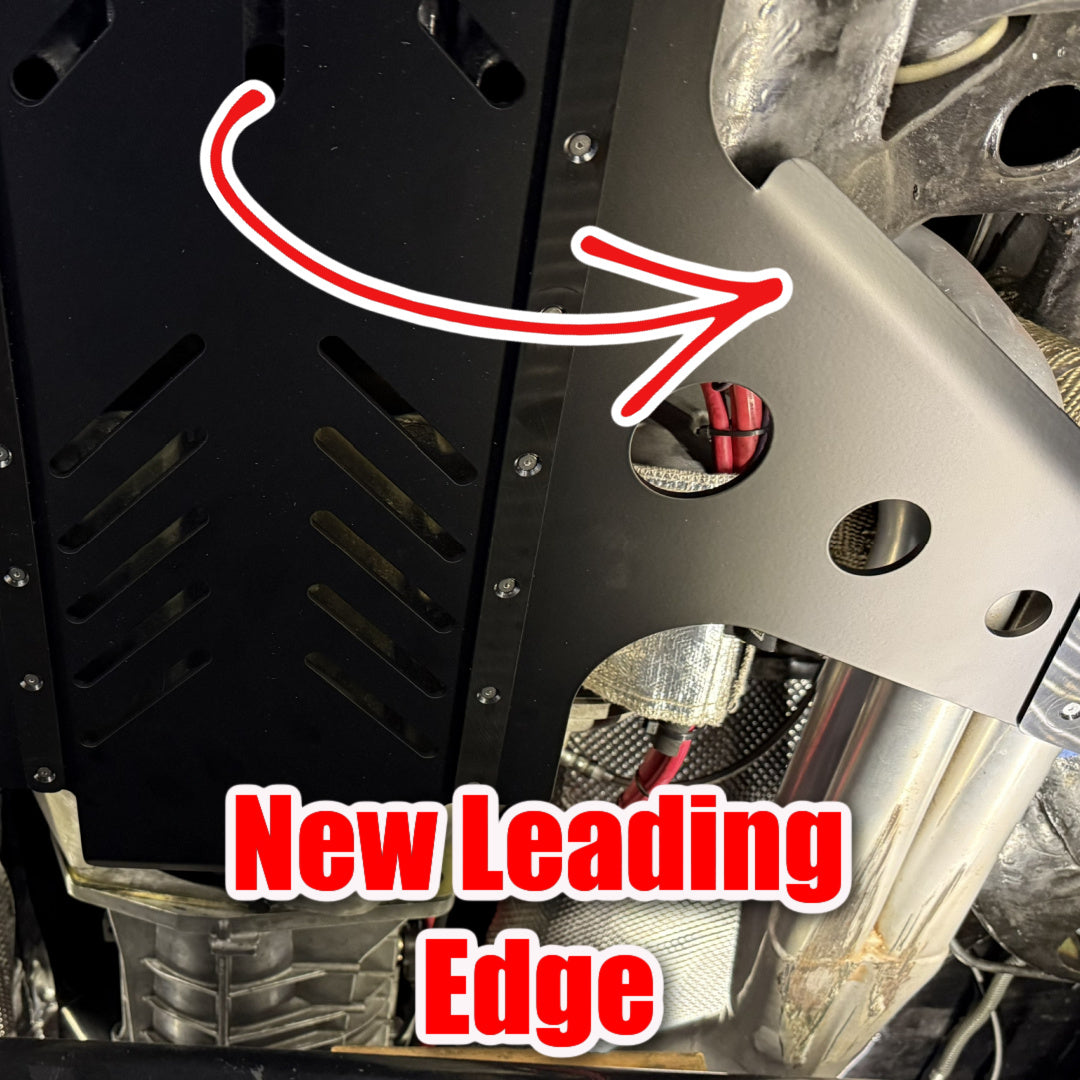

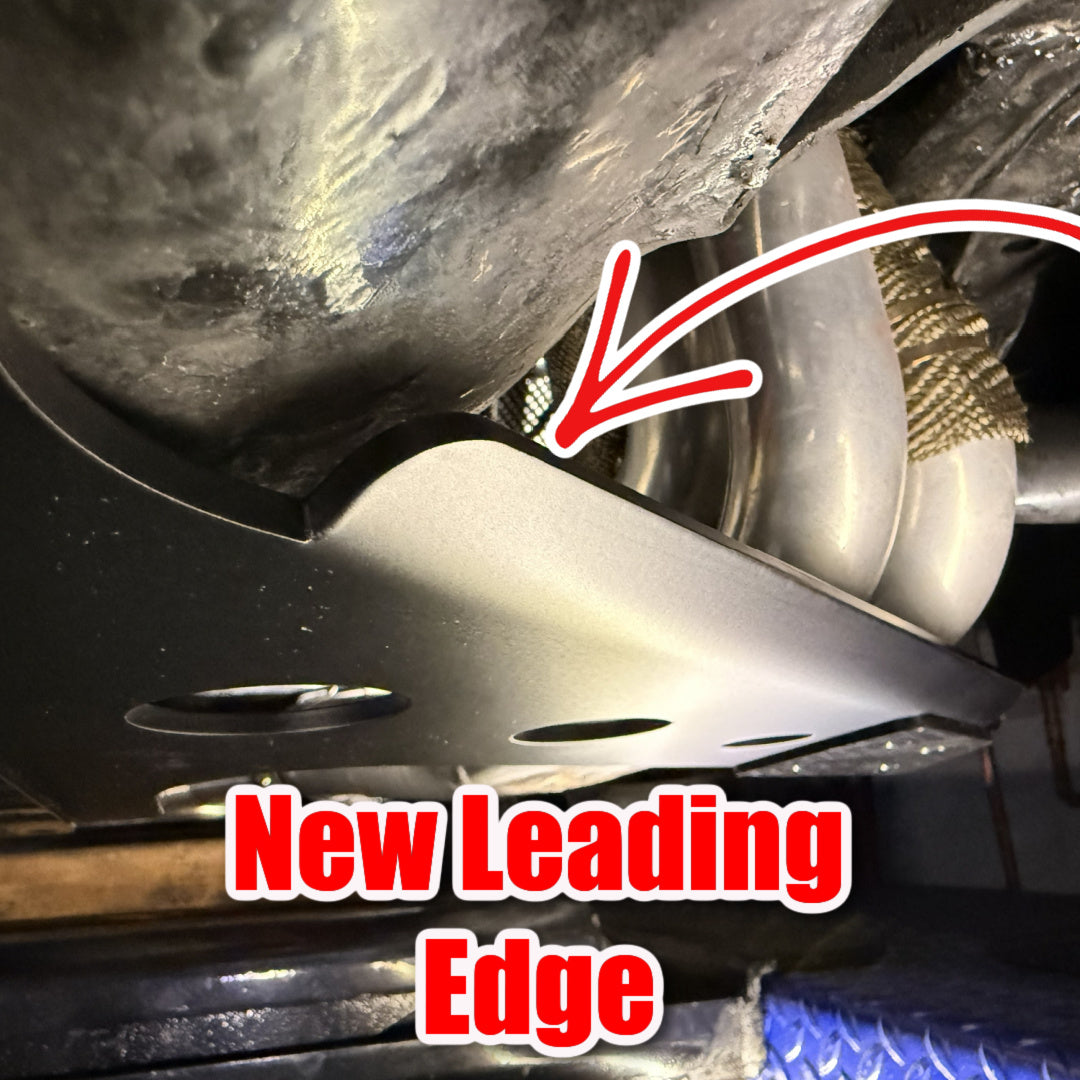

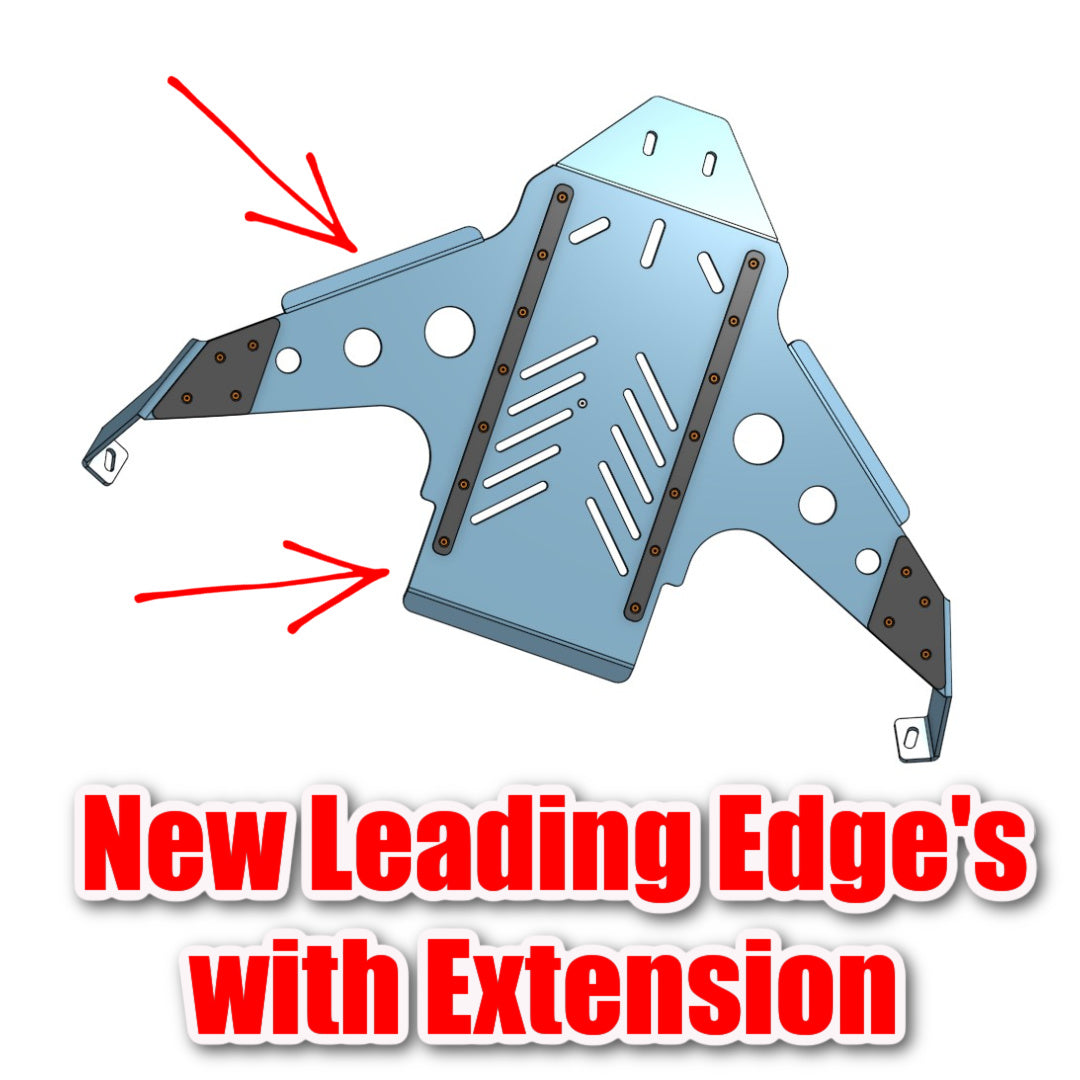

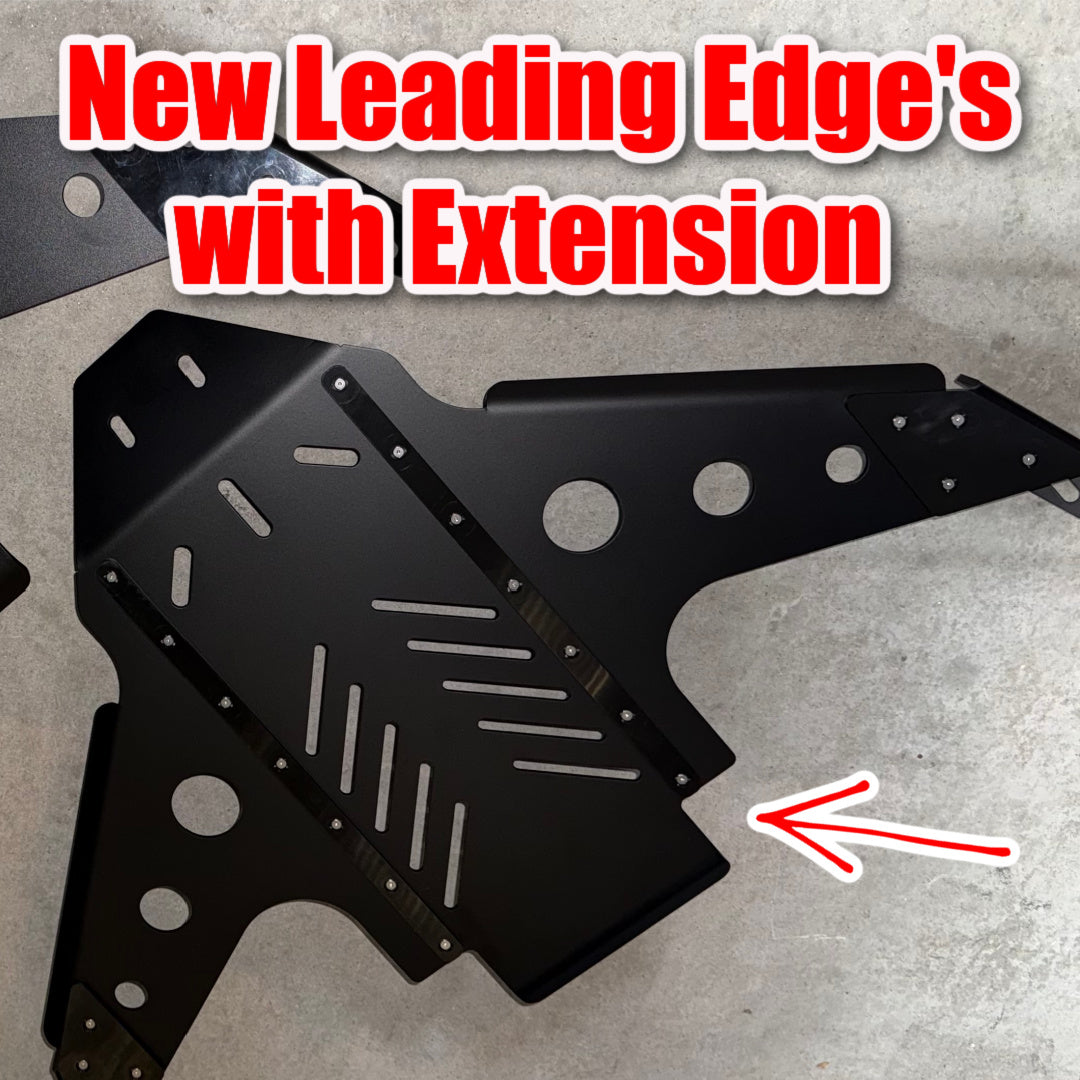

If your classic GM A-Body is running a scatter shield and sits extremely low, standard skid plates won't cut it — they don't reach far enough. Fast Monty's Stage 3 Extended Oil Pan Skid Plate is specifically designed to cover vehicles equipped with a scatter shield, with an extended footprint in 3/16" steel, tapped holes, and replaceable Delrin pads to handle the punishment of speed bumps, dips, and road debris.
Why the Extended Plate?

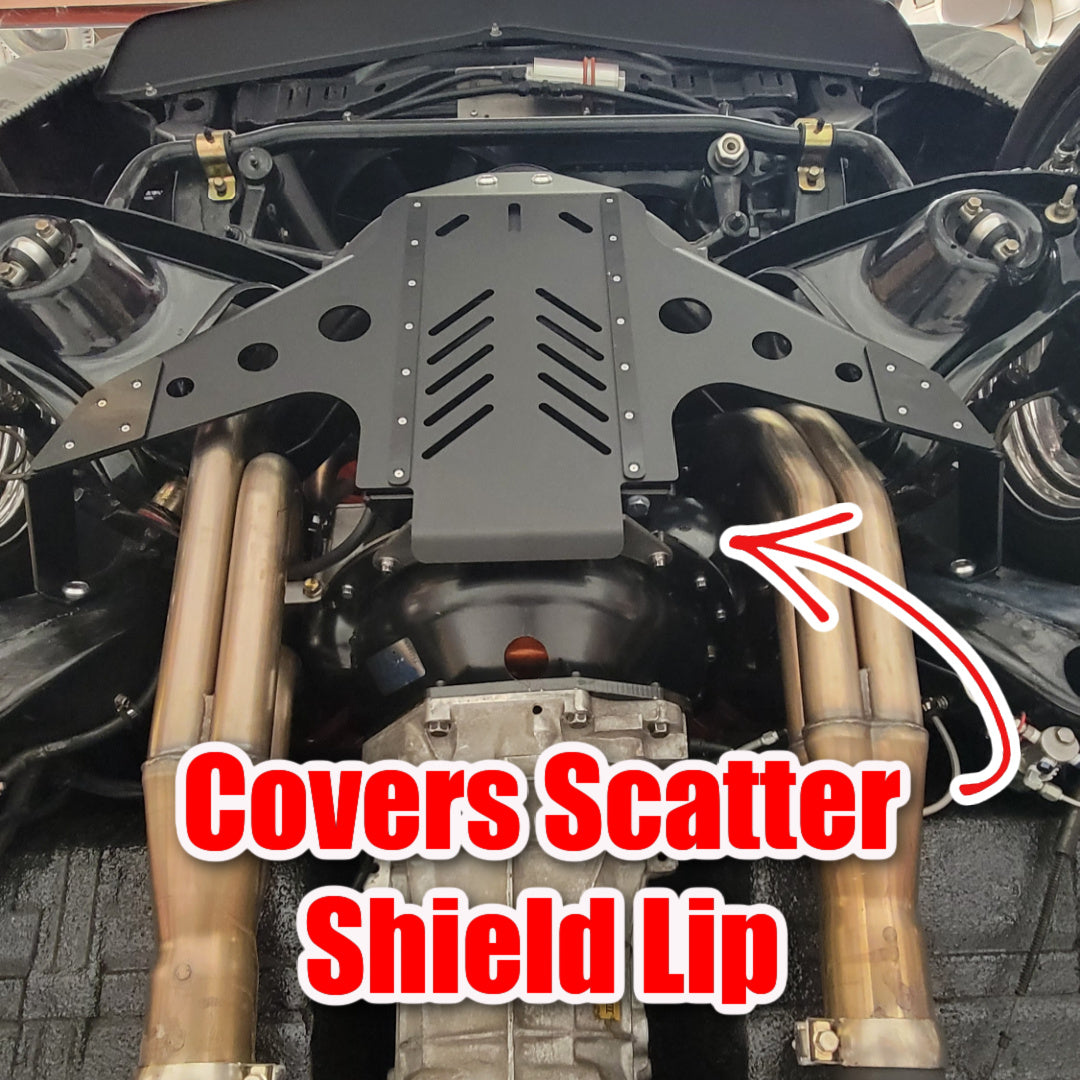

A scatter shield (bellhousing safety shield) adds bulk around the transmission/bellhousing area that a standard-length skid plate leaves exposed. This extended version closes that gap, giving you full coverage from the oil pan through the scatter shield zone — critical protection for any performance or race-prepped A-Body that sees street use.
Compatible Vehicles (1964–1972):
- Pontiac GTO, LeMans, Tempest
- Chevrolet Chevelle, Malibu, El Camino
- Oldsmobile Cutlass, 442
- Buick Skylark, GS
Key Features:
- Extended length to cover scatter shield-equipped drivetrains — the key difference from Stage 3 standard
- 3/16" steel construction — maximum protection for extreme low builds
- Tapped holes for replaceable Delrin pads — absorbs impact on speed bumps and protects the steel plate from wear
- One set of Delrin pads included with every order
- Available in Raw Steel or Powder Coated finish (we'll contact you after ordering to confirm your color choice — Textured Black is Monty's favorite)
- Made in the USA — manufactured and drop-shipped from SendCutSend, typically ships within one to two weeks
Not sure which stage you need?
- Stock or mild drop, no scatter shield — Stage 1 Standard Skid Plate
- Lowered, no scatter shield — Stage 2 Skid Plate
- Extremely lowered, no scatter shield — Stage 3 Standard Skid Plate
- Extremely lowered with scatter shield — you're in the right place
Installation Instructions:
Watch the YouTube installation video
Required Hardware:
- Twenty Two 6-32 Undercut Socket Head Fasteners (McMaster-Carr)
- Four 3/8-16 (1.25" length) Grade 8 bolts with washers and lock washers
Recommended Tools:
- Nut Rivet Tool and Riv Nut Kit (Amazon)
- 17/32" Drill Bit for 3/8-16 Nut Rivet (Amazon)
- Alternative: "Christmas Tree" stepped drill bit with a 35/64" step
Questions or Custom Modifications?
Email Mike directly: fastmontysgarage@gmail.com
Also check out Monty's Discounted Parts & Blems for working shrouds with minor cosmetic blemishes at a discount.
