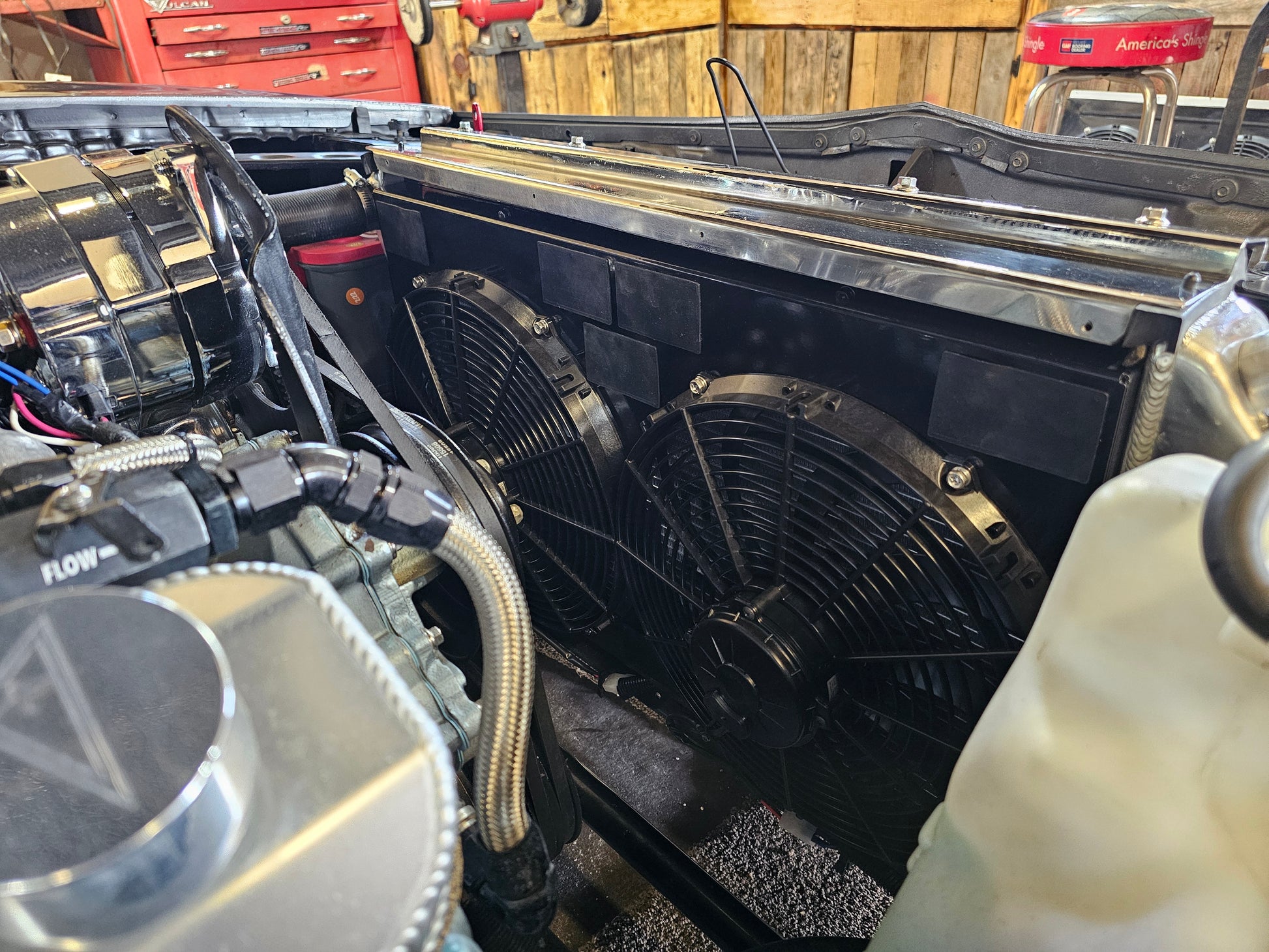

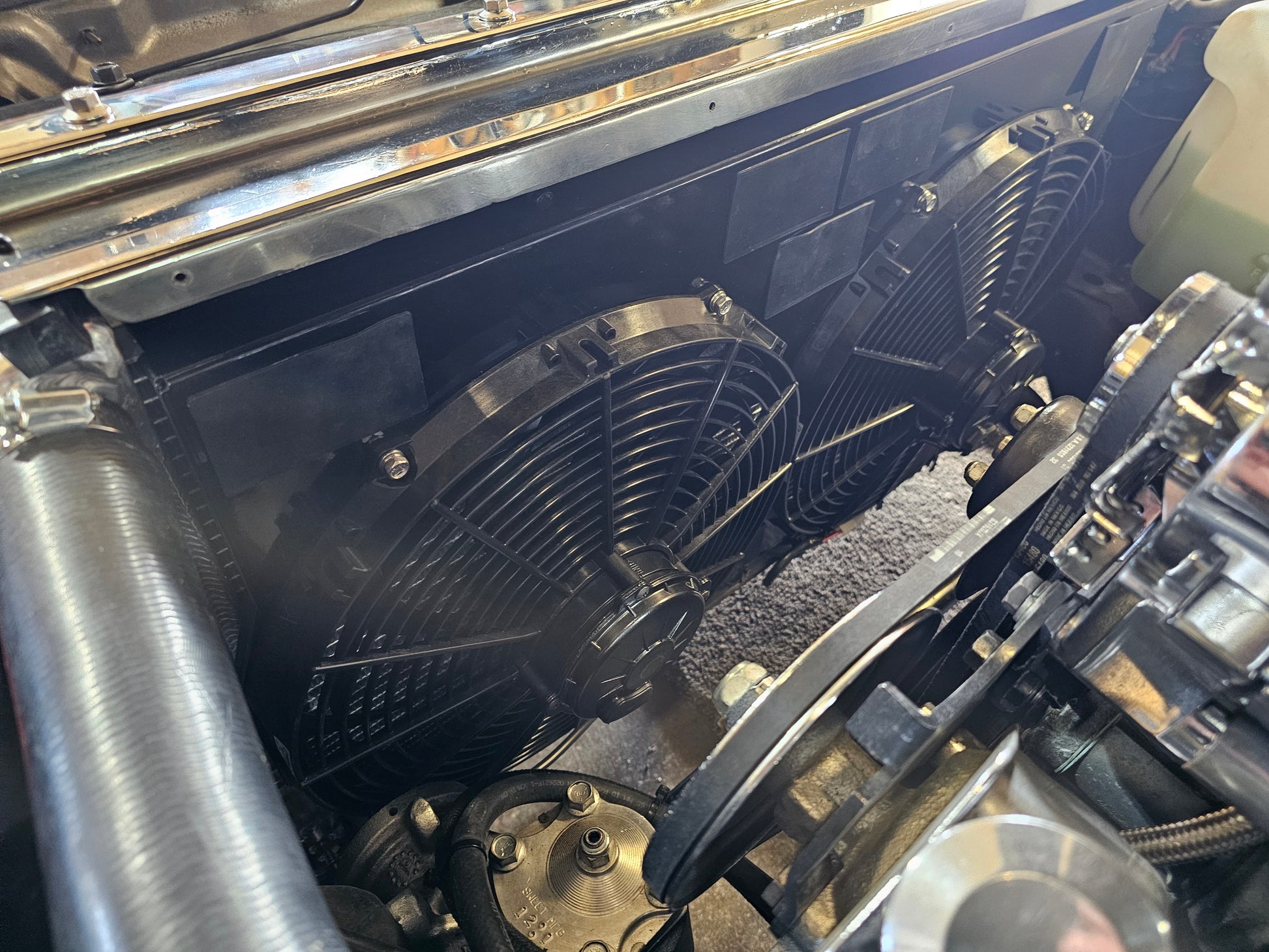

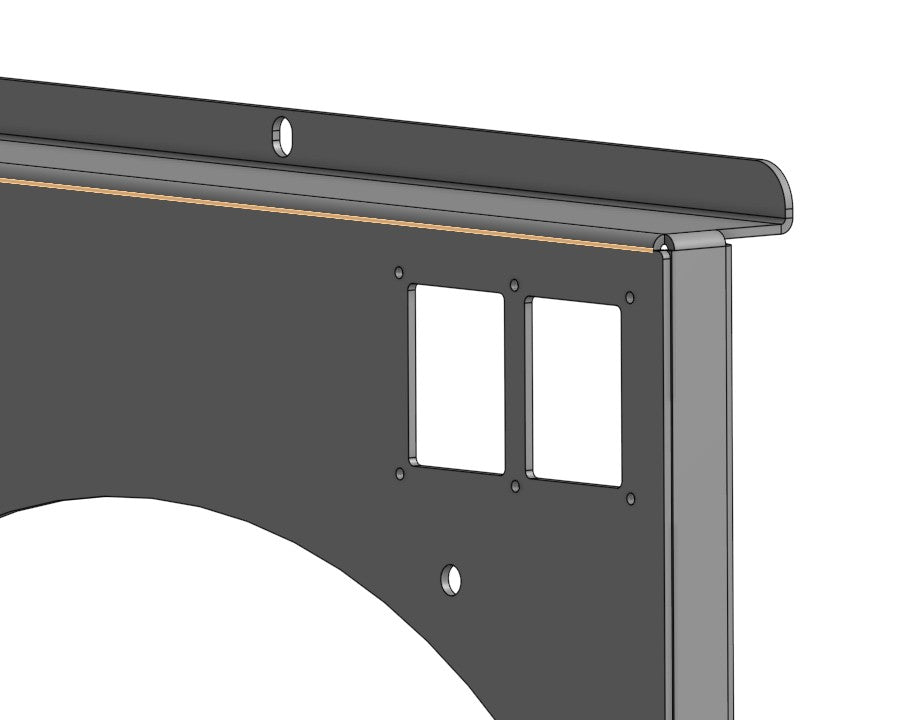

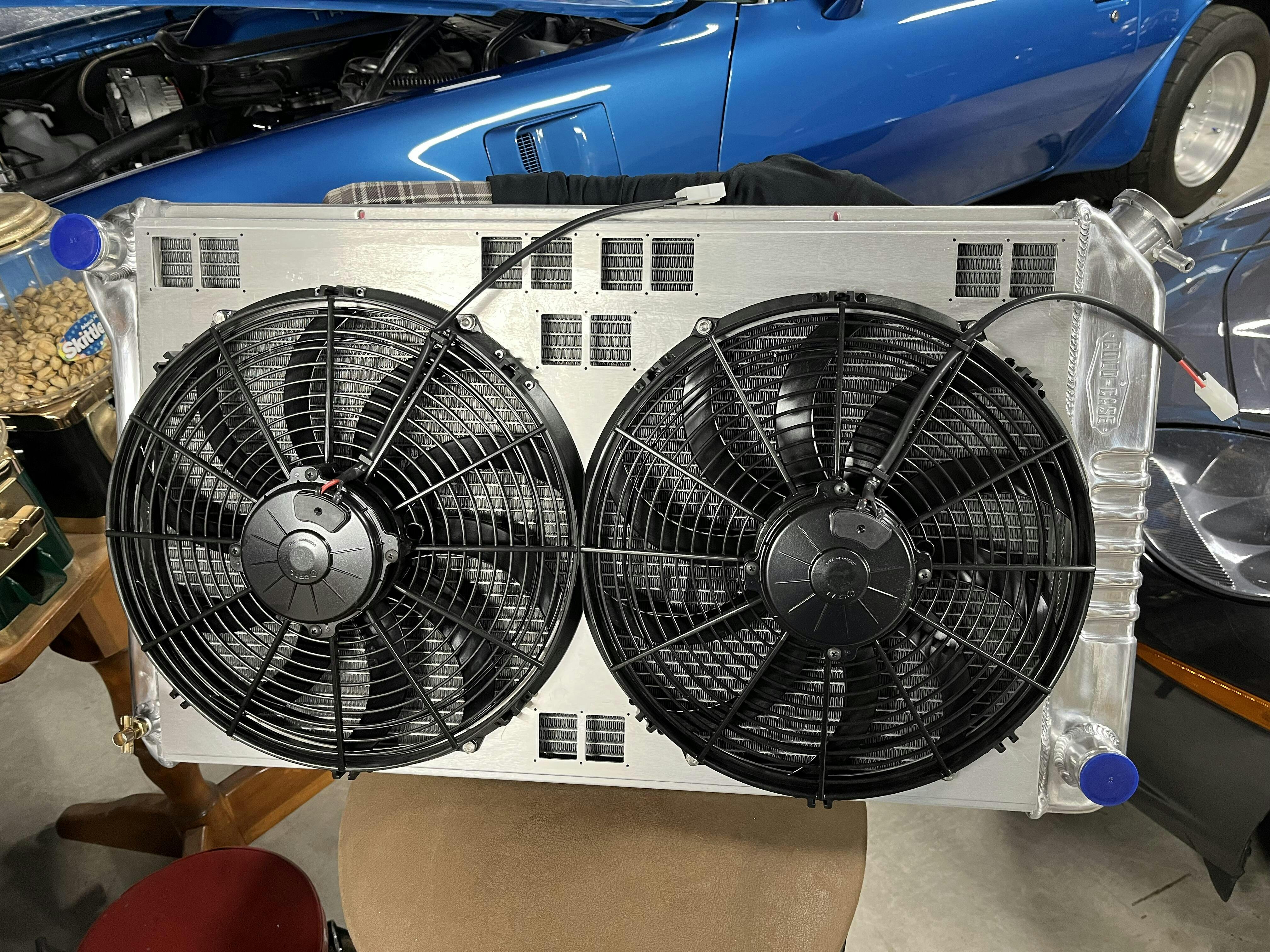

This shroud is designed for 1970 through 1981 Pontiac Firebird's, and LS Camaro's using Cold Case radiator core's GPF18 or CHC557A to mount Spal 14" Puller fan part #30102042 (CFM output is 1864 per fan), OR Proform 14" Brushless fan part #67035 (featuring Soft Start) and Six Rubber flap doors, Spal part #30130012. Custom Designed by Monty, manufactured and powder coated by SendCutSend. If you know, you know.

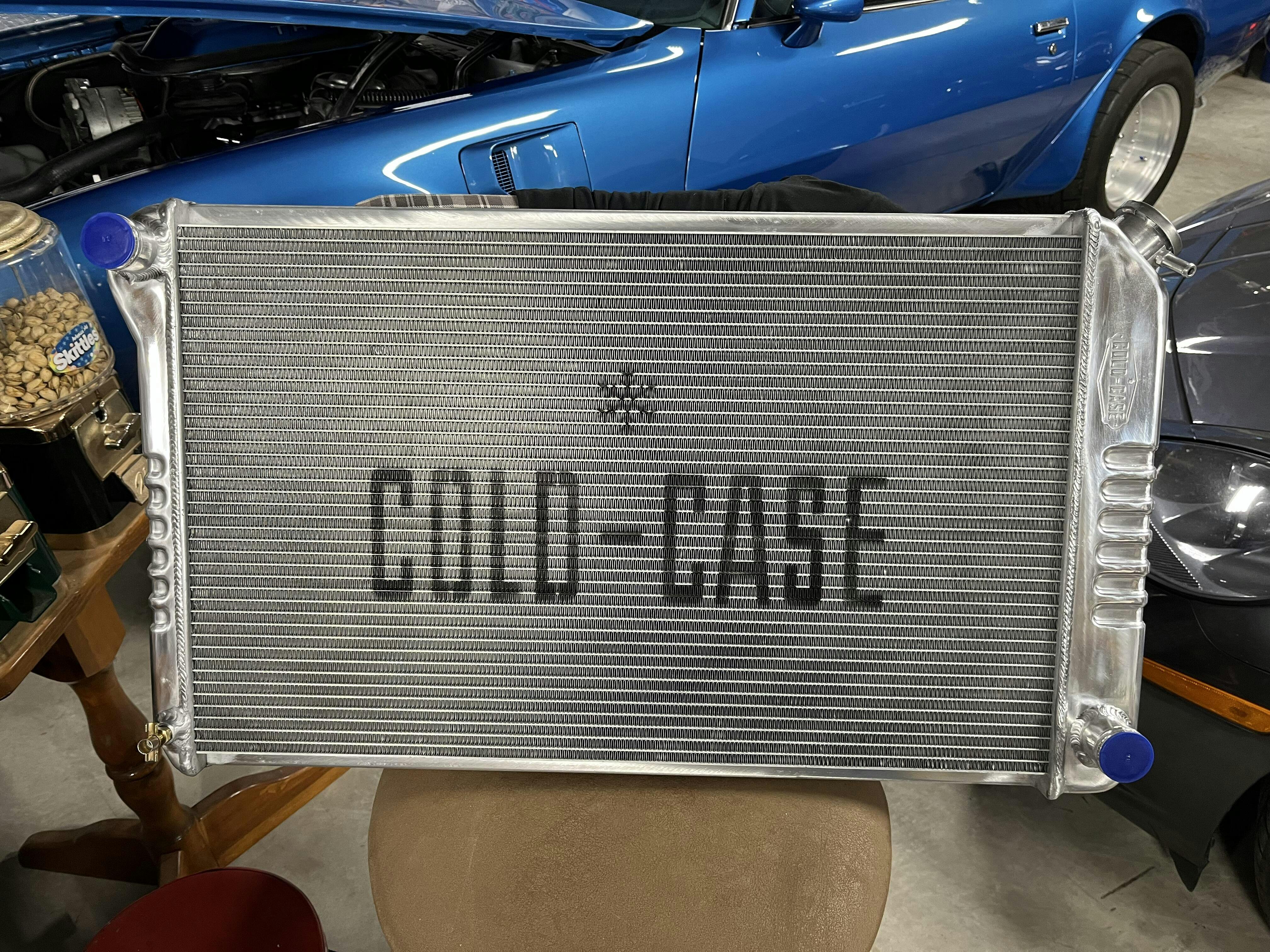

Designed to fit Cold Case Radiator part #'s; GPF18, GPF18A, GPF18B, and LS Swap CHC557A

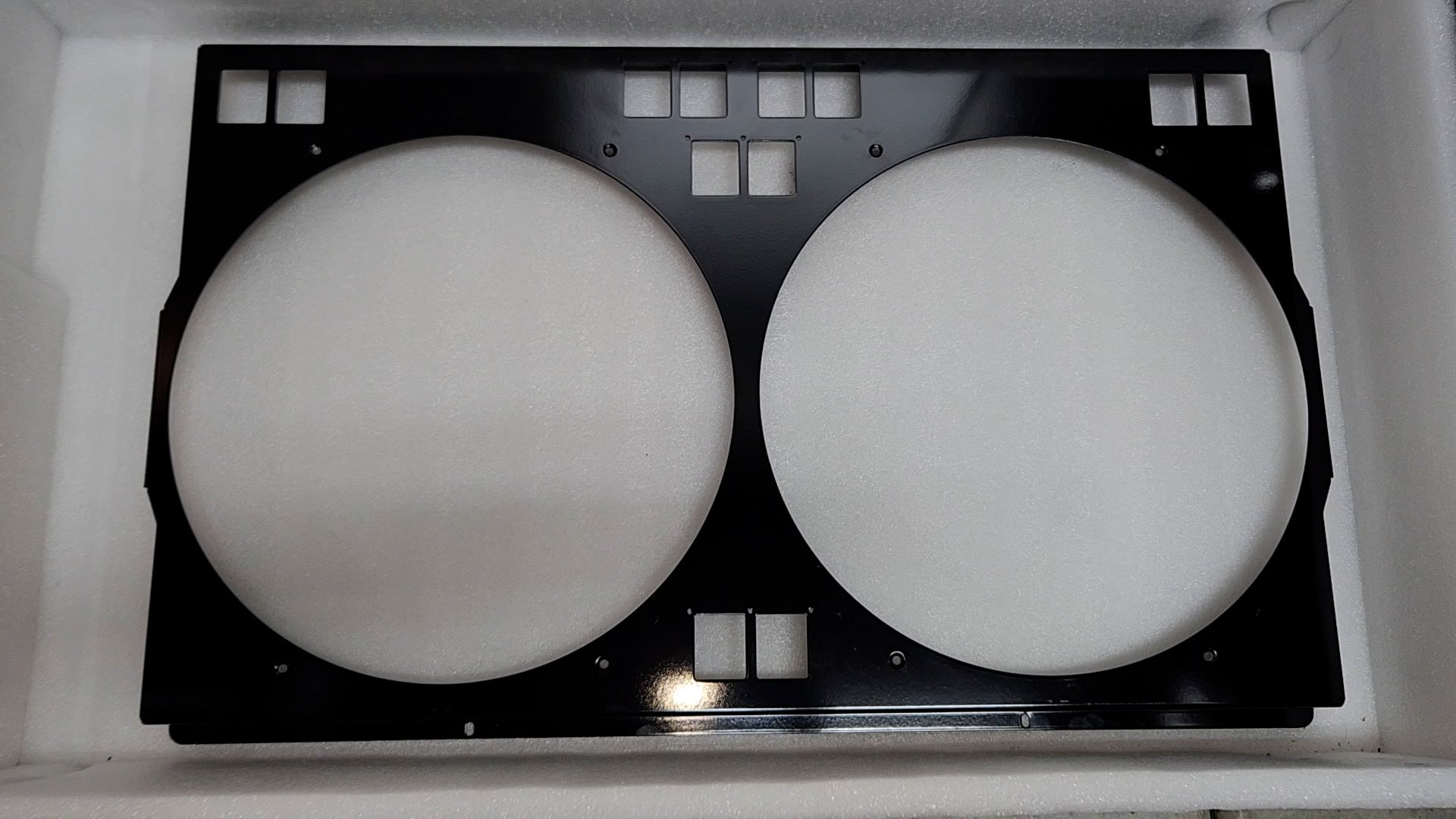

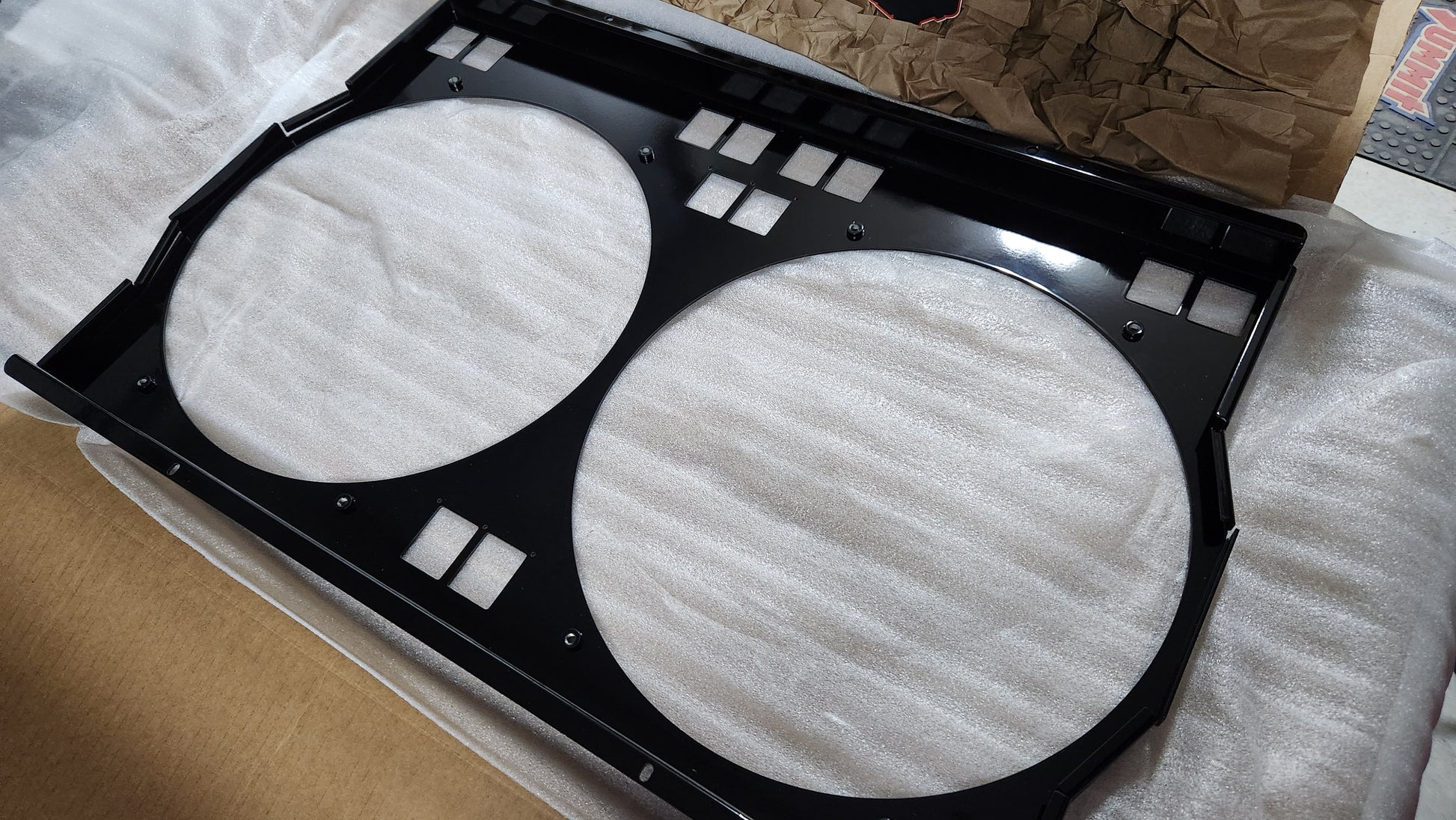

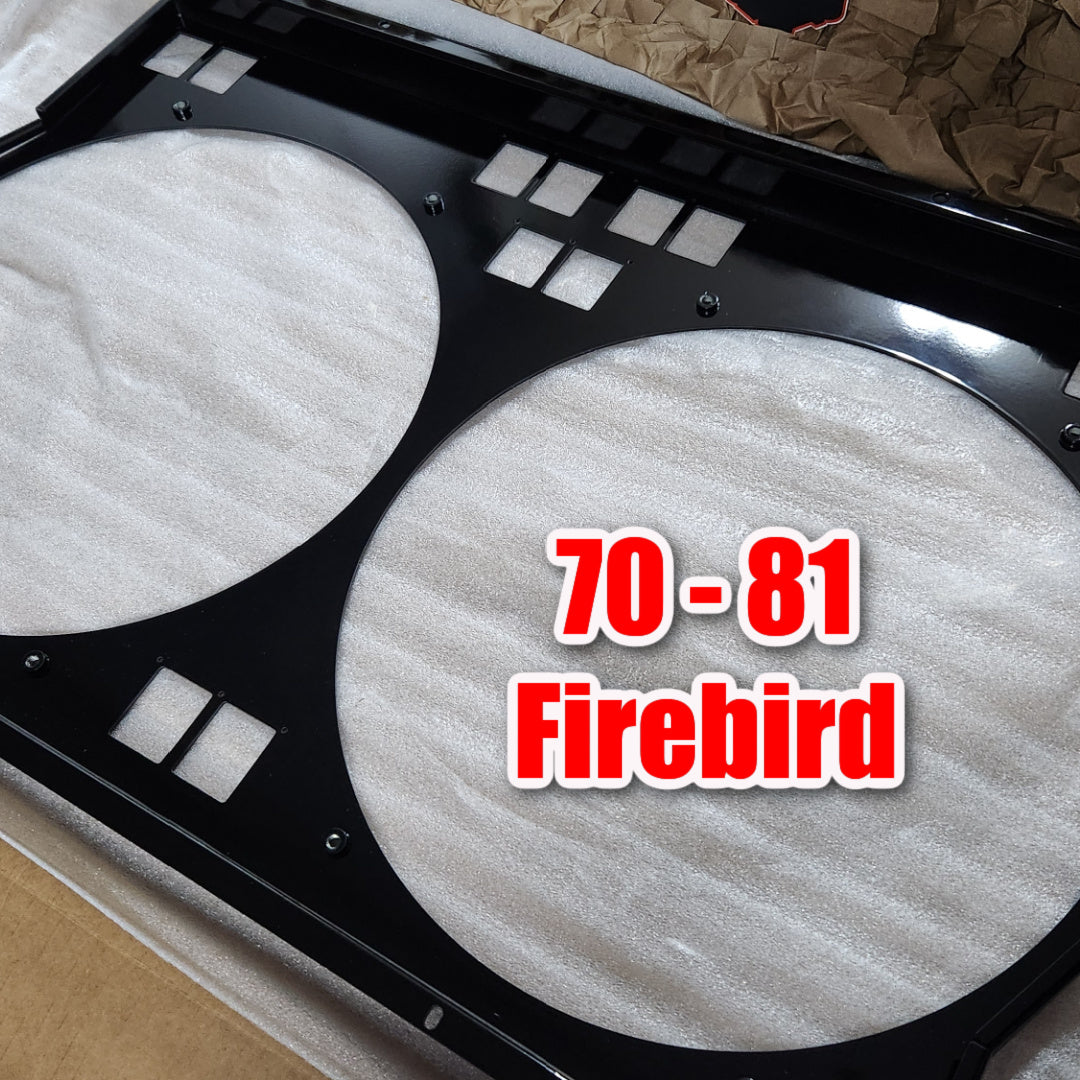

The Powder Coated Shroud includes 10 Stainless Steel 6mm Hex/Phillips fasteners with lock washer, and standard washer. Eight for fan mounting and two for optional mounting into the radiator upper support, so they're all matching. (Fans and Flap Doors are NOT Included) Please do an internet search for the flap door part number, pricing will range from $1.49 to $4.00 each.
If the Powder Coated version is on backorder, lead time is around 2 weeks to ship. (Please order if out of stock. This item is not automatically re-stocked without pre-existing orders)

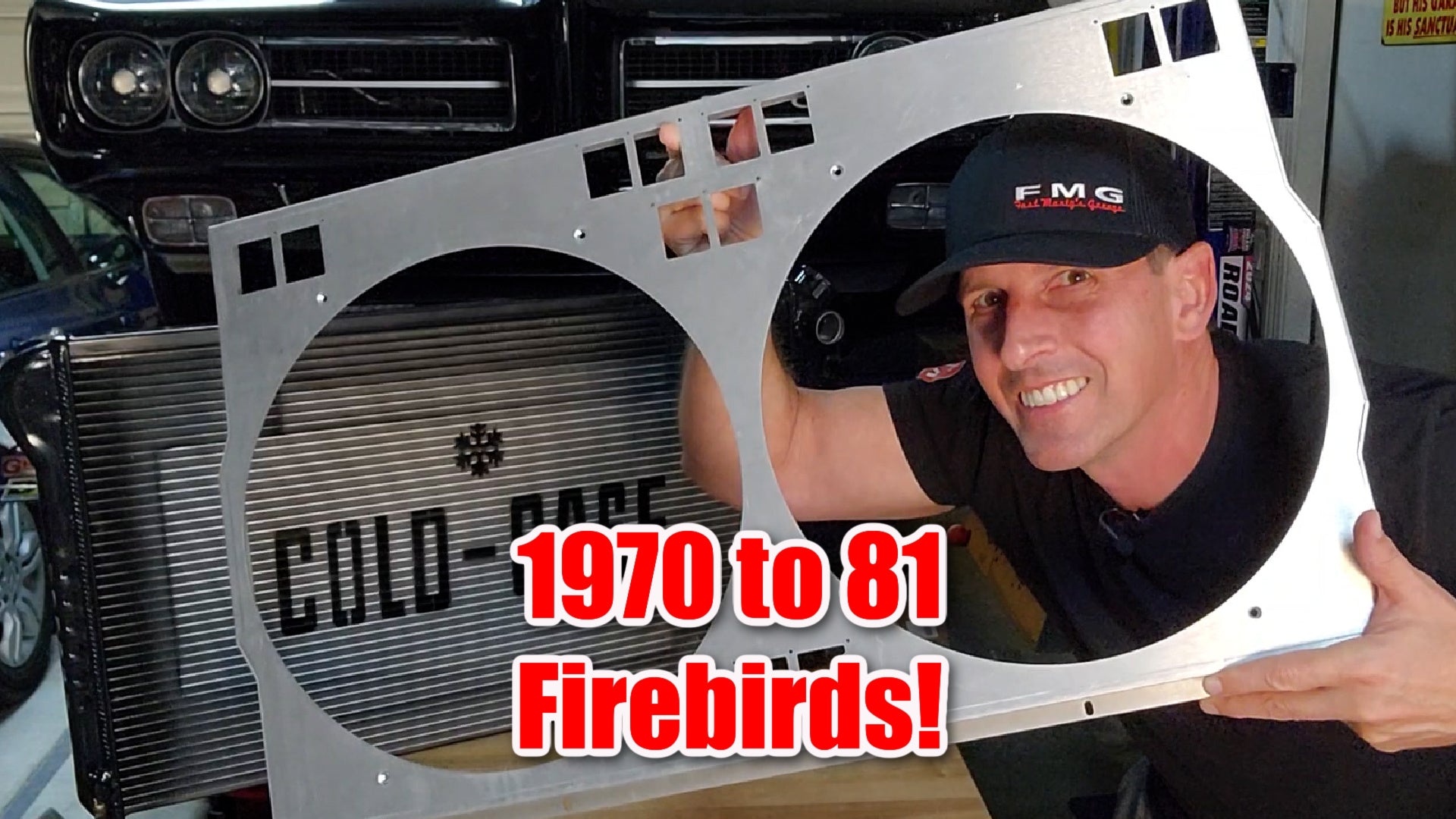

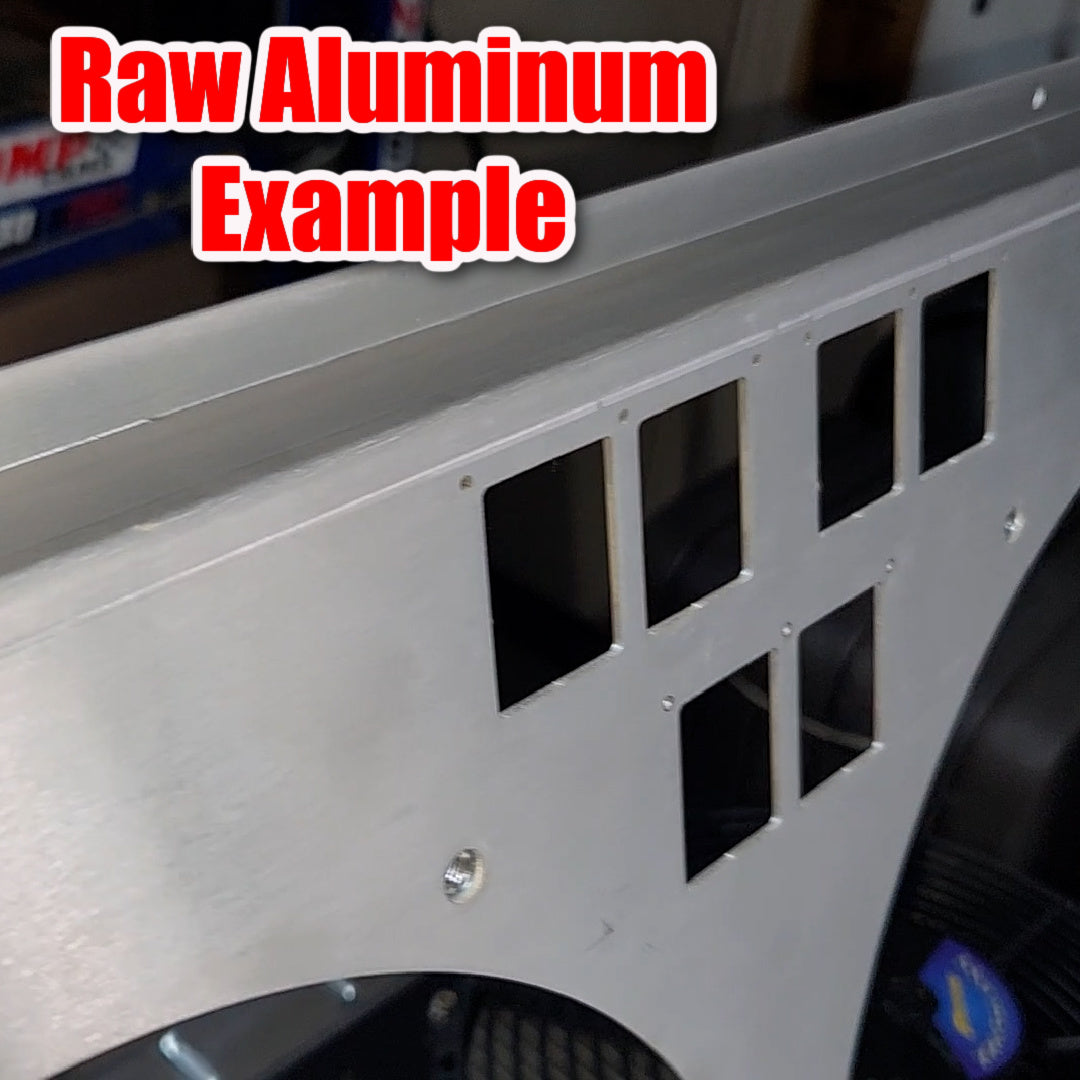

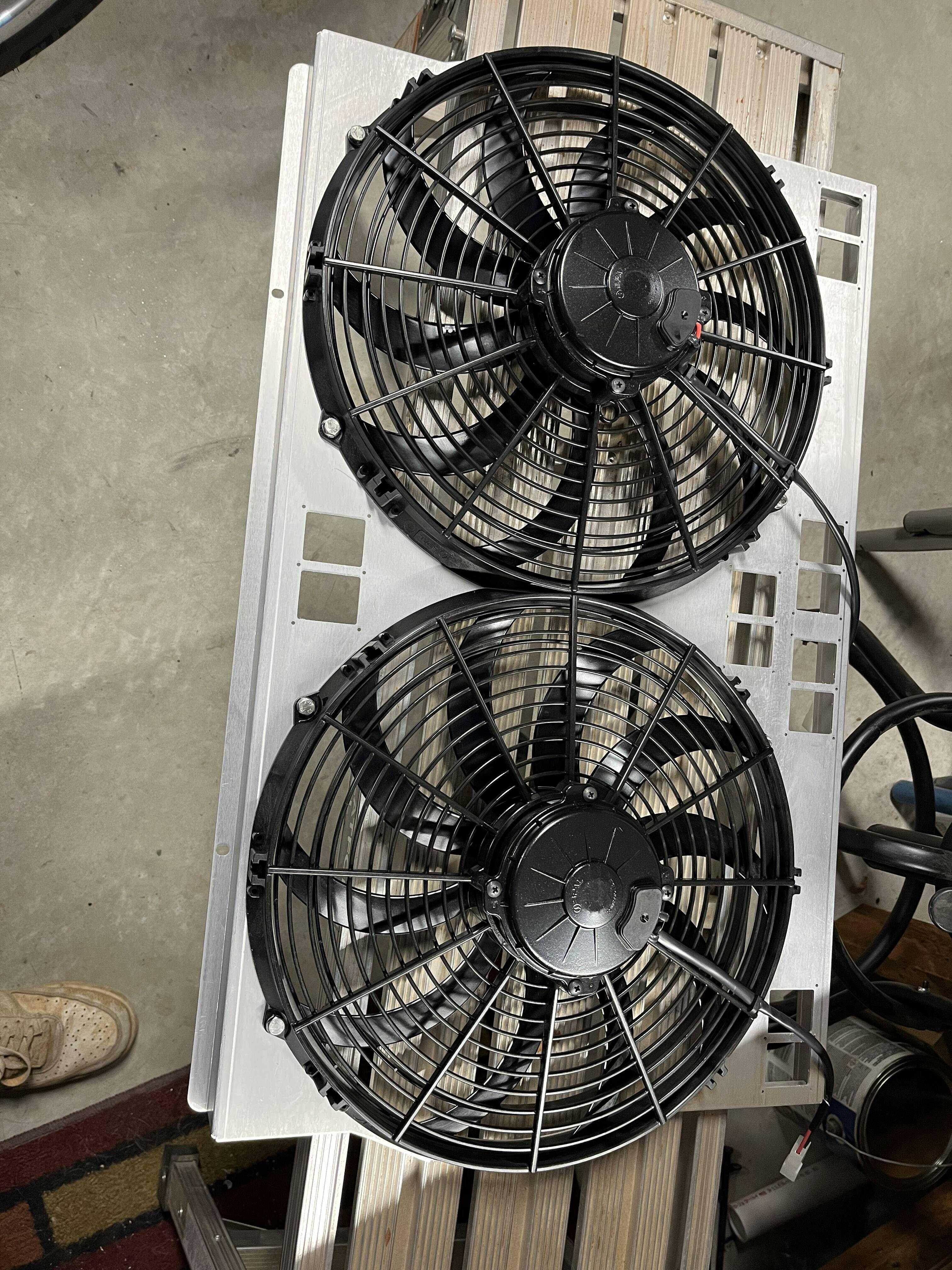

The Raw Aluminum version is manufactured and drop shipped from SendCutSend, which does NOT include the M6x1 fasteners. It will have witness marks near the bends, most of which can be removed with a Magic Eraser, or scuff the entire surface with Red Scotch Brite for a uniform look. Or course, painting is an option too.
Note: I recommend sourcing the Spal Pig Tail to connect to your Spal fans. Search the internet for Spal part #FR-PT
If you're looking for a Dual Fan wiring harness kit, there are several on the market, just make sure each relay is rated for 40 amps. Manufacturers include Spal, Painless Performance, Derale, Ron Davis, and American Autowire. (I personally have the Painless Performance kit, with 195 on, 185 off)
